Stamina 876 Owner's Manual

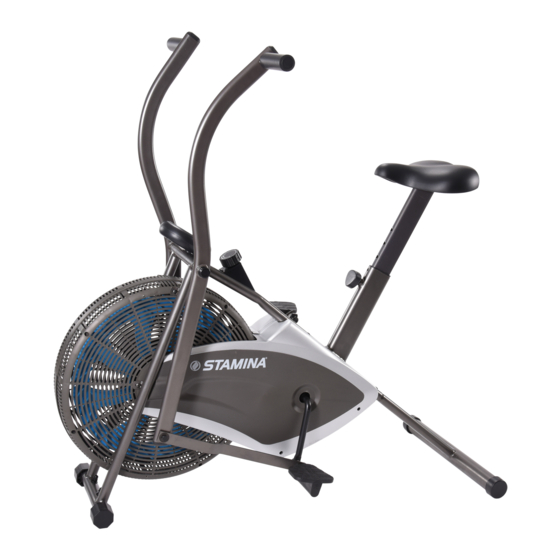

Air resistance bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual
Product May Vary Slightly From Pictured.
CAUTION:
Weight on this product should not exceed 250 lbs.
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springfield, MO 65803
www.staminaproducts.com
Customer Care
1 (800) 375-7520
WARNING
!
Exercise can present a
h e a l t h r i s k . C o n s u l t a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
d i s c o n t i n u e u s e o f t h i s
equipment. Serious bodily
i n j u r y c a n o c c u r i f t h i s
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
When calling for parts or
service, please specify
the following numbers :
Model#: 15-0876
S/N: _____________
STAMINA PRODUCTS
MADE IN CHINA
© 2019 Stamina Products, Inc.
2019, 05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 876 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stamina 876

Summary of Contents for Stamina 876

  • Page 1 Weight on this product should not exceed 250 lbs. This Product is Distributed Exclusively by STAMINA PRODUCTS MADE IN CHINA 2040 N Alliance Ave, Springfield, MO 65803 Customer Care © 2019 Stamina Products, Inc. 1 (800) 375-7520 2019, 05 www.staminaproducts.com...

  • Page 2: Table Of Contents

    21. The STAMINA® Air Resistance Bike 876 should not be used by persons weighing over 250 pounds. 22. The STAMINA® Air Resistance Bike 876 should be used by only one person at a time. 23. The STAMINA® Air Resistance Bike 876 is for consumer use only. It is not for use in public or semipublic facilities.
  • Page 3 1 (800) 375-7520 customer.care@staminaproducts.com Hi! From all of us here at Stamina Products, thank you for your purchase. We know that you have big fitness goals in mind and we are here to help you along. Call us, email us, or send us a message on Facebook. Be sure to contact us if you have any questions on your new product.

  • Page 4: Before You Begin

    BEFORE YOU BEGIN Thank you for choosing the STAMINA® Air calling for assistance. Resistance Bike 876. We take great pride in Read this manual carefully before using the producing this quality product and hope it will STAMINA® Air Resistance Bike 876.

  • Page 5: Equipment Warning, Caution & Notice Labels

    EQUIPMENT WARNING, CAUTION & NOTICE LABELS This chart is provided to help identify the warning, caution, and notice labels on the STAMINA® Air Resistance Bike 876. Please take a moment to familiarize yourself with all of the warning, caution, and notice labels.

  • Page 6: Hardware Identification Chart

    HARDWARE IDENTIFICATION CHART This chart is provided to help identify the hardware used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws.

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed.
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 4 Attach the SEAT(43) to the SEAT POST(4) with NYLOCK NUTS(M8x1.25)(61) and WASHERS(M8)(67). Insert the SEAT POST(4) into the MAIN FRAME(1) and lock in position with LOCKING KNOB(46). STEP 5 Slide the AXLE(36) through BUSHINGS(37) into the MAIN FRAME(1). Slide the two BUSHING WASHERS(38) onto both sides of the AXLE(36).
  • Page 9 ASSEMBLY INSTRUCTIONS IMPORTANT STUDY THE FOLLOWING ILLUSTRATION AND READ ALL OF STEP 8 “a” through “f” BEFORE ATTACHING PEDALS AND CONNECTING LINKAGES. STEP 6 NOTE: The RIGHT PEDAL(32) has an R marked on the bottom side of the pedal. The LEFT PEDAL(31) has an L marked on the bottom side of the pedal.

  • Page 10: Set Up Instructions

    SET UP INSTRUCTIONS Place the STAMINA® Air Resistance Bike 876 in the area where it will be used. It is recommended that the STAMINA® Air Resistance Bike 876 be placed on an equipment mat. The STAMINA® Air Resistance Bike 876 is approximately 46 inches long (max.) x 20.3 inches wide x 46.6 inches tall. (These dimensions may vary up to one inch.) An area 4 feet wide x 6 feet long is required for safe operation of...

  • Page 11: Operational Instructions

    OPERATIONAL INSTRUCTIONS USING THE FITNESS METER POWER ON : Pedal movement or press the button. POWER OFF : A u t o m a t i c a l l y s h u t s o ff a f t e r f o u r minutes of inactivity.
  • Page 12 OPERATIONAL INSTRUCTIONS SEAT HEIGHT ADJUSTMENT Proper seat height is important for efficient exercise. To determine proper seat height, sit on the bike and center the ball of your foot on the pedal in the down position. Your leg should be slightly bent and relaxed as shown.

  • Page 13: Storage

    Since no two people or life styles are alike, the STAMINA® Air Resistance Bike 876 has been designed to allow the user to isolate portions of the body that may need greater emphasis in training.

  • Page 14: Maintenance

    876 removed from service until repair is made. 7. Only Stamina Products supplied components should be used to maintain/repair the STAMINA® Air Resistance Bike 876. 8. Keep your STAMINA® Air Resistance Bike 876 clean by wiping it off with an absorbent cloth after use. TROUBLE SHOOTING GUIDE IT IS NOT NECESSARY TO RETURN ENTIRE BIKE FOR A MONITOR REPAIR.

  • Page 15: Adjustment Instructions

    ADJUSTMENT INSTRUCTIONS Belt Tension Adjustment Belt tension adjustment required if the belt is slipping on the front pulley. 1. Loosen the NUTS(3/8”-26)(63) on both sides of the fan. 2. Tighten the NUT(M6x1)(62) on the belt side 1/4 turn clockwise at a time until the belt stops slipping on the front pulley. 3.
  • Page 16 ADJUSTMENT INSTRUCTIONS STEP 6: Hold the FAN(18) so that the FRONT PULLEY is on your left side as shown. STEP 7: Loosen THIN NUT “C” and NUT “A” until at least 1/8” of FAN AXLE is showing between NUT “A” and the FAN BUSHING. STEP 8: Tighten NUT “B”...

  • Page 17: Conditioning Guidelines

    CONDITIONING GUIDELINES How you begin your exercise program depends on your physical condition. If you have been inactive for several years or are severely overweight, start slowly and increase your workout time gradually. Increase your workout intensity gradually by monitoring your heart rate while you exercise. Remember to follow these essentials: Have your doctor review your training and diet programs.

  • Page 18: Warm-Up And Cool-Down

    WARM-UP and COOL-DOWN Warm-Up The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength training or aerobic exercising. Perform activities that raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging, jumping jacks, jump rope, and running in place.

  • Page 19: Warranty

    To implement this limited warranty, send a written notice stating your name, date, and place of purchase and a brief description of the defect along with your receipt to Stamina Products, Inc. 2040 N Alliance Ave, Springfield, Missouri, USA, MO 65803, or email us at customer.care@staminaproducts.com, or call us at 1-800-375-7520.

  • Page 21: Parts List

    PARTS LIST PART# PART NAME Main Frame Rear Stabilizer Front Stabilizer Seat Post Left Handlebar Right Handlebar Magnet Sensor Clip Linkage Crank and Pulley Wavy Washer Small Keyed Washer Split Bearing Crank Bearing Retainer Large Keyed Washer Roll Pin V-Ribbed Belt (430J5) Fan (32 blades) Resistance Hub Fan Bushing...
  • Page 22 PARTS LIST PART# PART NAME Leveling Cap (28.6mm) Endcap (45mm) Round Plug (25mm) Oval Plug (20mm x 40mm) Carriage Bolt (M8 x 1.25 x 38mm) Screw, Round Head (M5 x 12mm) Screw, Round Head (M5 x 15mm) Screw, Round Head (M5 x 25mm) Screw, Round Head (M5 x 75mm) Bolt, Round Head (M6 x 1 x 15mm) Screw, Flat Head (M5 x 0.8 x 15mm)

  • Page 23: Fax/Mail Ordering Form

    2040 N Alliance Ave, Springfield, MO 65803 Would you like to recieve email information or special offers from Stamina Products? Register at contact.staminaproducts.com TO REGISTER YOUR PRODUCT To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your...
