6. Configure the transceiver

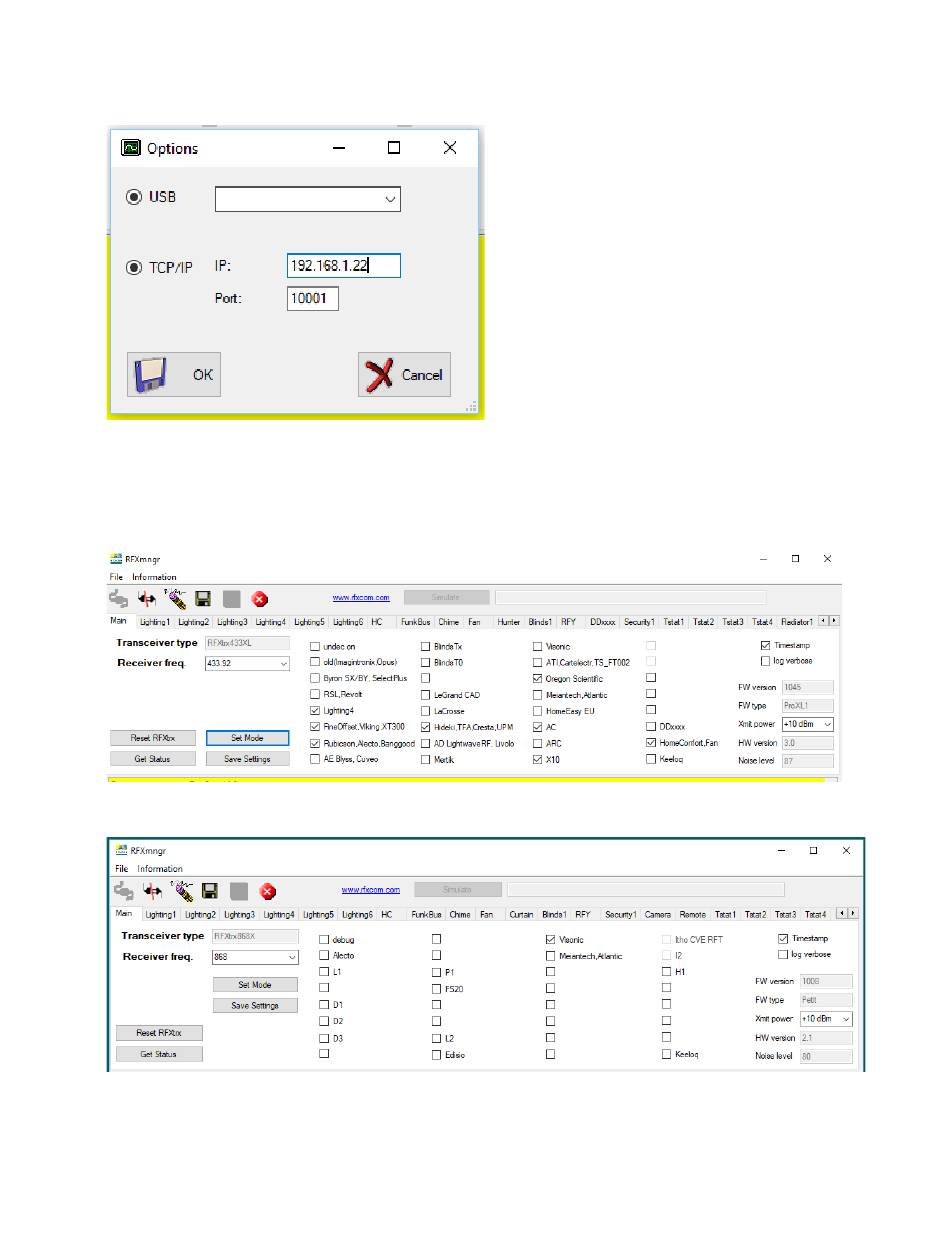

The transceiver can be tested and configured with the RFXmngr program.
Set the IP address of the RFXtrxLAN or use the Host Name.
Connect port 10001:
Select the protocols necessary for receive and click Set Mode followed by Save Settings.
No need to select protocols for transmit!
Note that you can only select 1 protocol for receive in the RFX868 because each protocol uses
different frequencies and modulation!!!
RFX433 settings:
RFX868 settings:
RFXtrxLAN 433/868 Rev. 0.0
page 8 / 11
Copyright, RFXCOM 2023
