Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.

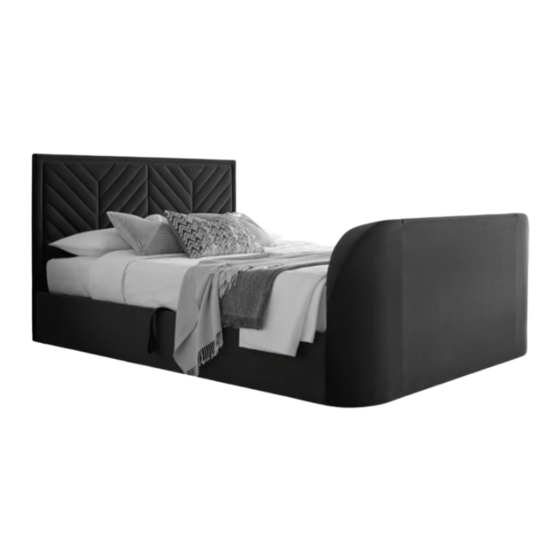

Sherlock Ottoman TV Bed
- All Sizes
Double or King Size
Assembly Instructions
.
Super King Size
www.happybeds.co.uk
Advertisement
Related Manuals for Happybeds Sherlock
Summary of Contents for Happybeds Sherlock
- Page 1 Sherlock Ottoman TV Bed - All Sizes Double or King Size Super King Size Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
- Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
-
Page 3: Health And Safety
Health & Safety: This product or some parts of this product will be heavy. Please use an assistant when lifting. Please keep small parts out of reach of children. Always use on a level, even surface. DO NOT jump on the product or any of its parts. DO NOT use this product if any parts are missing, damaged or worn. - Page 4 No Part List No Part List Headboard 1 pc 1 pc Metal slat frame for double or king size Footboard 1 pc Mattress stoppers 2 pcs 2 pc Gas lift pistons 2 pcs Side rails Fabric base cover 1 pc Fabric hand strap 1 pc “U”...
- Page 5 HARDWARE NEEDED FOR BED ASSEMBLY (PACK A) Hardware List Hardware List Bolt (M8x35mm) for fitting Allen key for 1 pc 12 pcs side rail hook brackets to M6 bolts headboard & footboard Allen key for Spring washer for 1 pc 24 pcs M8 bolts M8 bolts...
- Page 6 Step 1: Bolts (M8x35mm) 12 pcs Spring Washer for 24 pcs M8 bolts Flat Washer for 24 pcs M8 bolts Bolts (M8x20mm) 12 pcs Allen key for 1 pc M8 bolts 2 pcs Hook Bracket - LH 2 pcs Hook Bracket - RH Step 2: Spring Washer for Allen key for...
- Page 7 Note: depending on your purchase, please use this hardware for: Step 3a: (3a) Super King size - or for (3b) Double & King size. Flat Washer for Spring Washer for 12 pcs 12 pcs M6 bolts M6 bolts Allen key for 1 pc M6 bolts Super King size...
- Page 8 Note: depending on your purchase, please use this hardware for: Step 4a: (4a) Super King size - or for (4b) Double & King size. Flat Washer for Footboard Bolts 4 pcs 8 pcs M8 bolts (M8x35mm) Spring Washer for Allen key for 8 pcs 1 pc M8 bolts...
- Page 9 Step 5: Lift and turn bed on its side and with assistant holding bed upright for safety, attach fabric base cover (4) using the velcro tape, to bottom of side-rails, headboard & footboard. Make sure fabric is fixed evenly all round. Spring Washer for Step 6: 4 pcs...
- Page 10 Step 7: Connect mains power lead (15) to your wall socket - for safety this must be an earthed power supply. Step 8: Press the “UP” button to raise the TV lift.
- Page 11 Note: For illustration purposes only, TV connections may vary. Step 9: Media Cable are not supplied Tip: Before fitting the TV, push cables through each duct from the top choosing the best side to use depending on where the connection ports are on back of your TV.
- Page 12 If your TV is supplied with Vesa bolts, please use those in preferance to our selection. Step 11: Bolt set 2 pcs Allen key (4mm) 1 pc M8 x 25mm Counter-sunk screw 2 pcs Allen key (2.5mm) 1 pc set (M6x12mm) Counter-sunk screw 2 pcs set (M4x12mm)
- Page 13 Note: For illustration purposes only, TV connections may vary. Step 13: TV Power Lead Keep all leads tight, peel supplied with your TV off cover from cable clips & adhere to back of TV. KEEP ALL CABLES TIGHT BY USING CLIPS &...
- Page 14 Note: Please choose which side of the slat frame to lift up to reach into the storage area Step 15a: then, depending on your purchase, please use this hardware for the Double, King or Super King size bed: (15a) lift from LEFT OR (15b) LIFT FROM RIGHT. Flanged M8 lock-nuts Spring Washer for 6 pcs...
- Page 15 Step 16: Allen Key for 1 pc M8 bolts Spanner for flanged 1 pc M8 lock-nuts Carefully lay frame down. Make sure there is an even gap each side of about 8 mm, as in the sketch. Hold frame securely then tighten all six bolt sets 100% using spanner (R) &...
- Page 16 Important for Ottoman and other gas lift beds Please follow these final steps to ensure the best experience with your new bed • Please ensure the pistons are fitted to the bed frame. • Please place the mattress on top of the bed frame. •...
-
Page 17: General Care And Maintenance
For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes In the unlikely event that you have problems putting this product together or have damaged or missing parts, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
