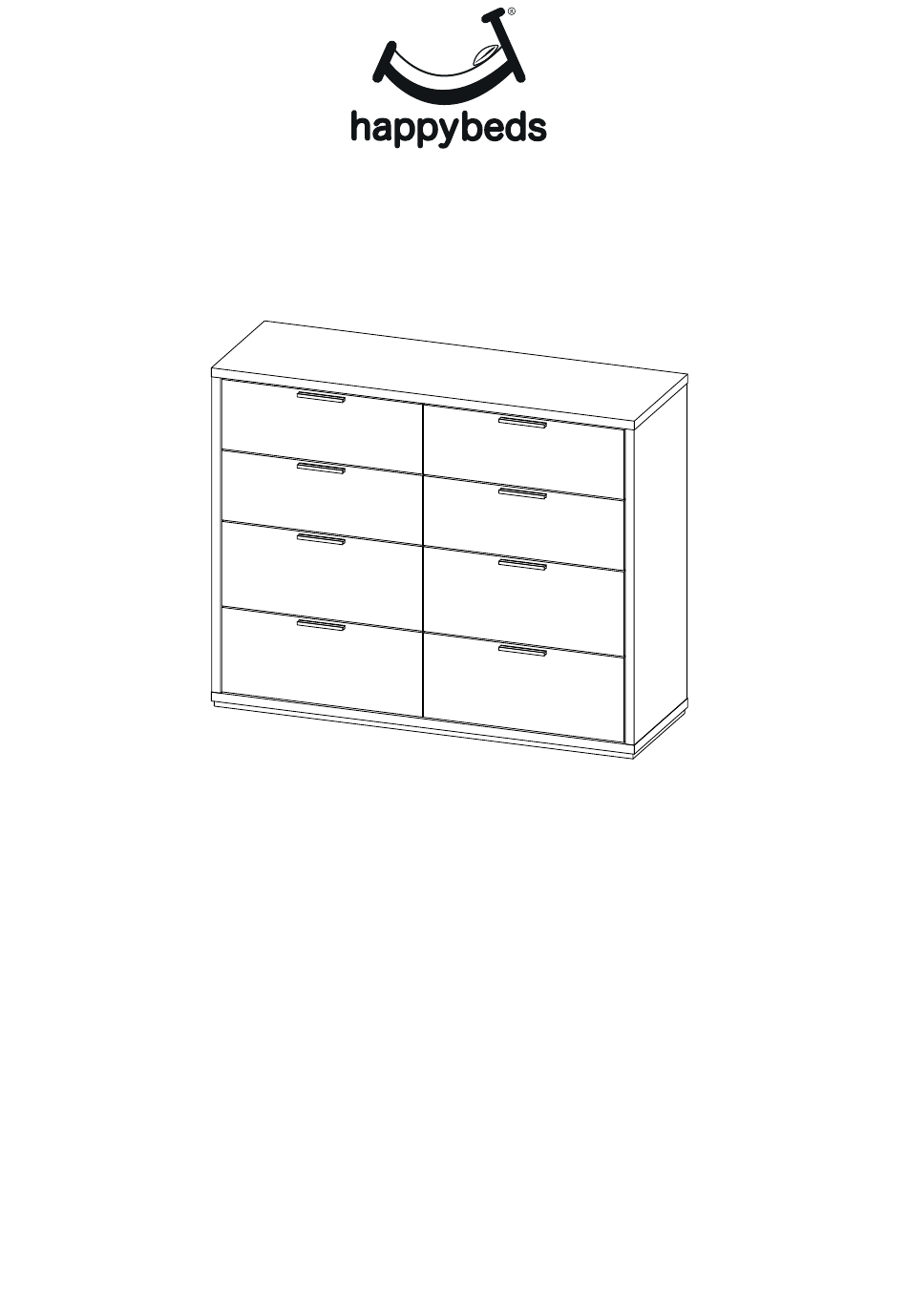

Happybeds Stockwell Merchant Chest Assembly Instructions Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
ASSEMBLY:
Assembly should be carried out with this item laying flat, not standing upright.
Assemble on a soft, clean surface to prevent damages.
To erase the numbers printed on the pieces, use the rubber inside the accessories pack.
HEALTH & SAFETY:
DO NOT
use this product if any parts are missing, damaged or worn.
DO NOT
use this product unless all fixings are secured.
Always use on a level, even surface.
CARE & MAINTENANCE:
Periodically check all screws & fixings to ensure they are secure.
Stockwell Merchant Chest
DO NOT
push this product as this will cause damage.
Always lift this product with two people to reposition.
Keep any sharp objects away from this product .
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product,
to void scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep small parts out of reach of children.
Always use on a level, even surface.
Please keep these instructions for future reference.
Assembly Instructions
www.birlea.com
1
www.happybeds.co.uk

Advertisement

loading

Related Manuals for Happybeds Stockwell Merchant Chest

Summary of Contents for Happybeds Stockwell Merchant Chest

  • Page 1 Always use on a level, even surface. Assembly Instructions CARE & MAINTENANCE: Periodically check all screws & fixings to ensure they are secure. Stockwell Merchant Chest DO NOT push this product as this will cause damage. Always lift this product with two people to reposition.
  • Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
  • Page 3 Vendor: S000350 Parts List Hardware List (BOX 3) Part Descripion Qty Part Description Top panel Cam lock Bottom panel Minifix screw Side panel ( Left ) Plastic cap Side panel ( Right ) M8 x 30mm Wood Dowel Center panel M6 x 60mm CSK Cap Wood screw Middle bone ( Left ) Allen key M4...
  • Page 4 Vendor: S000350 Step 1: Prepare these parts for assembly using hardware parts A1, A2, B, D, E, F, H, J1 and M. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Page of 7...
  • Page 5 Vendor: S000350 Step 2: Attach middle bone (6) to side panel (3) and center panel (5), and attach middle bone (7) to side panel (4) and center panel (5) using hardware A1 and A2 with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. A3 x 4 Step 3: Attach side panel (3), (4), center panel (5) and back bone (8) to top panel (1) using hardware A1 and A2 with a screwdriver (not provided).
  • Page 6 Vendor: S000350 Step 5: Attach bottom panel (2) to side panel (3), (4) and center panel (5) using hardware C and D. Attach bottom panel (2) to back bone (8) using hardware A1 and A2. DO NOT use any power tools as this may damage the frame and will invalidate any claim. A3 x 2 C x 6 Step 6: Attach hardware I1 into top panel (1), bottom panel (2), side panel (3) and (4) using hardware I2...
  • Page 7 Vendor: S000350 Step 8: Assemble the drawer components using hardware E, G and J2. In this step only show one of the drawers. DO NOT use any power tools as this may damage the frame and will invalidate any claim. E x 24 G x 32 ( L/R )
  • Page 8 Vendor: S000350 Step 10: Assemble the drawer in place along the drawer slides. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 11: To secure the item to the wall use hardware G, K and L using a screwdriver (not provided). Then attach hardware part K to top panel (1) using hardware E with a screwdriver (not provided).

  • Page 9: General Care And Maintenance

    floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
