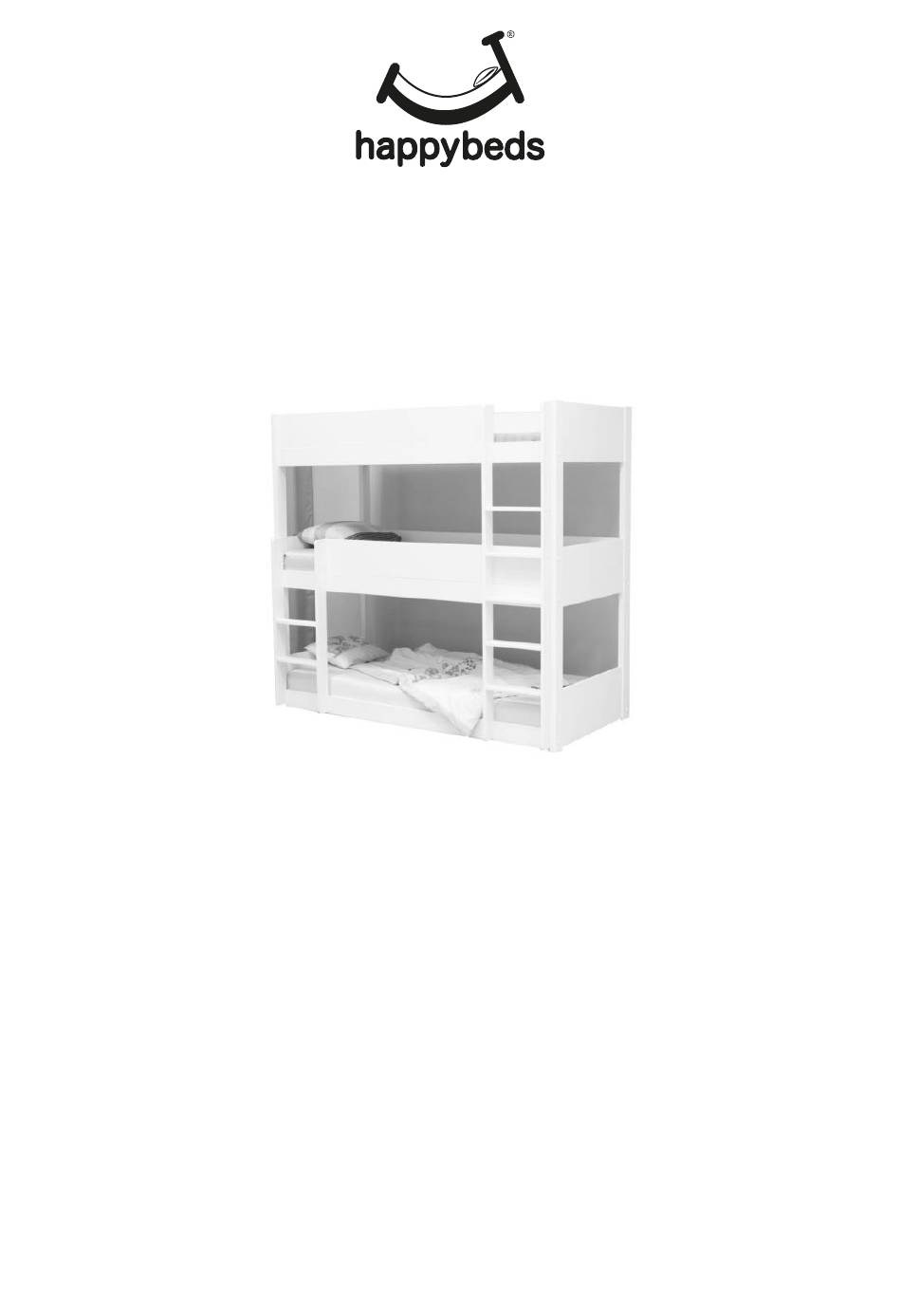

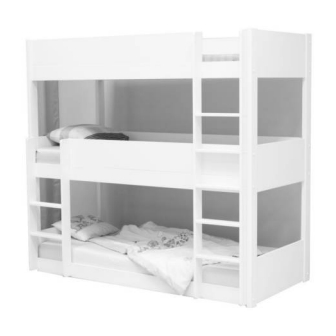

SNOWDON Bunk Bed
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product, to avoid
scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep these instructions for future reference.
Assembly Instructions
Title of Product
.
.
www.happybeds.co.uk

Advertisement

loading

Summary of Contents for Happybeds SNOWDON

  • Page 1 Assembly Instructions Title of Product SNOWDON Bunk Bed Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
  • Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
  • Page 3 Batch nr: 1/15 NR879-106/108 8x40 4x30 7x60 7x34 7x50 D15x13,5 D4x13 M6x75 D8x13 M6x10x13 D15x18 6,3x70 55/12,2x5 D4x17 3,5x40 4,2x35 D25x3 20x42x70...
  • Page 4 2/15 Montageanleitung Assembling instructions IMPORTANT ‐ READ CAREFULLY ‐ KEEP FOR WICHTIG ‐ AUFMERKSAM LESEN ‐ ZUR SPATEREN FUTURE REFERENCE EINSICHTNAHME AUFZUBEWAHREN a) WARNING Raised beds and the upper bed in a bunk bed assembly are a) WARNUNG Hochbetten und das obere Bett bei Etagenbetten sind wegen des Verletzungsrisikos durch Stürze nicht für Kinder unter sechs Jahren not good for children under 6 years old geeignet.
  • Page 5 3/15 8x40 7x60...
  • Page 6 4/15 M6x10x13 x12 7x34...
  • Page 7 5/15 M6x75 M6x10x13 x8...
  • Page 8 6/15 ~ 20mm M6x75 M6x10x13 x4 D25x3 ~ 20mm M6x75 D25x3 M6x10x13 x4...
  • Page 9 7/15 D: Max. Höhe der Matratza GB: Maximum height of mattress F: Hauteur maximum du matelas I: Altezza massima del materasso 7x50 D4x13 D: Max. Höhe der Matratza GB: Maximum height of mattress F: Hauteur maximum du matelas I: Altezza massima del materasso 7x50 D4x13...
  • Page 10 8/15 D: Max. Höhe der Matratza GB: Maximum height of mattress F: Hauteur maximum du matelas I: Altezza massima del materasso 7x50 D4x13 D: Max. Höhe der Matratza GB: Maximum height of mattress F: Hauteur maximum du matelas I: Altezza massima del materasso 7x50 D4x13...
  • Page 11 9/15 M6x75 6,3x70 55/12,2x5 x6 M6x10x13 x2 4,2x35 D15x13,5 x2...
  • Page 12 10/15 M6x75 6,3x70 55/12,2x5 x6 M6x10x13 x2 4,2x35 D15x13,5 x2...
  • Page 13 11/15 6,3x70 M6x75 55/12,2x5 x8 M6x10x13 x2 4,3x35 D15x13,5...
  • Page 14 12/15 6,3x70 M6x75 55/12,2x5 x8 M6x10x13 x2 4,3x35 D15x13,5...
  • Page 15 13/15 3,5x40...
  • Page 16 14/15 D8x13 D4x17 D15x18 x18...
  • Page 17 15/15 Important! Il est induspensable de fixer le lit mezzanine au mur avec les 2 équerres L Utiliser des vis et des chevilles adaptés votre mur. Important! To secure the bed it is necessary to fix the bed to the wall by mounting the 2 brackets L as shown on the illustration.
  • Page 18 floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
