SORRENTO CONTEMPORARY HIGH

HEADBOARD 135CM

Assembly Instructions

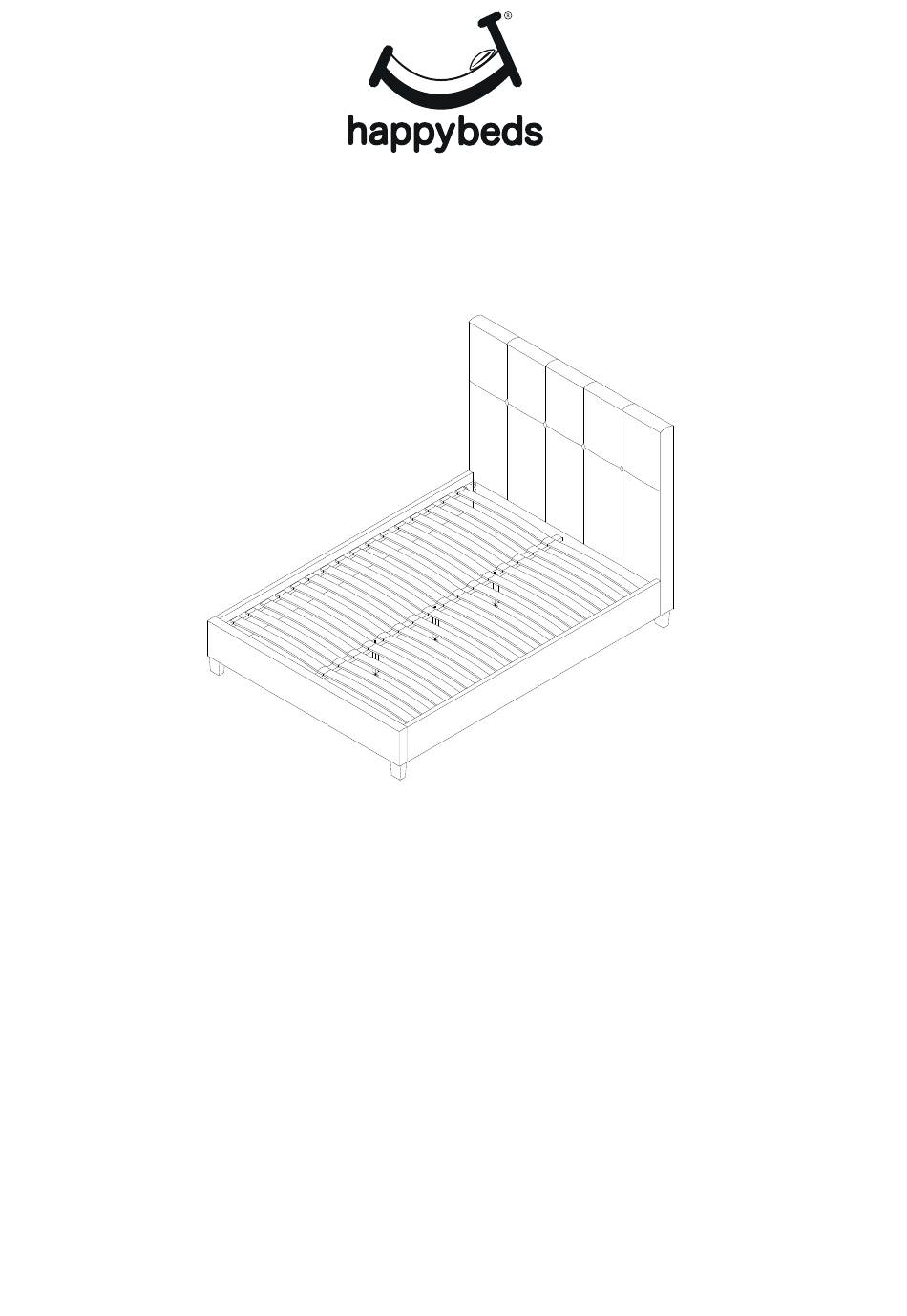

Sorrento Slate Bed

Assembly Instructions

Important before assembly:

VERSION: 161109

Read these instructions carefully before assembling or using the product.

Please check the contents of the boxes before attempting to assemble this product. The instructions will

have a checklist of parts and ﬁttings.

It would be sensible to lay a rug or a carpet on the ﬂoor where you intend to assemble the product,

to void scratches and damaging the product or the ﬂoor.

Assemble the product as close to its intended ﬁnal location/room as possible.

Do NOT use any power tools as this may damage the frame.

Health & Safety:

This product or some parts of this product will be heavy. Please use an assistant when lifting.

DO NOT jump on the product or any of its parts.

DO NOT use this product if any parts are missing, damaged or worn.

DO NOT use this product unless all ﬁxings are secured.

Please keep small parts out of reach of children.

Always use on a level, even surface.

Please keep these instructions for future reference.

www.happybeds.co.uk

Page 1 Julian Bowen Limited SORRENTO CONTEMPORARY HIGH HEADBOARD 135CM Assembly Instructions Sorrento Slate Bed Assembly Instructions Important before assembly: VERSION: 161109 Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and ﬁttings.
Page 2 Never drag or push the pieces across a hard or stone ﬂoor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
Page 3 Hardware Already inserted into Head & Foot Ends Screw M5 x 70mm M8 x 30mm Middle Cap For - 3 X Sprung Base - 16 X +Flat Washer Bolt - 8 X Allen Key (M5) - 1 X Slat Cap - 32 X Bolt M8 x 60mm +Flat Washer Bolt - 4 X...
Page 5 STEP 1 A & B A & B STEP 2 Please note that the Bolt (1) x 8 are prefixed into parts A & B STEP 3...
Page 6 STEP 4 Slot into bracket behind fabric PULL STEP 5 STEP 6 PUSH PUSH PUSH...
Page 7: General Care And Maintenance
ﬂoor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
