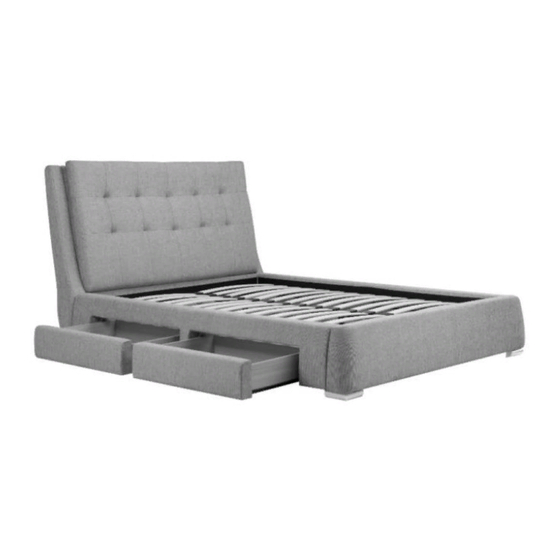

Summary of Contents for Happybeds Soho 4 Drawer 5FT Fabric Bed
Page 1
Assembly Instructions Title of Product Soho 4 Drawer 5FT Fabric Bed Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
Page 2
Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
Important Information Please be aware that there may be a light smell emitting from the product once you have opened the boxes and begun to assemble the bed. This smell will subside within 6-8 weeks. We recommend keeping windows open and fresh air circulating wherever possible. Please take the time to carefully read through all of these instructions before you commence building this bed.
Page 4
PARTS Carton 1 1.Headboard(x1) Carton 2 2.Footboard(x1) Carton 3 3.Siderail(x2) 4.Centre Rail(x1) 5.Legs(4) 7.Support Legs(x2) 6.Slats(x32) 8.Drawer Front Panel(x4) Page 3 of 9...
Page 5
PARTS Carton 4 9.Drawer Back Panel 10.Drawer Side Panel 11.Drawer Side Panel (x4) (x4) (x4) 12.Drawer Botton Panel 13.Drawer Support 14.Drawer Holder Side (x4) (x8) Panel (x2) 17.Drawer Frame 15.Drawer Divider 1(X2) 16.Drawer Divider 1(X2) Cross Bar (x2) HARDWARE All fitting are stored within Box 3 C.M8 Flat Washer A.M 6x30mm JCBC B.M8x30mm JCBC...
Step 1 Step 2 Bottom View Side View Step 4 Step 3 Bottom View DO NOT use any power tools as this may damage the frame and will invalidate any claim. Page 5 of 9...
Page 7
Step 5 DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 6 ATTENTION: Please keep the adjuster around 5 to 8 mm distant away from the floor. Page 6 of 9...
Page 8
Step 7 DO NOT use any power tools as this may damage the frame and will invalidate any claim. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 8 Page 7 of 9...
Page 9
Step 9 Step 10 Your Soho 4 Drawer Bed now is ready to use Page 8 of 9...
If this is not adhered to, it could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
