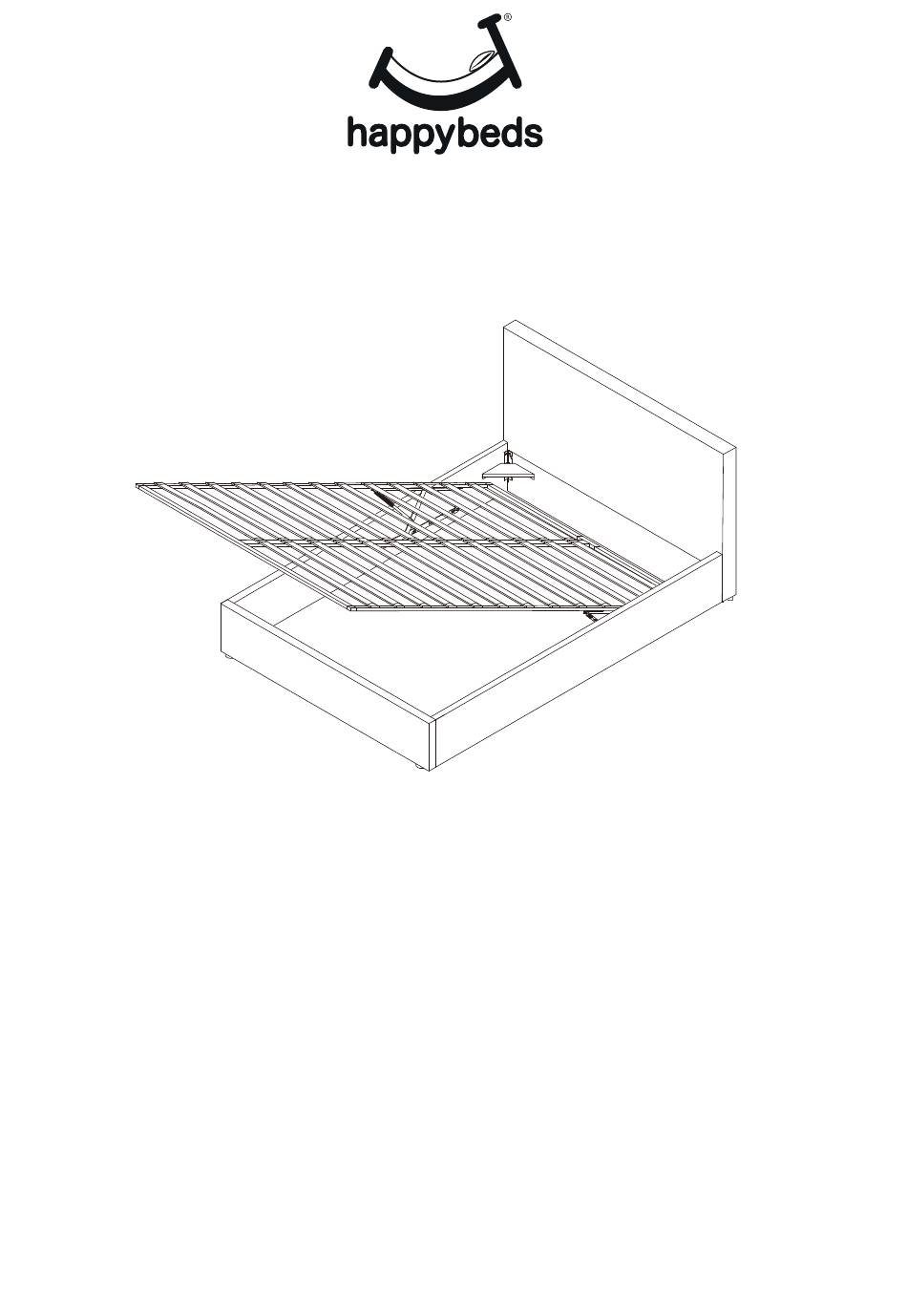

FABRIC STORAGE BED 135CM
Assembly Intruction
Assembly Instructions

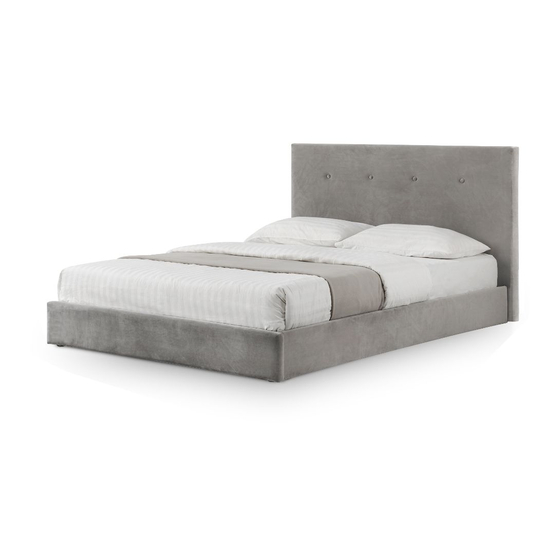

Shoreditch Storage Bed
O
O
O
O
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
VERSION: 210518
SHO201
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product,
to void scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep small parts out of reach of children.
Always use on a level, even surface.
Please keep these instructions for future reference.
www.happybeds.co.uk
Advertisement
Related Manuals for Happybeds Shoreditch Storage Bed
Summary of Contents for Happybeds Shoreditch Storage Bed
- Page 1 FABRIC STORAGE BED 135CM Assembly Intruction Assembly Instructions Shoreditch Storage Bed Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will...
- Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
- Page 3 HARDWARE M8 x 25mm (12 PCS) NUT (2 PCS) M6 x 30mm (6 PCS) M6 x 15mm (12 PCS) M6 x 68mm (2 PCS) FLAT WASHER (12 PCS) 5mm ALLEN KEY (1 PC) SPRING WASHER (12 PCS) 4mm ALLEN KEY (1 PC) SPANNER (1 PC) PARTS...
-
Page 4: Safety Advise
Safety Advise Please take the time to carefully read through the whole of these instructions before you commence. Keep these instructions for future reference. Unpack, inspect and check off all of the contents. Please dispose of all packaging safety. Small component part could choke a child if swallowed. We strongly recommend that you keep children well away from the work area. - Page 5 Attaching side rails to headboard. & Repeat step 1 for footboard. Before tightening the bolts, please ensure the bed frame is square.
- Page 6 Fix corner brackets, then repeat for other 3 corner brackets in each corner of the bed frame. & Fix holding block on back of footboard...
- Page 7 Secure hydraulic arms Before connecting the hydraulic arm, ensure the lifting mechanism is functioning correctly - it should lift up and down freely with adequate clearance on all sides. DO NOT OVERTIGHTEN THE NUTS ! Assemble the base 3&4...
- Page 8 Attach non-woven fabric dust cover rst, then adjustable legs. Assemble slats...
- Page 9 Attach belt to the metal frame by loop-on method as shown, pull tight after loop-on. Place the mattress onto the frame. (MATTRESS NOT INCLUDED) Notes: It is imperative that the bed is aligned squarely to prevent the frame from catching on and damaging the upholstered side rails. Please use extra caution when opening and closing the bed, ensure a similar spacing on each side of the frame.
-
Page 10: General Care And Maintenance
floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
