Siemens SIMATIC NET RUGGEDCOM RS1600 Installation Manual page 23

Installing Device

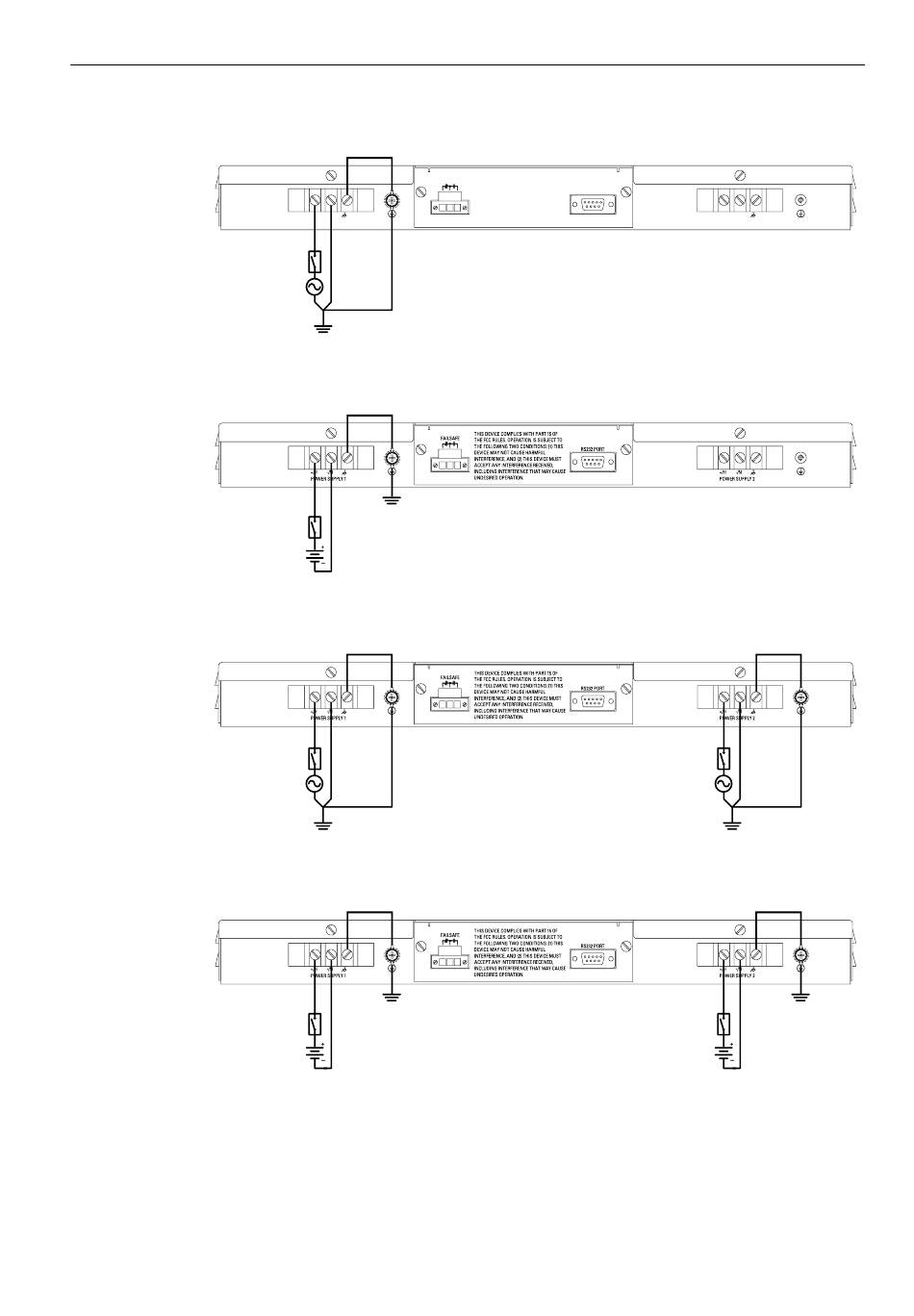

2.2.3 Wiring Examples
Figure 2.6
Figure 2.7
Figure 2.8
Figure 2.9
14
All manuals and user guides at all-guides.com
FAILSAFE
+/H -/N
POWER SUPPLY 1
Single AC Power Supply
Single DC Power Supply
Dual AC Power Supply
Dual DC Power Supply
THIS DEVICE COMPLIES WITH PART 15 OF
THE FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS: (1) THIS
RS232 PORT
DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION.
Installation Manual, 01/2021, C79000-G8976-1013-03
+/H -/N
POWER SUPPLY 2
RUGGEDCOM RS1600
