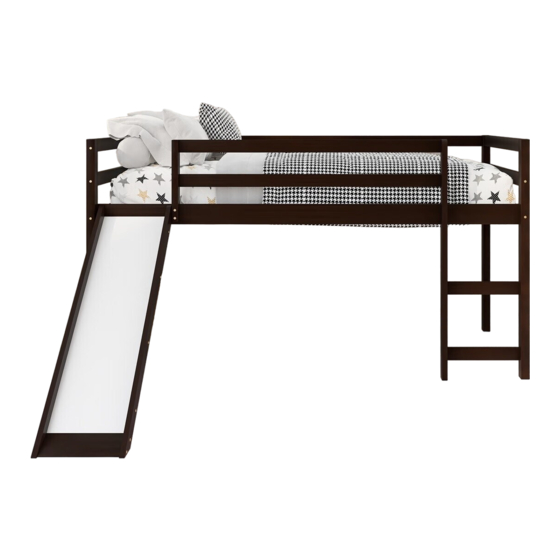

ASSEMBLY INSTRUCTIONS
LOFT BED WITH SLIDE
WF292715
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WF292715 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for overstock WF292715

Summary of Contents for overstock WF292715

  • Page 1 ASSEMBLY INSTRUCTIONS LOFT BED WITH SLIDE WF292715...

  • Page 2: Safety Warning

    SAFETY WARNING 1. This bed is designed for use only mattress (es) meeting the following specifications on the upper bunk, and lower bunk: Down bed Bed type Length Width Thickness Twin Standard 74"-75" 38 1/2" 8" Up bed (Bunk bed and tribed included) Bed type Length Width...
  • Page 3 SAFETY WARNING 1. At the beginning : Tighten all hardware. Chesk metal parts for rust. If found, sand and repaint using a non-lead-based paint meeting the requirements of 16 CFR 1303. Chesk all wood members for deterioration and splinters. Sand down splinters and replace deteriorating wood members.

  • Page 4: Detail View

    Detail View...

  • Page 5: Part List

    Part List Leg (Left Back) - 1pc Horizontal bar HB/FB - 6pcs Leg (Left Front ) - 1pc Long guard rail (Back) - 2pcs Leg (Right Front )- 1pc Leg (Right Back )- 1pc Short guard rail (Front) - 2pcs Side rail (Front)- 1pc Side rail (Back)- 1pc Ladder -1pc...

  • Page 6: Hardware List

    Hardware List Wood dowel (6pcs) Wood dowel (2pcs) Hex-Head bolts (12pcs) Hex-Head bolts (16pcs) Hex-Head bolts (4pcs) Hex-Head bolts (5pcs) 1/4"*15 (9.5mm) Hex-Head bolts (3pcs) Horizontal-Hole bolts(32pcs) Hex-Head bolts (12pcs) Wood screws (32pcs) 142*18*2mm Hooks (2pcs) (1/4")4.5*58mm Wood screws (2pcs) Plastic anchor (2pcs) Allen key (1pc) 58*16*16*(1.5mm)
  • Page 7 STEP 1: 12PCS 12PCS Note:Part 8 will face up with the "x" mark on it, otherwise it cannot be tightened STEP 2: 4PCS 12PCS 12PCS...
  • Page 8 STEP 3: 3PCS STEP 4: 2PCS 2PCS 4PCS...
  • Page 9 STEP 5: STEP 6: 2PCS 2PCS 2PCS 2PCS 4PCS...
  • Page 10 STEP 7: 2PCS STEP 8: 12PCS 4PCS 2PCS...
  • Page 11 STEP 9: 2PCS STEP 10: 28PCS 79mm 81.5mm 64mm Note: Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break. Do not lock the bed slats on the edge of the wood, please hold firmly before screwing ,...
  • Page 12 STEP A: 2PCS 4PCS STEP B: WALL...
  • Page 13 STEP C: 2PCS WALL WALL PLUG STEP D: 2PCS WALL...
