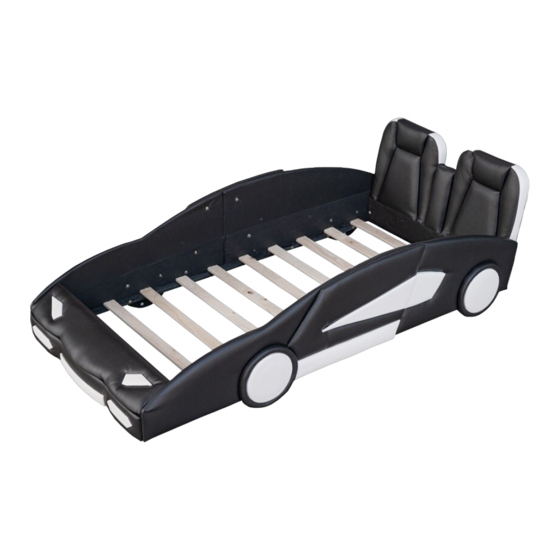

WF297945
IMPORTANT NOTE
**PLACE ALL PARTS ON A CLEAN AND SMOOTH SURFACE SUCH AS A RUG OR CARPET TO
AVOID THE PARTS FROM BEING SCRATCHED
** BEFORE YOU BEGIN , KINDY FOLLOW THE ASSEMBLY INSTRUCTIONS STEP BY STEP
**DO NOT TIGHTEN ALL SCREWS AND BOLTS UNTIL THE BED IS FULLY SET-UP
MADE IN VIETNAM
PAGE 1 OF 7
Advertisement
Related Manuals for overstock WF297945
Summary of Contents for overstock WF297945

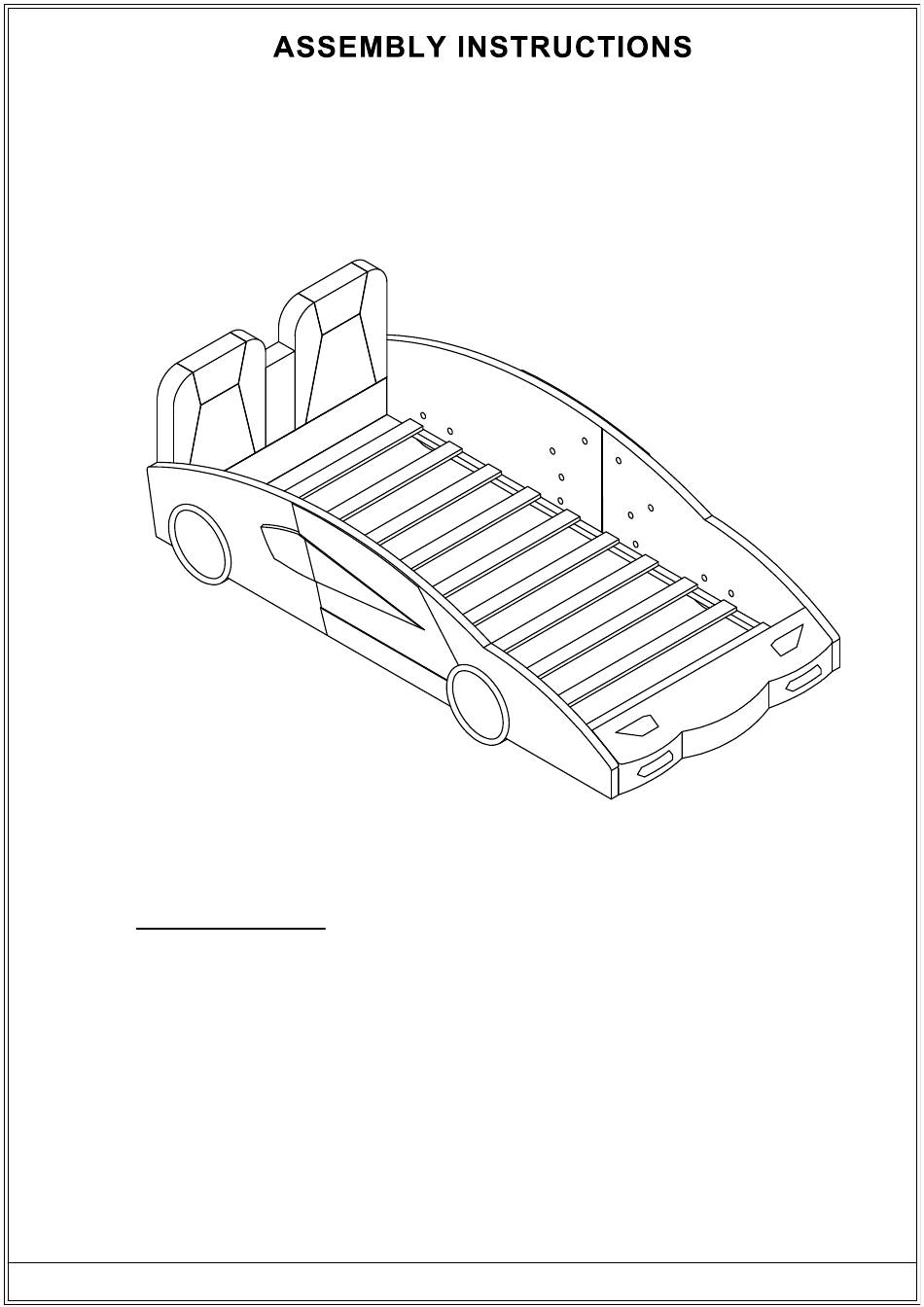

- Page 1 WF297945 IMPORTANT NOTE **PLACE ALL PARTS ON A CLEAN AND SMOOTH SURFACE SUCH AS A RUG OR CARPET TO AVOID THE PARTS FROM BEING SCRATCHED ** BEFORE YOU BEGIN , KINDY FOLLOW THE ASSEMBLY INSTRUCTIONS STEP BY STEP **DO NOT TIGHTEN ALL SCREWS AND BOLTS UNTIL THE BED IS FULLY SET-UP...
- Page 2 WF297945 PART LIST BOX 1: WF 297945 Headboard Panel (1 pc) Headboard Connector (1 pc) Leg (4 pcs) Footboard Top Panel (1 pc) Footboard Bottom Panel (1 pc) Side Rail Front Panel (2 pcs) Side Rail Back Panel (2 pcs)
- Page 3 WF297945 HARDWARE LIST IN WF297945 Short Bolt (24pcs) Short Bolt (8pcs) Long Bolt (5 pcs) (Ø 5/16 "X25mm) (Ø 5/16 "X20mm) (Ø 5/16 "X32mm) Flat Washer (53 pcs) Long Bolt (16pcs) Allen Wrench (1 pc) ( Ø 5/16 "-RBW ) (M4x75mm x32mm) (Ø...
-
Page 4: Flat Washer
STEP 1 Bolt (Ø 5/16 "X32mm) Flat Washer ( Ø 5/16 "-RBW ) Allen Wrench (M4x75mm x32mm) Flat Head Screw 6pcs ( m4x15mm-RBW) STEP 2 Bolt 16pcs (Ø 5/16 "X25mm) Flat Washer 16pcs ( Ø 5/16 "-RBW ) Allen Wrench (M4x75mm x32mm) MADE IN VIETNAM PAGE 4 OF 7... - Page 5 STEP 3 Bolt Bolt 8pcs 16pcs (Ø 5/16 "X25mm) (Ø 5/16 "X45mm) Allen Wrench Flat Washer 24pcs (M4x75mm x32mm) ( Ø 5/16 "-RBW ) STEP 4 MADE IN VIETNAM PAGE 5 OF 7...
- Page 6 STEP 5 Bolt Bolt 8pcs 4pcs (Ø 5/16 "X20mm) (Ø 5/16 "X32mm) Allen Wrench Flat Washer 12pcs (M4x75mm x32mm) ( Ø 5/16 "-RBW ) MADE IN VIETNAM PAGE 6 OF 7...
- Page 7 STEP 6 Flat Head Screw 20pcs ( m4x30mm-RBW) STEP 7 COMPLETE MADE IN VIETNAM PAGE 7 OF 7...
