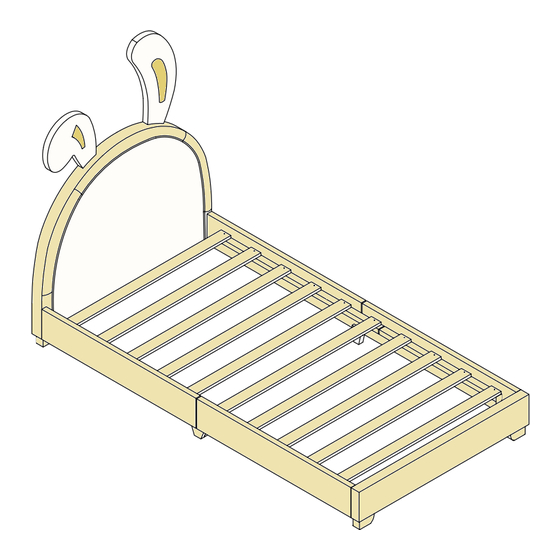

WF 299137
IMPORTANT NOTE
**PLACE ALL PARTS ON A CLEAN AND SMOOTH SURFACE SUCH AS A RUG OR CARPET TO
AVOID THE PARTS FROM BEING SCRATCHED
** BEFORE YOU BEGIN , KINDY FOLLOW THE ASSEMBLY INSTRUCTIONS STEP BY STEP
**DO NOT TIGHTEN ALL SCREWS AND BOLTS UNTIL THE BED IS FULLY SET-UP
MADE IN VIETNAM
PAGE 1 OF 7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for overstock WF 299137
Summary of Contents for overstock WF 299137
- Page 1 WF 299137 IMPORTANT NOTE **PLACE ALL PARTS ON A CLEAN AND SMOOTH SURFACE SUCH AS A RUG OR CARPET TO AVOID THE PARTS FROM BEING SCRATCHED ** BEFORE YOU BEGIN , KINDY FOLLOW THE ASSEMBLY INSTRUCTIONS STEP BY STEP **DO NOT TIGHTEN ALL SCREWS AND BOLTS UNTIL THE BED IS FULLY SET-UP...
-
Page 2: Assembly Instruction
WF 299137 PART LIST BOX 1: WF 299137 Headboard Panel (1 pc) Left Headboard Ear (1 pc) Right Headboard Ear (1 pc) Leg (4 pcs) Side Front Rail (2 pcs) Side Back Rail (2 pcs) Bed Support Bar (2 pcs) - Page 3 HARDWARE LIST IN WF 299137 Short Bolt (8pcs) Long Bolt (6 pcs) Long Bolt (8 pcs) (Ø 5/16 "X25mm) (Ø 5/16 "X32mm) (Ø 5/16 "X38mm) Long Bolt (4pcs) Allen Wrench (1 pc) Long Bolt (16pcs) (M4x75mm x32mm) (Ø 5/16 "X50mm) (Ø...
- Page 4 STEP 1 Bolt Flat Washer 6pcs 6pcs (Ø 5/16 "X32mm) ( Ø 5/16 "-RBW ) Allen Wrench Spring Washer 6pcs (M4x75mm x32mm) ( Ø 5/16 "-RBW ) STEP 2 Bolt Flat Washer 2pcs 2pcs (Ø 5/16 "X50mm) ( Ø 5/16 "-RBW ) Allen Wrench Spring Washer 2pcs...
- Page 5 STEP 3 Bolt Flat Washer 2pcs 2pcs (Ø 5/16 "X50mm) ( Ø 5/16 "-RBW ) Allen Wrench Spring Washer 2pcs (M4x75mm x32mm) ( Ø 5/16 "-RBW ) STEP 4 Bolt Flat Washer 8pcs 8pcs (Ø 5/16 "X38mm) ( Ø 5/16 "-RBW ) Allen Wrench Spring Washer 8pcs...
- Page 6 STEP 5 Bolt Flat Washer 16pcs 16pcs (Ø 5/16 "X45mm) ( Ø 5/16 "-RBW ) Allen Wrench Spring Washer 16pcs (M4x75mm x32mm) ( Ø 5/16 "-RBW ) STEP 6 Bolt Flat Washer 8pcs 8pcs (Ø 5/16 "X25mm) ( Ø 5/16 "-RBW ) Allen Wrench Spring Washer 8pcs...
- Page 7 STEP 7 Flat Head Screw 20pcs ( m4x30mm-RBW) STEP 8 COMPLETE MADE IN VIETNAM PAGE 7 OF 7...
