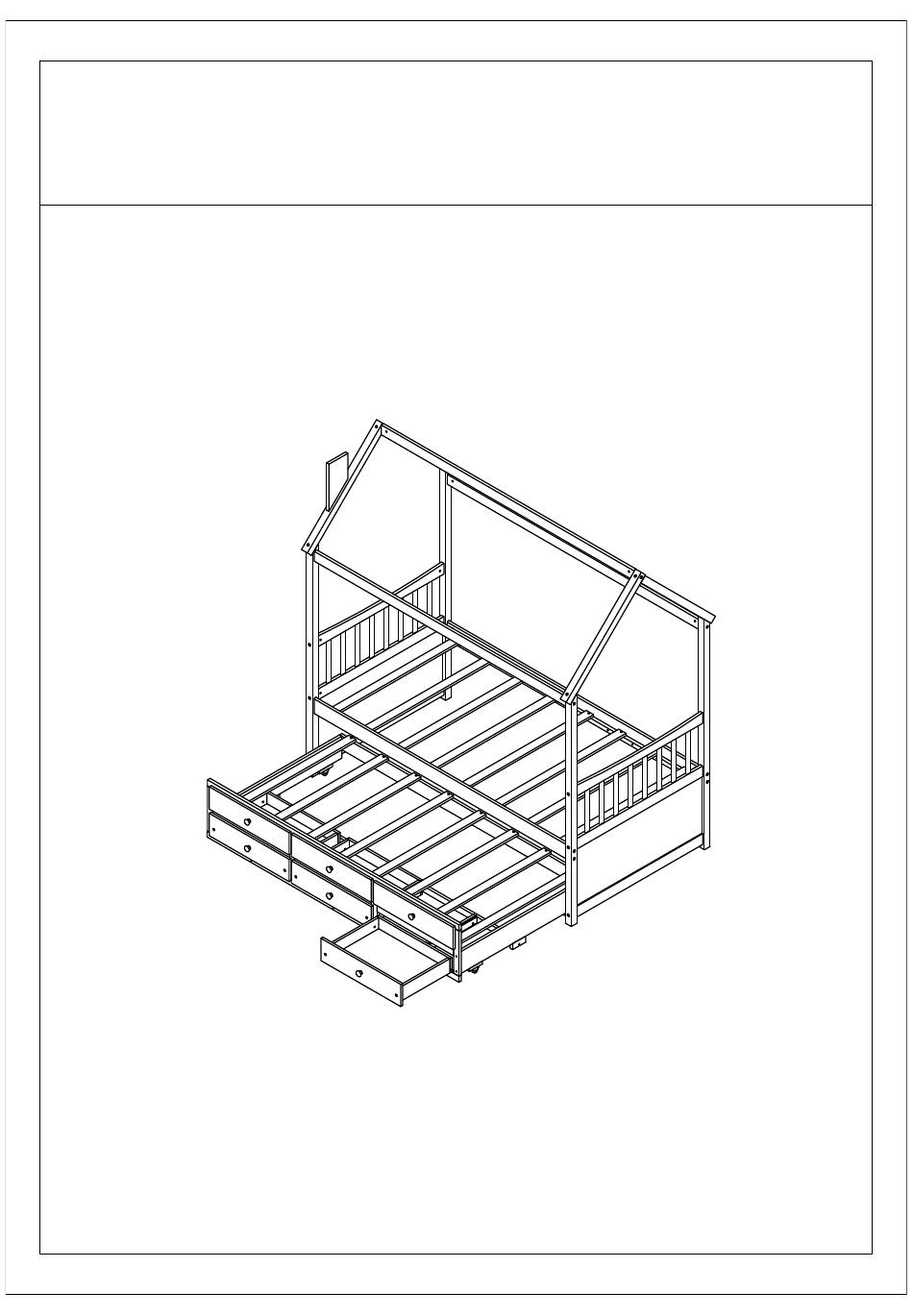

- Page 1 ASSEMBLY INSTRUCTIONS HOUSE BED WITH STORAGE TRUNDLE WF288548 \ WF288549...
-
Page 2: Detail View
Detail View... -
Page 3: Part List
Part List Hardware List WF288548\WF288549(2-1) Side rail(Back & Front)-2pcs Leg (Left Front / Right back ) - 2pcs Leg (Left back / Right Front ) - 2pcs Front panel of trundle - 1pc Back panel side rail of trundle -1pc... -
Page 4: Hardware List
Hardware List Wood dowel (26pcs) Hex-Head bolts (14pcs) Hex-Head bolts (12pcs) 1/4"*15 (9.5mm) Wood screws (8pcs) Hex-Head bolts (28pcs) Horizontal-Hole bolts(54pcs) 3/16"*25mm 45*20*35mm Pine Knob (6pcs) Ph zinc(Knob) (6pcs) Caster (4pcs) 400*30mm (1/4")4.5*58mm Wood screws (32pcs) Upper slider drawer (3pcs) Allen key (1pc) Wood screws (8pcs) Wood screws (9pcs) - Page 5 STEP 1: STEP 2: 6PCS 6PCS Note:Part 6 will face up with the "x" mark on it, otherwise it cannot be tightened...
- Page 6 STEP 3: 4PCS STEP 4: 6PCS 6PCS...
- Page 7 STEP 5: Remark: Upper horizontal paste stickers WARNING: DO STEP 6: NOT HANG ON THIS BAR! 14PCS 14PCS...
- Page 8 STEP 7: 16PCS 193mm Note: Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break. Do not lock the bed slats on the edge of the wood, please hold firmly before screwing , STEP 8: 4PCS...
- Page 9 STEP 9: 2PCS 6PCS 6PCS STEP 10: 3PCS 3PCS...
- Page 10 STEP 11: 7PCS 7PCS STEP 12: 16PCS 34.5mm Note: Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break. Do not lock the bed slats on the edge of the wood, please hold firmly before screwing ,...
- Page 11 STEP 13: 12PCS 6PCS 6PCS STEP 14: 12PCS 6PCS 6PCS STEP 15: 3PCS 9PCS...
- Page 12 STEP 16: 3PCS 3PCS STEP 17: 3PCS 3PCS Remark: When opening or closing the drawer, Please lift the drawer slightly before opening or closing it.
- Page 13 STEP 18: Push Trundle under the bottom of Twin bed.
