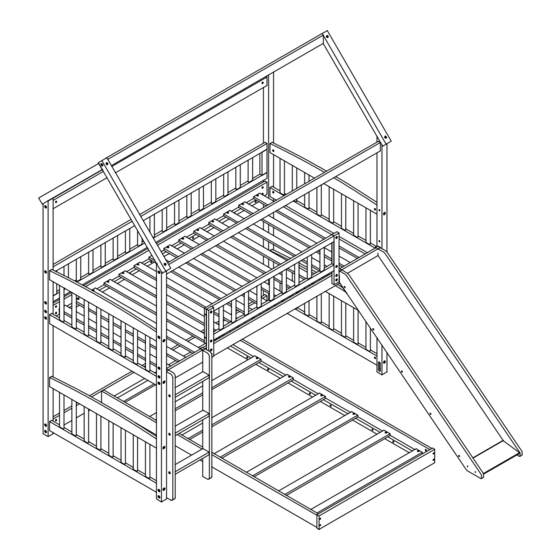

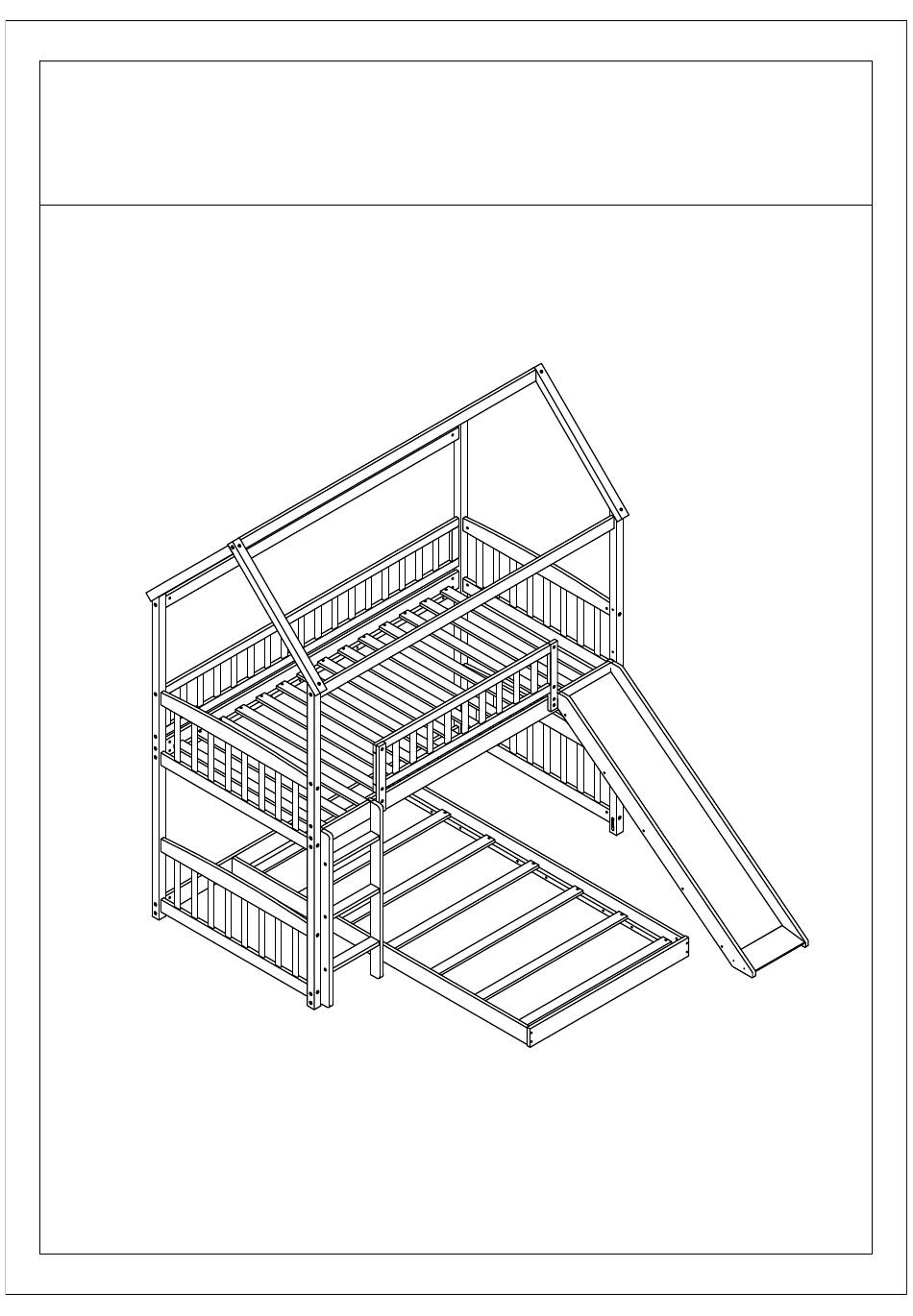

- Page 1 ASSEMBLY INSTRUCTIONS HOUSE BUNK BED WITH LADDER AND SLIDE WF296303/WF296304...
-
Page 2: Safety Warning
SAFETY WARNING 1. This bed is designed for use only mattress (es) meeting the following specifications on the upper bunk, and lower bunk: Upper bunk (Bunk bed and tribed included) Bed type Length Width Thickness Twin Standard 74"-75" 38 1/2" 6"... - Page 3 SAFETY WARNING 1. At the beginning : Tighten all hardware. Chesk metal parts for rust. If found, sand and repaint using a non-lead-based paint meeting the requirements of 16 CFR 1303. Chesk all wood members for deterioration and splinters. Sand down splinters and replace deteriorating wood members.
-
Page 4: Detail View
Detail View... -
Page 5: Part List
Part List Hardware List WF296303 Leg (Left Front/Right Back) - 2pcs Leg (Left Back/Right Front) - 2pcs Upper side rail (front) -1pc Upper side rail (Back) - 1pc Long guard rail - 1pc Upper horizontal bar - 3pcs Left side ladder - 1pc... - Page 6 Hardware List WF296304 Hex-Head bolts (22pcs) Hex-Head bolts (24pcs) Hex-Head bolts (6pcs) 35mm (1/4")4.5*58mm 1/4"*15 (9.5mm) Hex-Head bolts (10pcs) Allen key (1pc) Horizontal-Hole bolts (52pcs) 81*26*21*(2.5mm) 142*18*2mm Wood screws (46pcs) Hooks (2pcs) Hooks (2pcs) 65mm 50mm Wood screw bolts (6pcs) Wood screw bolts (14pcs) Wood screws (6pcs) 3.5*15 mm...
- Page 7 STEP 1: 8PCS 8PCS Note:Part 6 will face up with the "x" mark on it, otherwise it cannot be tightened STEP 2: 2PCS...
- Page 8 STEP 3: 8PCS 8PCS Note:Part 6 will face up with the "x" mark on it, otherwise it cannot be tightened STEP 4: 2PCS...
- Page 9 STEP 5: Remark: Upper horizontal paste stickers WARNING: DO NOT HANG ON THIS BAR! 22PCS 22PCS STEP 6: 4PCS...
- Page 10 STEP 7: 4PCS STEP 8: 4PCS 4PCS 4PCS...
- Page 11 STEP 9: 4PCS 4PCS 4PCS STEP 10: 2PCS 4PCS 2PCS 6PCS 6PCS...
- Page 12 STEP 11: 2PCS STEP 12: 4PCS 2PCS 14PCS 14PCS 14PCS...
- Page 13 STEP 13: 2PCS STEP 14: 42PCS 3.1" 3.3" 2.4" 79mm 84.5mm 61mm Note: Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break. Do not lock the bed slats on the edge of the wood, please hold firmly before screwing ,...
