Page 1: Installation Guide

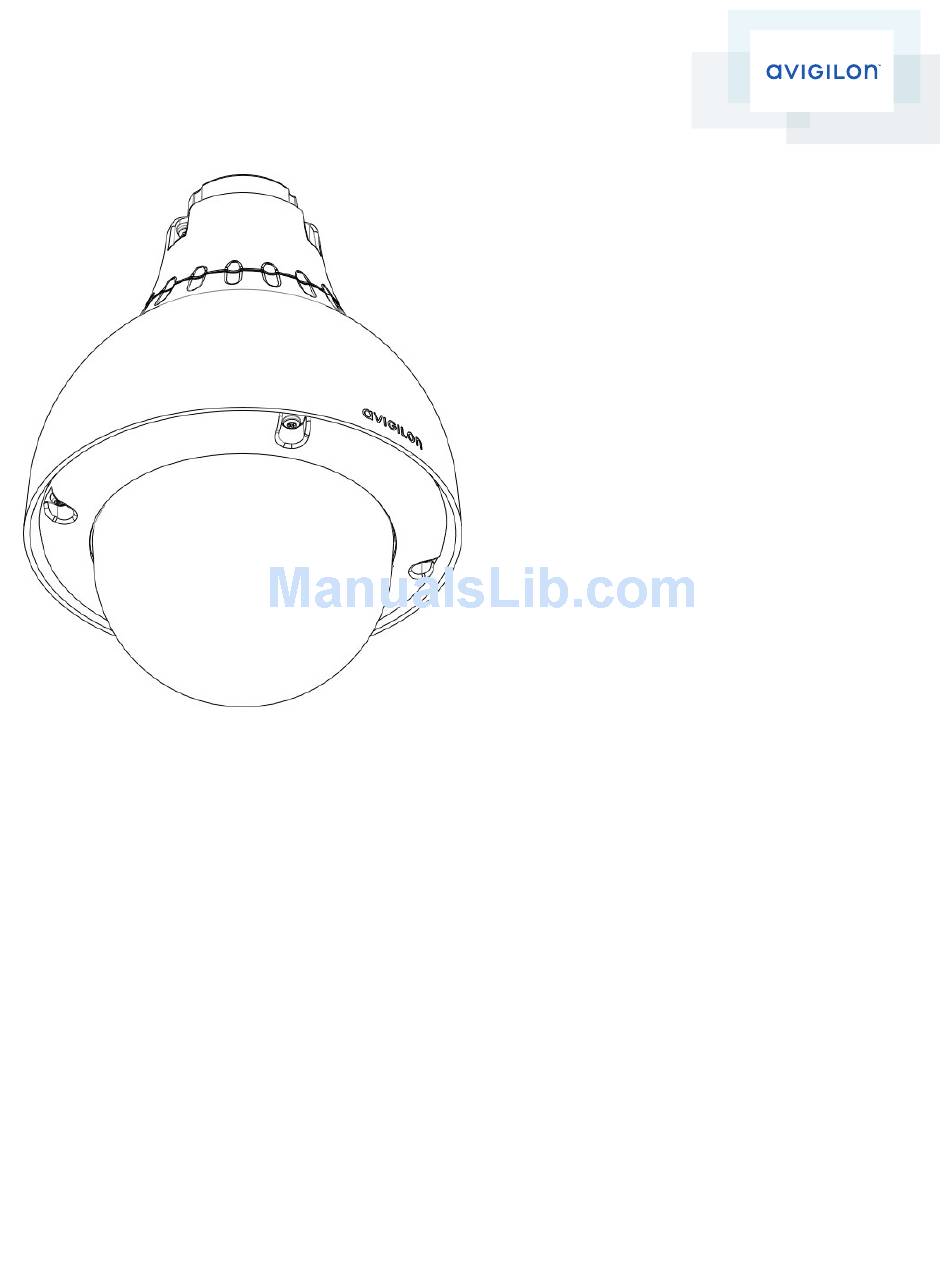

Installation Guide Avigilon™ HD Multisensor Dome Camera Models: 12W-H3-4MH-DP1 and 9W-H3-3MH-DP1... - Page 2 Power over Ethernet (PoE) IEEE802.3at Type 2 compliant Power Sourcing Equipment (PSE) rated 50-57 VDC, 25.5 W min. Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated.
-
Page 3: Fcc Notice
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment. -
Page 4: Legal Notices
© 2016, Avigilon Corporation. All rights reserved. AVIGILON, the AVIGILON logo, AVIGILON CONTROL CENTER, and ACC are trademarks of Avigilon Corporation. Other product names mentioned herein may be the trademarks of their respective owners. The absence of the symbols ™ and ® in proximity to each trademark in this document is not a disclaimer of ownership of the related trademark. -
Page 5: Table Of Contents
Table of Contents Overview Front View Top View Pendant Mount Adapter Installation Camera Package Contents Precautions for Installing Near Salt Water Installation Steps Removing the Dome Cover (Optional) Configuring Onboard Storage Installing the Mount Adapter Connecting Cables Securing the Dome Camera Assigning an IP Address Accessing the Live Video Stream Aiming the Dome Camera... -
Page 6: Overview
Overview Front View NOTE: There may be three or four camera heads depending on your camera model. 1. Configuration ethernet port A secondary Ethernet port for configuring the camera. Does not accept PoE. 2. Serial number tag Device information, product serial number and part number label. 3. -
Page 7: Top View
Top View 1. External power Accepts an external power connection when Power over Ethernet is not available. 2. Lanyard anchor The safety lanyard attaches to the anchor to prevent the camera from falling during installation. 3. Ethernet port Accepts an Ethernet connection to a network. Server communication and image data transmission occurs over this connection. -
Page 8: Pendant Mount Adapter
Pendant Mount Adapter 1. 1-1/2” NPT mount adapter Standard 1-1/2” NPT adapter for mounting the dome camera to a pendant mount bracket. 2. Tamper resistant screws Torx captive screws to fix the dome camera to the NPT adapter. Pendant Mount Adapter... -
Page 9: Installation
Follow these precautions to avoid camera issues when installing in a salt heavy environment: Use mounting accessories offered by Avigilon. All Avigilon accessories are tested to work with Avigilon cameras in the rated environments. -
Page 10: Removing The Dome Cover
(Optional) Configuring Onboard Storage Installing the Mount Adapter Connecting Cables Securing the Dome Camera Assigning an IP Address Accessing the Live Video Stream Aiming the Dome Camera Installing the Dome Cover Removing the Dome Cover Remove the dome cover by loosening the screws that fix the cover to the base. The Torx key included with the dome camera can be used to loosen the screws. -
Page 11: Installing The Mount Adapter
4. Push the camera module back into the base and tighten the screws 5. Access the camera’s web interface to enable the onboard storage feature.For more information, see the Avigilon High Definition H.264 Camera Web Interface User Guide. Installing the Mount Adapter CAUTION —... - Page 12 1. Wrap the thread of the mounting bracket with the supplied Teflon sealing tape to create a water tight seal around the camera connection. There should be three to five turns around the entire threaded surface. When applying the Teflon sealing tape, be sure to wrap in the same direction that the mount will be tightened.
- Page 13 2. Pull the required cables through the mounting bracket then thread the 1 1/2" NPT locking nut onto the mounting adapter. 3. Install the supplied connectors and wire assemblies to the cables. Installing the Mount Adapter...
-
Page 14: Connecting Cables
4. Installthe11/2”NPTmountadapterbelowthelockingnut. 5. ConnectthesafetylanyardfrominsidetheNPTmountadaptertotheanchoronthedomecamera. Connecting Cables Refer to the diagrams in the Overview section for the location of the different connectors. Connecting Cables... -
Page 15: Securing The Dome Camera
To connect the cables required for proper operation, complete the following: 1. Make sure the safety lanyard is connected to the dome camera. 2. If there are external input or output devices that need to be connected to the camera (for example: door contacts, relays, speakers, etc), connect the devices to the camera I/O connector cable. - Page 16 1. Push the dome camera into the 1 1/2” NPT mount adapter then twist until it locks into place. NOTE:Becarefulnottotrapanycablesbetweenthedomecamerahousingandthemountadapter. 2. Use the Torx key included with the dome camera to tighten the three screws in the mount adapter. Securing the Dome Camera...
-
Page 17: Assigning An Ip Address
Live video stream can be viewed using one of the following methods: Web browser interface: http://<IP address>/ Network video management software application (for example, the Avigilon Control Center software). NOTE: The default camera username is admin and the default camera password is admin. -
Page 18: Aiming The Dome Camera
Aiming the Dome Camera 1. (Optional) To help you aim the dome camera, you can connect an Ethernet cable to the Configuration Ethernet Port. Be aware that while the Configuration Ethernet Port is in use, the primary Ethernet port will only be used for PoE. -
Page 19: Installing The Dome Cover
Additional information about setting up and using the device is available in the following guides: Avigilon Control Center™ Client User Guide Avigilon™ High Definition H.264 Web Interface User Guide Avigilon™ Camera Configuration Tool User Guide Avigilon™ USB Wifi Adapter System User Guide The manuals are available on the Avigilon website: http://www.avigilon.com/support-and-downloads... -
Page 20: Cable Connections
Cable Connections Connecting External Power NOTE: Do not perform this procedure if Power over Ethernet (POE) is used. If PoE is not available, the dome camera can be powered with 24 V AC or 24 V DC through the removable power connector: 1. - Page 21 Figure 1: Example application. 1. Grey — Relay ground return 2. Red — Relay input: To activate, connect the Input to the Ground pin. To deactivate, leave disconnected or apply between 3-15 V. 3. Pink — Relay output: When active, Output is internally connected with the Ground pin. Circuit is open when inactive.
-
Page 22: Led Indicators
LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address. -
Page 23: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. The firmware revert button is shown in the following diagram: NOTE: Be careful not to scratch the dome bubble. -
Page 24: Setting The Ip Address Using The Arp/Ping Method
Setting the IP Address Using the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: 1. Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. 2. Open a Command Prompt window and enter the following commands: a. -
Page 25: Cleaning
Cleaning Dome Bubble If the video image becomes blurry or smudged in areas, it may be because the dome bubble requires cleaning. To clean the dome bubble: Use hand soap or a non-abrasive detergent to wash off dirt or finger prints Use a microfiber cloth or non-abrasive fabric to dry the dome bubble. -
Page 26: Specifications
Specifications Camera 12W-H3-4MH-DP1 – 4 x 3MP 2.8-8 mm, F1.3, P-iris Lens 9W-H3-3MH-DP1 – 3 x 3MP 2.8-8 mm, F1.3, P-iris Audio Input/Output Line level input and output Onboard Storage SD/SDHC/SDXC slot – minimum class 4; class 6 or better recommended Network... - Page 27 Environmental -40 °C to +50 °C (-22 °F to 122 °F) with external power or IEEE 802.3at Type 2 PoE Plus Operating Temperature -20 °C to +50 °C (-4 °F to 122 °F) with IEEE 802.3af Class 3 PoE power Storage -10 °C to +70 °C (14 °F to 158 °F) Temperature...
