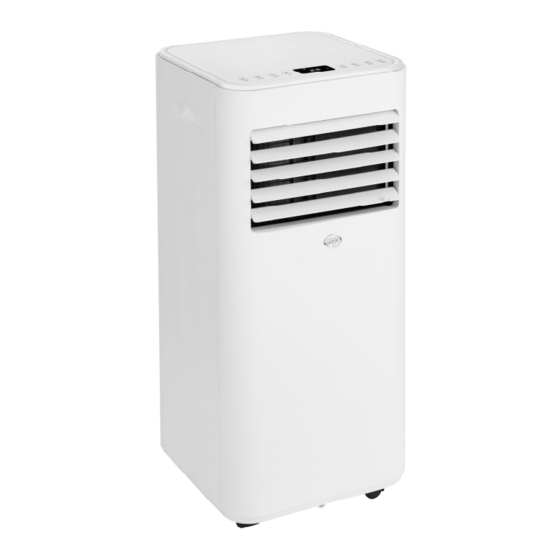

PORTABLE AIR CONDITIONER (LOCAL) LARI OPERATING INSTRUCTIONS Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe all the safety instructions; failure to do so may lead to accidents and/or damage. Store these instructions in a safe place for future reference.
Page 2
Appliance is filled with flammable gas R290. Before installing and using the appliance, read the owner manual. Before installing the appliance, read the installation manual. Any repairs you need, contact the nearest authorized Service Centre and strictly follow manufacturer’s Service Manual. The Refrigerant R290 ...
Page 3
GENERAL OPERATING AND SAFETY INSTRUCTIONS This appliance is a local air conditioner designed for domestic use. Only use this air-conditioner as described in this manual. Ensure that the required voltage and frequency (220-240V/50 Hz) match the available power source. ...
Page 4
Do not use the plug as a means by which to start/stop the air conditioner: use the ON/OFF button on the remote control or on the control panel. Do not install the air conditioner in rooms where it may receive water splashes (e.g.
Page 5
WARNING! The air conditioner must be positioned at least 50 cm from the wall or any other obstacles, on a flat and stable surface so as to avoid water leaks. The air conditioner is fitted with a system for protecting the compressor from overload.
DESCRIPTION OF THE APPLIANCE FRONT VIEW REAR VIEW CONTROL PANEL 5) CASTER AIR OUTLET WITH ADJUSTABLE LOUVER 6) HOLE FOR CONTINUOUS CONDENSATE HANDLE DRAINAGE (IN COOLING MODE) AIR INLET WITH AIR FILTER 7) AIR EXHAUST Min/max operating limits (internal temperature) Cooling: 7°C DB / 35 °C DB Dehumidification: 17°C DB / 35 °C DB Cooling mode room temperature adjustment range: 16 °C DB / 32 °C DB...
APPLIANCE START-UP Open the packaging and pull out the box. Remove the product and the other elements supplied (illustrated in the box below). Infrared remote control Type-AAA – LR03 – 1.5 V batteries for remote control. (Not provided) Round fitting for window unit, to Window unit kit with plug.
Page 8
USE WITH WINDOW UNIT KIT 1. To make the hole in the glass it is advisable to 2. Insert the window unit into the window. take the porthole kit accessory to the glazier. 3. Insert the round fitting into the retractable flexible 4.
HOW TO USE THE APPLIANCE This appliance can be used for cooling, dehumidifying and ventilation purposes. Before using the appliance, leave it standing erect for at least two hours. When switching between modes, the fan continues to turn but the compressor stops: the compressor will re-start after 3 minutes.
For maximum dehumidification efficiency, leave the rear discharge attachment free to discharge directly into the environment. The dehumidification mode is recommended during autumn and winter. If used during summer, it is best to leave the flexible pipe attached so that the hot air is discharged towards the outside rather than into the room.
REMOTE CONTROL OPERATION Slide the cover open in the direction indicated by the arrow. Insert alkaline batteries (type AAA, LR03/1.5 V - not provided) compliant with Battery Directive no.2006/66/EC and amendments Directive 2013/56/EC into the remote control and make sure the poles match. Put the cover back on.
FOR OPTIMAL REMOTE CONTROL OPERATION, POINT THE TRANSMITTER HEAD TOWARDS THE RECEIVER ON THE AIR CONDITIONER. POWER BUTTON TIMER BUTTON DOWN BUTTON COOL BUTTON DRY BUTTON FAN BUTTON UP BUTTON SLEEP BUTTON LOW FAN SPEED BUTTON 10. HIGH SFAN SPEED BUTTON 11.
Page 13
BUTTONS ON CONTROL PANEL 1) POWER BUTTON 5) UP BUTTON 2) MODE BUTTON 6) TIMER BUTTON 3) SPEED BUTTON 7) SLEEP BUTTON 4) DOWN BUTTON 8) CHILD LOCK BUTTON DETAIL OF DISPLAY ON CONTROL PANEL LED fan mode LED cool mode LED Sleep mode LED Dry mode LED child lock...
(8) CHILD LOCK BUTTON Press this key to turn the control panel lock function on or off. TEMPERATURE AND ERROR DISPLAY The display will show the temperature set in cooling mode, while if the unit is operating in dehumidification, the display will show the room temperature.
Page 15
4. Transport. Transport the air conditioner in the vertical position. Should this not be possible, rest it on its right-hand side; when the appliance reaches its final destination, place it immediately in the vertical position and wait at least 4 hours before operating it in cooling mode.
Page 16
Specialist’s Manual Aptitude requirement for maintenance man (repairs. should be done only be specialists). a) Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specifìcation.
Page 17
---lf an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; ---Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected; ---Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.
Page 18
If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. For appliances containing flammable refrigerants, oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.
Page 19
Labelling Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. For appliances containing flammable refrigerants, ensure that there are labels on the equipment stating the equipment contains flammable refrigerant. Recovery When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.
