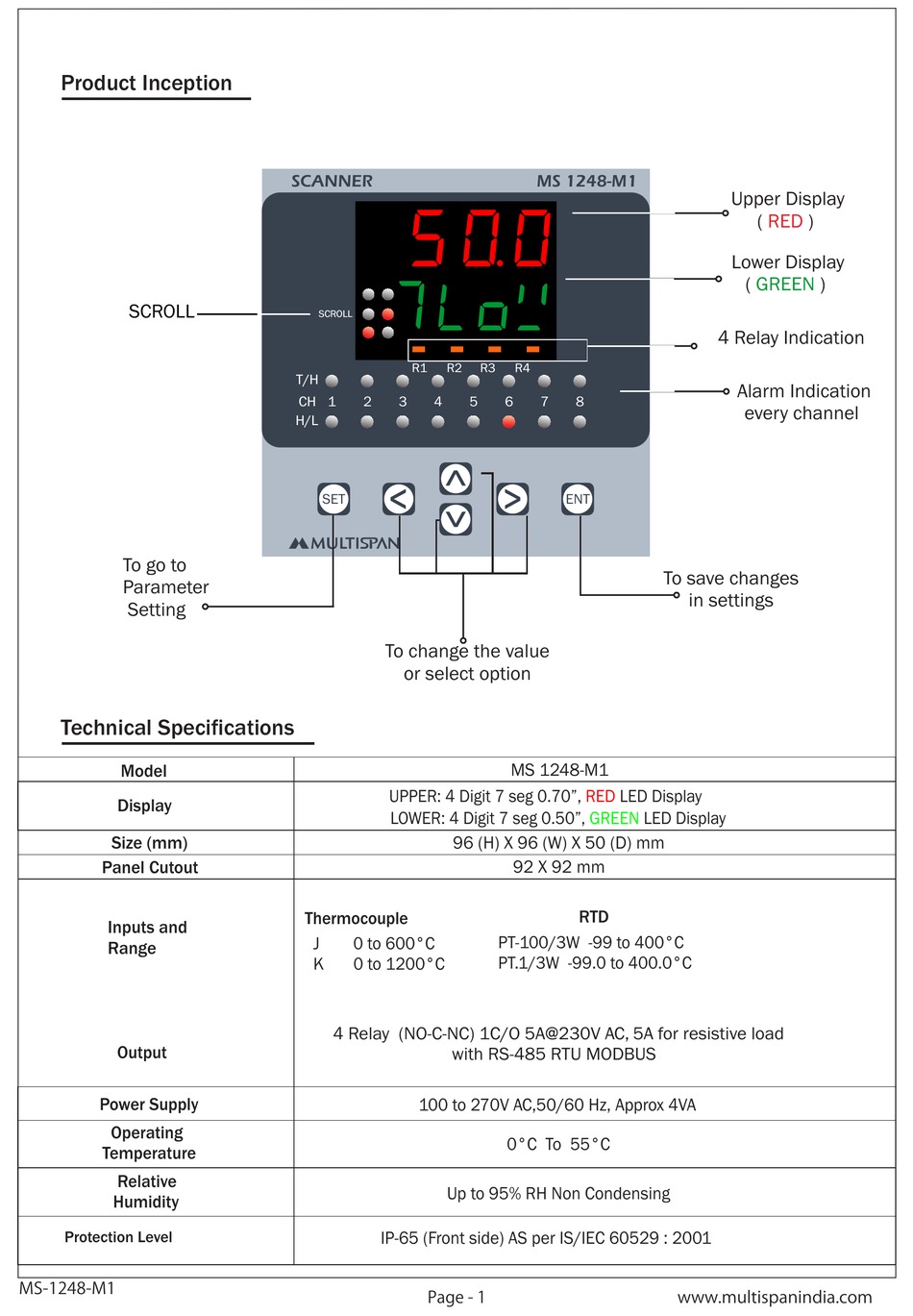

Product Inception
SCROLL
To go to
Parameter
Setting
Technical Specifications
Model
Display
Size (mm)
Panel Cutout
Inputs and
Range
Output
Power Supply
Operating
Temperature
Relative
Humidity
Protection Level
MS-1248-M1
SCANNER
5 0 0
7Low
SCROLL
R1 R2
T/H
CH 1 2 3 4
H/L
SET
To change the value
or select option
UPPER: 4 Digit 7 seg 0.70",
LOWER: 4 Digit 7 seg 0.50",
96 (H) X 96 (W) X 50 (D) mm
Thermocouple
J 0 to 600°C
K 0 to 1200°C
4 Relay (NO-C-NC) 1C/O 5A@230V AC, 5A for resistive load
with RS-485 RTU MODBUS
100 to 270V AC,50/60 Hz, Approx 4VA
Up to 95% RH Non Condensing
IP-65 (Front side) AS per IS/IEC 60529 : 2001
Page
-
1
MS 1248-M1
R3 R4
5 6 7 8
ENT
MS 1248-M1
RED LED Display
GREEN
92 X 92 mm
RTD
PT-100/3W -99 to 400°C
PT.1/3W -99.0 to 400.0°C
0°C To 55°C
Upper Display
( RED )
Lower Display
( GREEN
4 Relay Indication
Alarm Indication
every channel
To save changes
in settings
LED Display
