User Manual

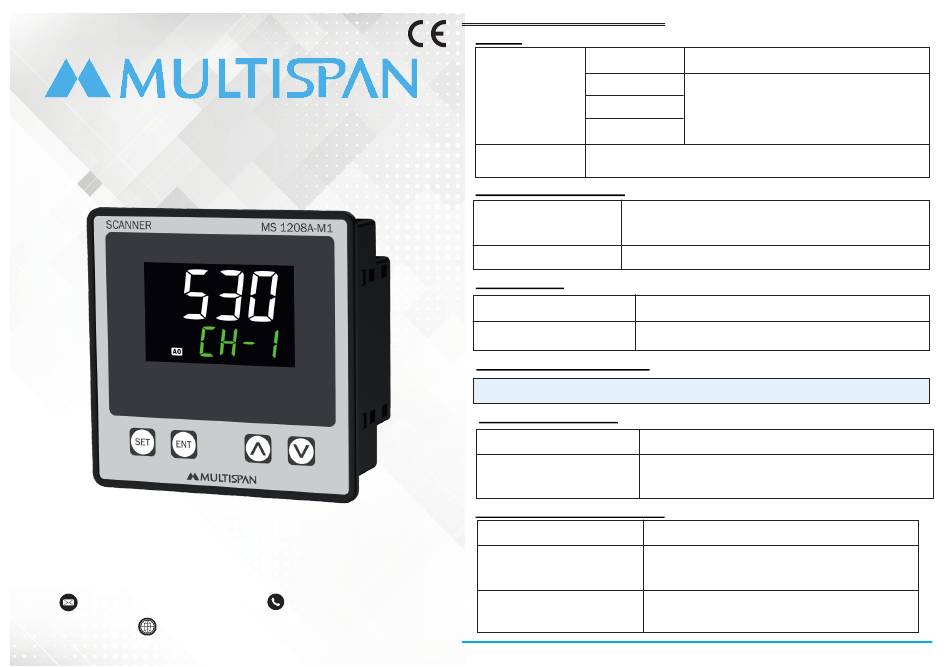

MS-1208A-M1
Multispan Control Instruments Pvt Ltd
72/B, Phase 1, GIDC Estate, Vatva, Ahmedabad-382445, Gujarat, India.
export@multispanindia.com
www.multispanindia.com
Technical Specification
+91-9978991483
INPUT:
Input
0 -10V DC
Input Types
0-20mA DC
4-20mA DC
Class 1.0 (Standard)
ACCURACY:
DISPLAY, KEY & LED:
Display
UPPER : 4 Digit 7 Seg 0.68", White LED
LOWER : 4 Digit 7 Seg 0.43", Green LED
Key
SET, ENT, DEC, & INC
DIMENSION:
101 (H) x 101 (W) x 54 (D) mm
Size
92 (H) x 92 (W) mm
Panel Cutout
OUTPUT SPECIFICATION:
RS-485 Modbus Output
AUXILIARY SUPPLY:
Supply voltage
Power consumption
(VA RATING)
ENVIRONMENT CONDITION:
Operating Temp.
Relative Humidity
Protection Level
(AS Per Request)
Range
-1999 to 9999
DP Selectable
100 To 270V AC,50/60 Hz,
Approx 3VA @ 230V AC MAX,
0°C to 55°C
UP to 95% RH
(non-condensing)
IP-65 (Front side) As per IS/IEC
60529 : 2001
