Safeguard Supply LRA-D1000 - Wireless Door Chime With Strobe Quick Start Manual

Introduction

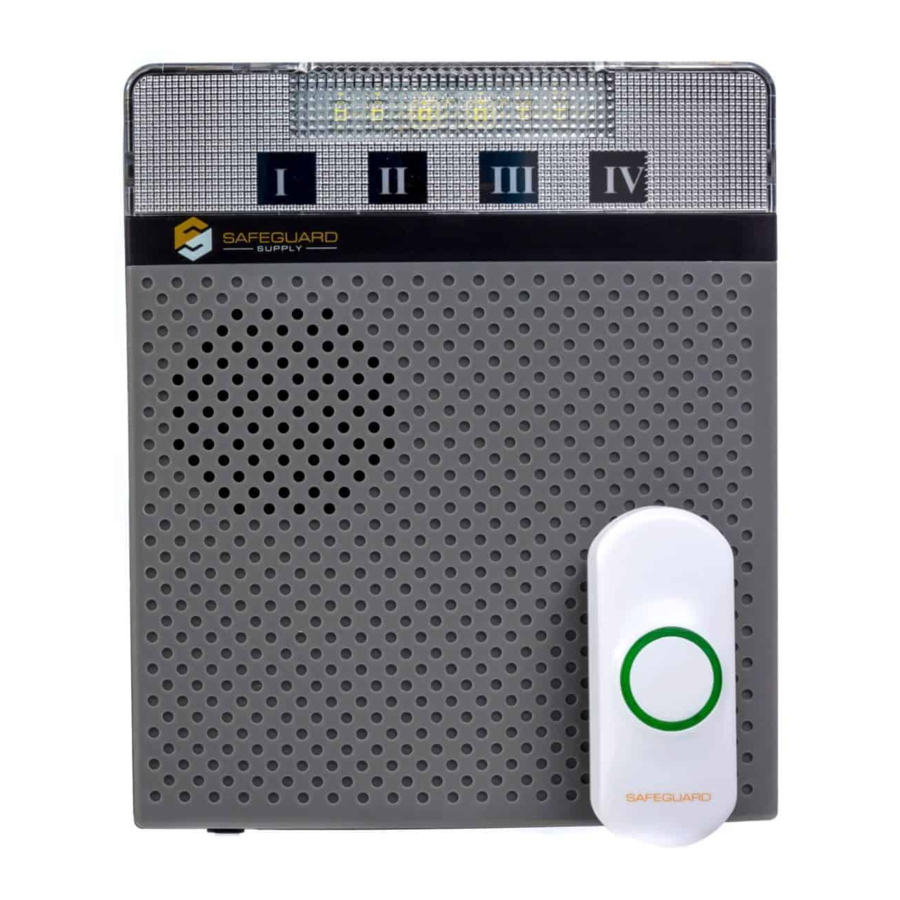

Kit Includes: LRA-DCRX (receiver) + LRA-PBTX (push button)

The LRA-D1000 is wireless door chime kit that that features two components, the LRA-PBTX push button and the LRA-DCRX chime receiver.

All products in the LRA series are compatible with one-another. Systems may be expanded by adding transmitters (push buttons, PIR motion sensors, magnetic door contacts, and outdoor driveway sensors) and /or adding receivers.

Basic Features

• Range from transmitter (push button, motions sensor, etc.) is up to 1,000 ft. line of sight. Environmental objects such as metal, concrete, etc., will diminish the range.
• Powered by 3 x C-sized alkaline batteries (not included). Optional plug-in power cord is available.
• Volume control - zero to 90 dB.
• Flashing strobe.
• Variety of sounds and melodies to choose from.
• Pair this receiver with any LRA transmitters.
• Indoor rated only.

THINGS TO KNOW PRIOR TO USE

• Each LRA-DCRX (receiver) can pair with a total of four (4) wireless transmitters
• Once four (4) transmitters have been added to the receiver you cannot add another unless you delete a transmitter from one of the 4 zones.
• There is no limit to the number of receivers you can pair with a transmitter.
• The receiver is powered by c-sized alkaline batteries or by a plug-in transformer (not included).
• The receiver has 3 (three) modes of operation:

1. chime only
2. chime and strobe
3. strobe only.
   These options are changed using the selector switch on the side of the unit.

• The volume is adjustable using the knob inside the cover of the unit.

SAFEGUARD SUPPLY CONTACT INFORMATION

Phone: (678) 214-4212 | email: info@safeguardsupply.com
2260 Moon Station Ct. NW #110 | Kennesaw, GA 30144 USA

PARTS & FUNCTION

BATTERY INSTALLATION

RECEIVER MOUNTING OPTIONS

Mounting with screws

Requires an electric drill for holes to fix the wall bracket with the provided ram plug and screws.
Put the bell press to the bracket

Mounting With Double-sided adhesive

Stick the double-sided adhesive on the mounting bracket.

stick the bracket on the door frame.

CODE MATCHING & TUNE SELECTION

1. Insert the battery into the transmitter to be used (doorbell button).
2. Insert the batteries into the receiver (chime unit).
3. Enter pairing mode for the receiver (chime unit). Press and hold the • zone selector button for 3 seconds. The LED in zone #1 will flash.

4. Press the • zone selector button again to move to the zone you wish to pair with. Press the melody selector button to scroll through the melodies. Once you hear a melody you prefer, do not press any button as the melody is set for that zone.

5. Once the zone & melody are selected, trigger the pusher once to pair. If successful, the receiver (chime unit) will generate two short tones. Press the • zone selector button to exit the pairing mode, the system is now ready to use.
   To stop the Chime while the receiver (chime unit) is alerting press the reset button located on back, upper right-hand corner.

DELETE A TRANSMITTER (PUSH BUTTON) FROM A ZONE ON RECEIVER

First, Press and hold the 'Zone selector' button for 3 seconds to enter the programming mode. Press the 'Zone selector' button to select the zone you want to delete. Press and hold both the 'Zone selector' and the 'Melody' button for approximately 5 seconds. The chime will generate a tone to indicate the remote on this zone has been deleted.

CHANGING THE MEDLODY FOR A ZONE

First, Press and hold the 'Zone selector' button for 3 seconds to enter programming mode. Press the 'Zone selector' button to select the zone you want to change. Press the 'Melody' button to select the new melody/tone and then push button. You will hear a tone to indicate the melody has been changed.

BATTERY LOW INDICATOR

If a zone LED light is blinking, it indicates that the battery is low for this transmitter. You must replace the battery as soon as possible. If the white flash at the top of the Chime blinks every 5 seconds, this indicates the receiver batteries are low. You must replace the batteries of the receiver.

CODE CONFLICT

In rare situations the push button frequency coding is the same as another transmitter. In this case you must change the code on the transmitter.

TECHNICAL SUPPORT

If you need assistance with the operation of this product, please contact us. You can reach us by phone at 904-245-1184 from 8:00AM to 5:00PM Monday through Friday, EST. You may also reach us via email at info@safeguard-supply.com
