Introduction

The ERA-UTX is a Universal Transmitter compatible with the ERA-DCRX
Receiver and is included in the kit. The ERA-UTX has several methods
of activation. First, it has a push button that can be used as a panic
button or doorbell button. The ERA-UTX also has terminals for a normally
open (N/O) or normally closed (N/C) input. These inputs can be used
with any detector contacts. There is also a magnetic contact that can
be used for doors or windows. When the transmitter is activated, it will
send a signal to the receiver which will sound one of 12 different tones for
a few seconds, and trigger the connected strobe light to flash.

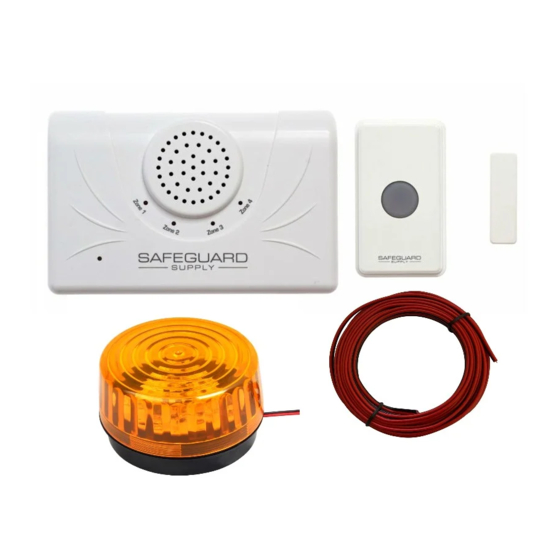

What;'s in the Kit:
• ERA-UTX transmitter with mounting bracket & hardware
• ERA-DCRX
• Strobe light
• Wire (if needed)
Helpful Notes
• Each receiver is capable of pairing with four (4) transmitters per zone.
• Each zone features 1 x 12V DC output.
• Output duration for the 12V DC output may be set to 5 sec, 10 sec, 1
min, & 2 min. The receiver features 1 x C-Form relay assignable to one
or multiple zones & will take on the duration of the 12V DC output.
• Volume control: 4 levels plus mute, plus off.
• Each transmitter must be paired to a zone on the receiver.
• Each zone is programmed to the "ding-dong" sound from the factory.
User may change this melody.
• When transmitter battery is low, it sends a signal to the receiver when
triggered & the corresponding LED on the receiver will continue to
flash for 10 minutes & the receiver will double-play the melody..

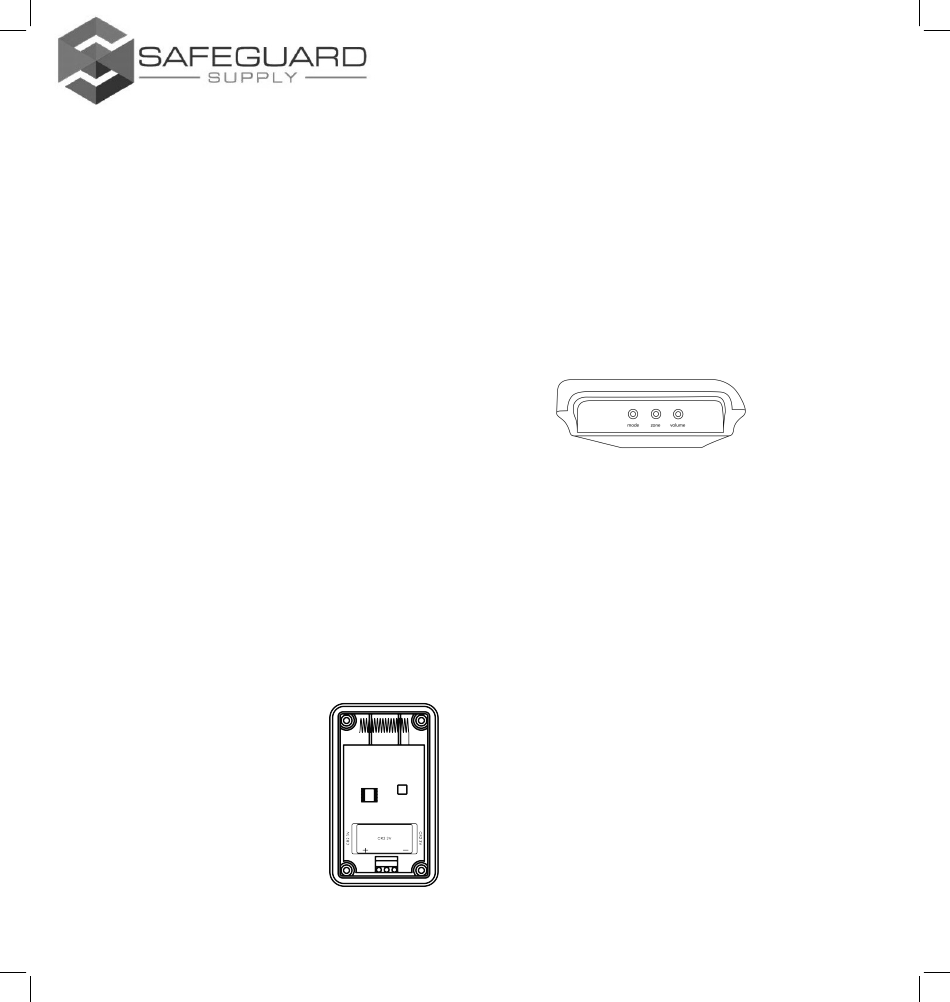

Battery Installation:

1. Flip over the ERA-UTX & remove the gray
silicon grommets (one per corner). The screws
are under the grommets.
2. Remove the four screws on the back of the
case and open to find the battery compartment.
(Figure 1)
3. Remove top half of case from lower case.
4. Install the included CR-2 battery in the holder
(Figure 1).
5. Re-tighted screws & insert grommets.
6. Note: When battery gets weak, it will cause
paired zone to flash LED on receiver for 10
minutes when triggered.

LED Indicator Light in Button:

The default setting is for the LED indicator to light up for two seconds
when the ERA-UTX is activated.

Pair Transmitter to Receiver:

(Always test unit prior to installation)
The transmitter works with the ERA-DCRX receiver & basic programming
calls for the user to pair the transmitters with a receiver & select a
melody for the transmitter to instruct the receiver to play when
triggered.
For quick setup, however, each zone defaults to a basic "ding-dong" sound allowing
you to easily pair the transmitter for a faster set up process.
1. On the ERA-DCRX receiver, hold down the "mode" (left button in
figure 2 below) button until you hear a short tone sound & the "zone
1" LED flashes.
2. If you are programming the transmitter to zone 1, press the gray
button on your transmitter. You will hear the receiver play a short
musical note (zone 1 will continue to flash).
3. To program a transmitter to a different zone, press the "zone" button
on the receiver to scroll to the appropriate zone . The zone you want
to program will flash. Repeat step 2 above.
4. Once you have programmed all the zones move to the next step.
5. To exit program mode, hold down the "mode" button until you hear
a short tone sound (approx 3 sec)

Changing the Zone Melody:

By default, each zone is programmed by the factory
to play the ding-dong sound
1. Hold down the "zone" button until you hear a short tone & all
LEDs on front panel of receiver are red (approx 3 seconds). The
zone you are programming will flash.
2. Press the "volume" button to scroll through the 12 available
melodies for selection. Once you find a melody you like, move to
step 3.
3. Press the "zone" button to scroll to the next zone & repeat step 2
to program a melody to other zones.
4. Once you have programmed a melody to all necessary zones,
move to step 5.
5. Hold down the "zone" button until you hear a short tone sound
(approx 3 seconds) notifying the receiver is out of melody
programming mode.

Volume, Mute, Off:

The volume button on the side of the receiver controls the four different volume
levels, mutes & turns off the receiver. Pushing the volume button controls these
functions.
• When all four zone LED lights are red, this indicates maximum
volume.
• Three zone LED lights indicate the third volume level.
• Two zone LED lights indicate the second volume level.
• One zone LED light indicates the minimum volume level.
• No zone LED lights & a red power indicator light means the
sound is muted.
(Figure 1)
• No LED lights (no zone LED or power indicator) means the unit is
off. Pushing volume again turns it back on to max volume.
(Figure 2)
