Safeguard Supply ERA-PIR-SPK Owner's Manual

ERA-PIR-SPK
Owner's Manual
Introduction
The ERA-PIR-SPK is a passive infrared (PIR) sensor with an internal
speaker that is activated when a combination of heat &
movement is detected in the monitored zone. When the sensor
is activated, the internal speaker will play one (1) of three (3)
different tones. The unit was designed so you can mount the
bracket on the door frame or wall and easily pivot the lens to
optimize the desired monitored zone.
Helpful Tips:
• Do not mount the speaker to the wall or door frame until you
have successfully setup and tested the device.
• Volume control: 4 levels & set to highest volume level at the
factory.
• Each unit is programmed to the "ding-dong" sound from the
factory. User may change this melody.
• If you are happy with the preset volume & tone, you can skip
the step titled "Setting the Tone and Setting Volume Level"
section of this manual.
• When battery is low a special tone is emitted. See "Note" in
battery installation section of manual below.
• The unit resets every 5 seconds after each activation.
ERA-PIR-SPK Battery Installation:
The sensor is powered by a 9V alkaline battery. Follow the steps below to
remove the cover and install the battery. Note: Program the tone and
volume level prior to reassembling the unit.

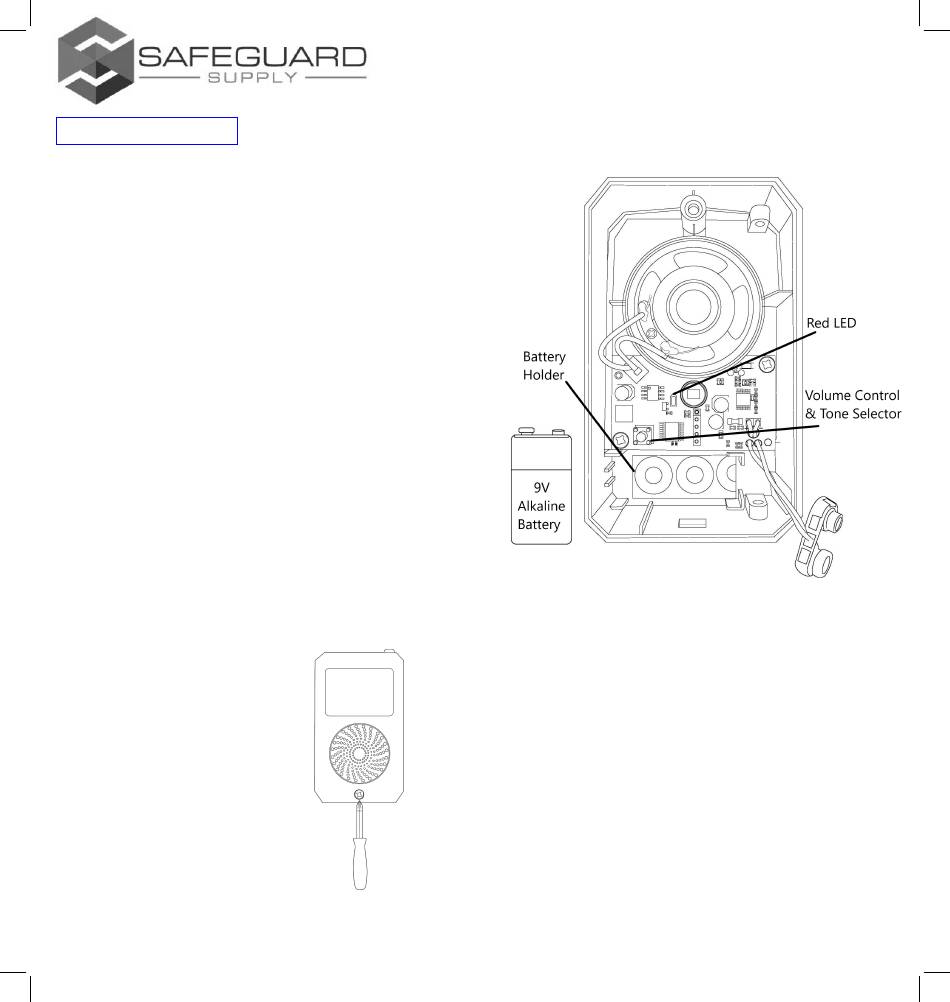

1. Remove the screw located on the
backside of the case using a phillips
head screwdriver (see figure 1). Once
the screw is removed, open the case.
2. Remove top half of case from lower half
of the case to find the battery holder
(see figure 2).
3. Install a fresh 9-volt alkaline battery.
4. Follow the instructions for
"Setting the Tone and Volume Level"
prior to reassembly.
Note: When motion is detected & the battery is weak, 2 seconds
after the alert tone plays, the unit will emit a "Beep Beep" every 5
seconds, repeating 5 times. This is notice that the battery should
be changed.
Setting the Tone and Setting Volume Level
Setting the Tone:
By default, each zone is programmed by the factory to play the
ding-dong sound at the highest volume level. You can skip this
step if you are OK with this tone and volume level.
1. Hold down the "volume control and tone selector" button for
approximately 3 seconds until the RED LED on the board is
lighted (see figure 2). The solid red light lets you know the unit
is in program mode. When the LED is red, release the button.
2. Press the "volume control and tone selector" button to scroll
through the 3 available tones, stopping at the one you like.
3. Hold down the "Volume control and tone selector" button
until the red LED goes off. No red LED means the unit IS NOT
in programming mode.
figure 1.
Note: Unit will exit programming mode automatically after 5
seconds with no activity.
figure 2.
