Safeguard Supply LRA-D1000 Quick Start Manual

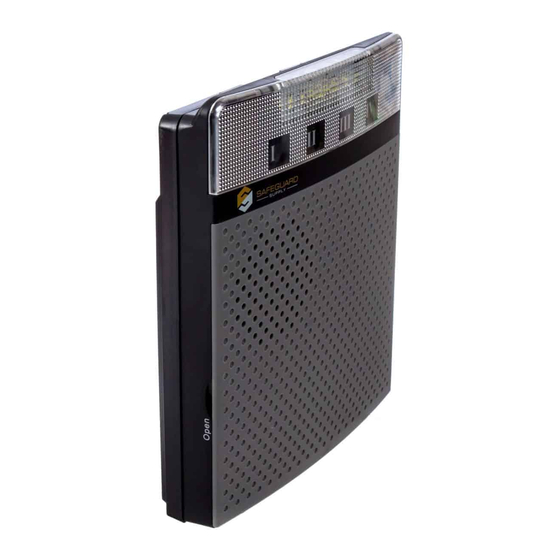

LRA-D1000 Wireless Door Chime with Strobe
Kit Includes: LRA-DCRX (receiver) + LRA-PBTX (push button)
The LRA-D1000 is wireless door chime kit that that features two components, the LRA-PBTX
push button and the LRA-DCRX chime receiver.
All products in the LRA series are compatible with one-another. Systems may be expanded by
adding transmitters (push buttons, PIR motion sensors, magnetic door contacts, and outdoor
driveway sensors) and /or adding receivers.
Basic Features
• Range from transmitter (push button, motions sensor, etc.) is up to 1,000 ft. line of sight.
Environmental objects such as metal, concrete, etc., will diminish the range.
• Powered by 3 x C-sized alkaline batteries (not included). Optional plug-in power cord is
available.
• Volume control - zero to 90 dB.
• Flashing strobe.
• Variety of sounds and melodies to choose from.
• Pair this receiver with any LRA transmitters.
• Indoor rated only.
THINGS TO KNOW PRIOR TO USE
• Each LRA-DCRX (receiver) can pair with a total of four (4) wireless transmitters
• Once four (4) transmitters have been added to the receiver you cannot add another
unless you delete a transmitter from one of the 4 zones.
• There is no limit to the number of receivers you can pair with a transmitter.
• The receiver is powered by c-sized alkaline batteries or by a plug-in transformer (not
included).
• The receiver has 3 (three) modes of operation: 1) chime only, 2) chime and strobe, and 3)
strobe only. These options are changed using the selector switch on the side of the unit.
• The volume is adjustable using the knob inside the cover of the unit.
SAFEGUARD SUPPLY CONTACT INFORMATION
Phone: (678) 214-4212 |email: info@safeguardsupply.com
2260 Moon Station Ct. NW #110 | Kennesaw, GA 30144 USA
PARTS & FUNCTION
Volume control
Function Switch
Flasher
Zone LED
Speaker
Zone selector
button
Battery compartment
Battery cover
Push button
Battery
compartment
BATTERY INSTALLATION
LRA-DCRX Chime Receiver
3 x 'C' size
LRA-PBTX Push Button
Open the cover
Wire Clip
On 5
Cancel Off 2
Melody
Output
selector button
delay
Relay
Output
control
On
Off
Pad 12V
Pad On Ready
CR2032
