Replace Sensor Battery - SmartVent SYN1015AD Installation Instructions Manual

MAINTENANCE
F7 and HEPA Filters
Filter Grade
F7
F7 Carbon
1)
HEPA Carbon
1)
Caution: When switching to a different grade of filter, remember to modify the
KITS SETTINGS to get the correct filter change reminder.
See the INSTALLATION INSTRUCTIONS / Commissioning and Testing
for instructions

Replace Sensor Battery

The original battery provided with sensors is expected to last between
2 to 5 years or more.

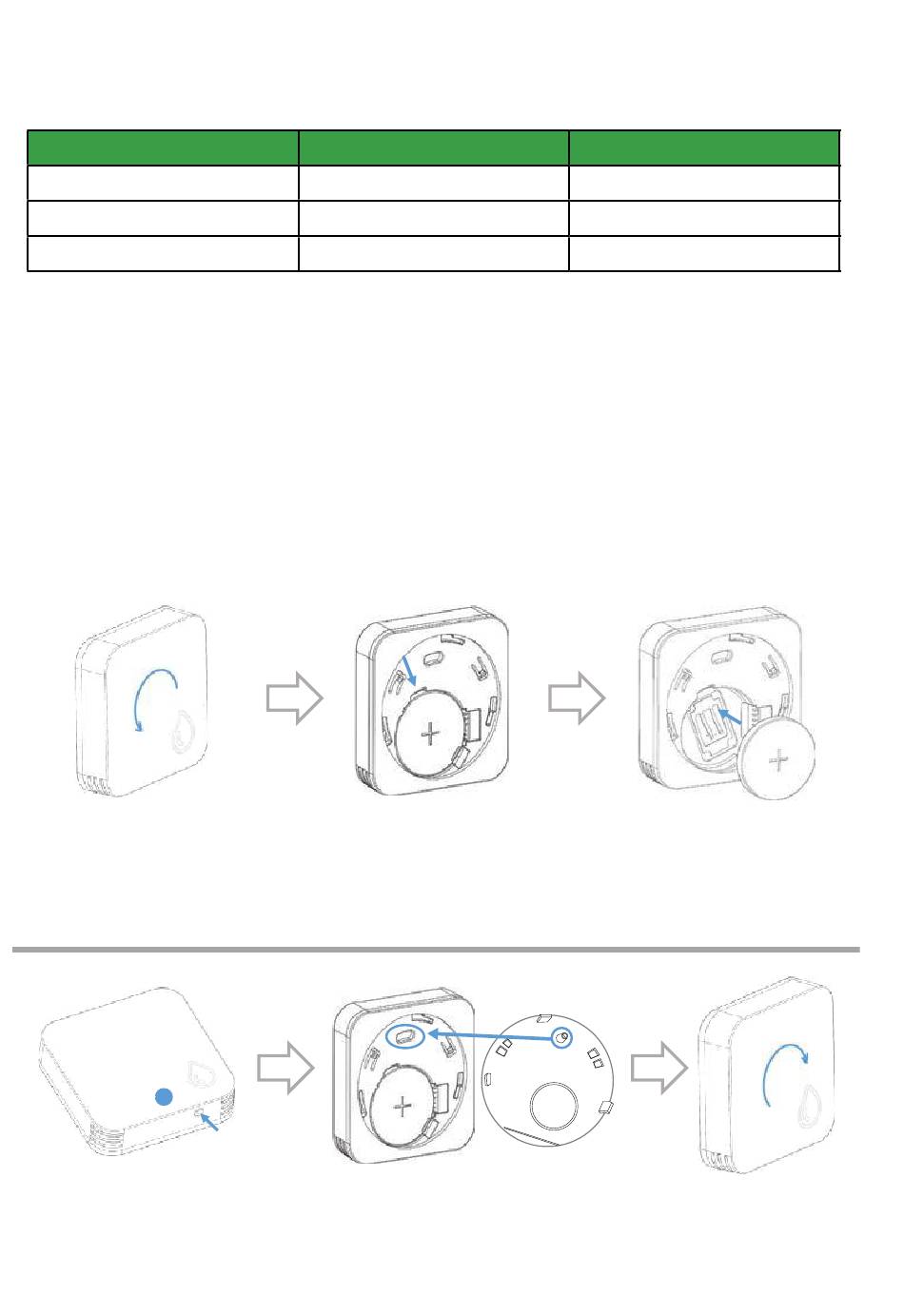

Step 1
❶
Turn the unit counter-clockwise
gently. The lid should separate
from the unit with an audible click.
The battery compartment lid will
remain adhered to the wall/ceiling.
LED
Step 5
❹
Wait >3sec. Press the small button
on the underside of the unit and
observe the LED should flash once.
(if not, see troubleshooting guide)
18
Order Code
FAN2093
FAN2277
FAN2278
Step 2
❷
Leverage the CR2032 coin cell from
the compartment using a small tool
as shown in image. Then insert the
replacement battery back into the
compartment.
Step 6
❺
Replace the unit back onto the battery compartment lid.
Turn the unit clockwise gently. Locking the unit on the lid.
Note: Alignment guide must be inserted into the alignment slot when putting
the battery cover on.
Typical Life
12 months
6 months
6 months
Step 3
❸
Insert the replacement battery
back into the compartment.
