Ceiling Controller - SmartVent SYN1015AD Installation Instructions Manual

INSTALLATION

Ceiling Controller

Locations
- Mount the ceiling controller on the lower half of the roof cavity.
- Make sure mains supply has been isolated before making any electrical connection.
- Locate the ceiling controller central to planned sensor location - favouring any sensors
that may have concrete or brick walls in the way.
- Ensure the ceiling controller is in a location with good Wi-Fi signal strength.
- Avoid mounting near large metal bodies e.g. hot water cylinders, antennas,
heat pump AHU, switch panels, etc.
CAUTION: Avoid running TSC data cables in parallel with mains cables. If this is unavoidable,
try to keep at least a 0.2m distance.
Connection

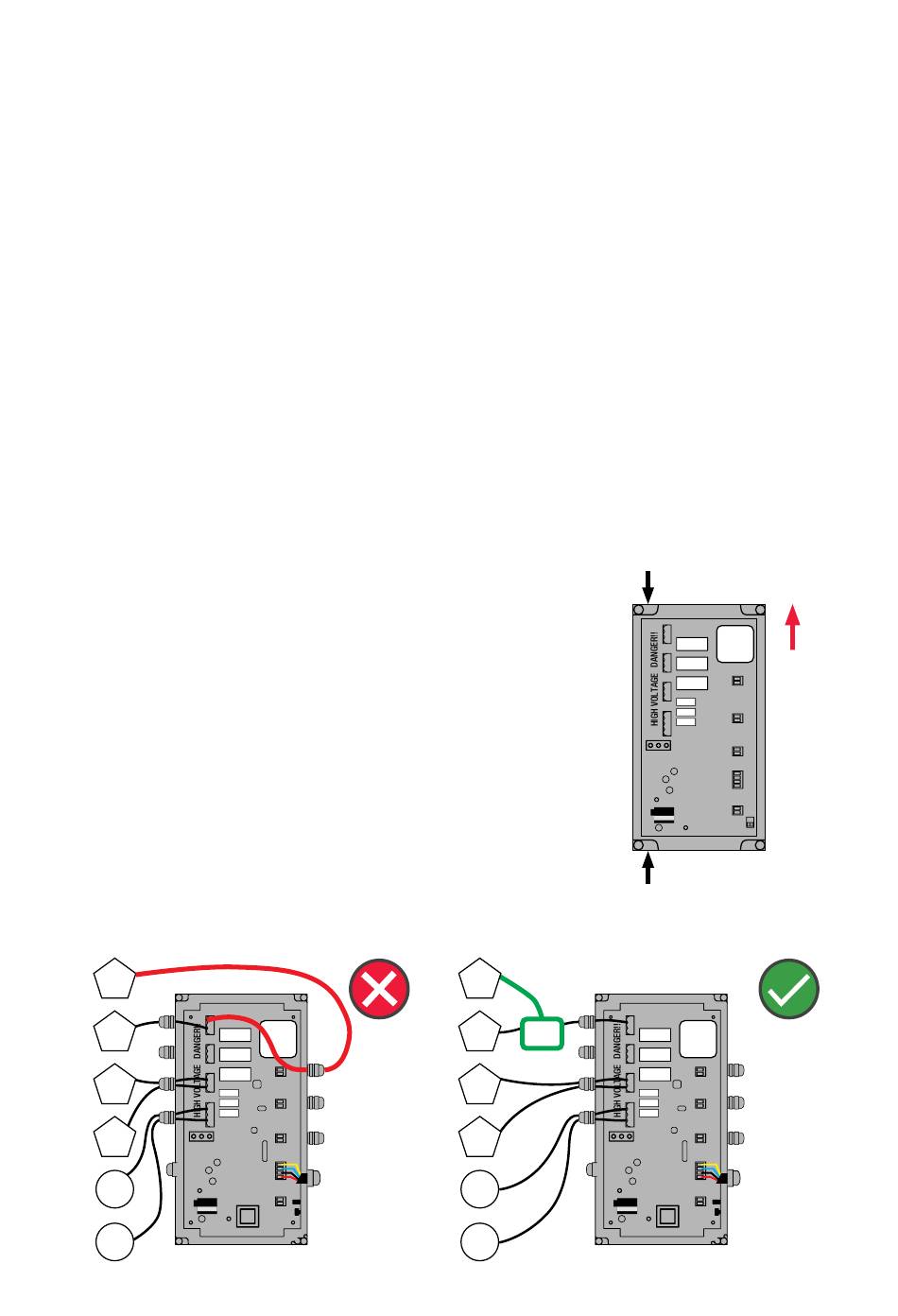

1. Mount the ceiling controller using the mounting holes on the side with damper
connection and transformer. Ensure the white sensor receiver module is facing upwards.
2. Thread the TSC cable through the cable gland,
wire to the connector and plug into the ceiling controller
(refer to wiring diagram, page 6).
3. Connect all peripherals: fans and dampers.
4. Make sure the earth spade on the fan is connected
to the earth block in the ceiling controller.
5. Make sure all cable glands are tightly fastened
and secured to the ceiling controller.
6 . DO NOT cross cables over the PCB to reach for
apertures on the far side. Use an AC fan junction box
or AC damper junction box (FANxxxx) if there are
not enough apertures on the controller box (FANxxxx).
Mounting
Screw
Up
Mounting
Screw
11
