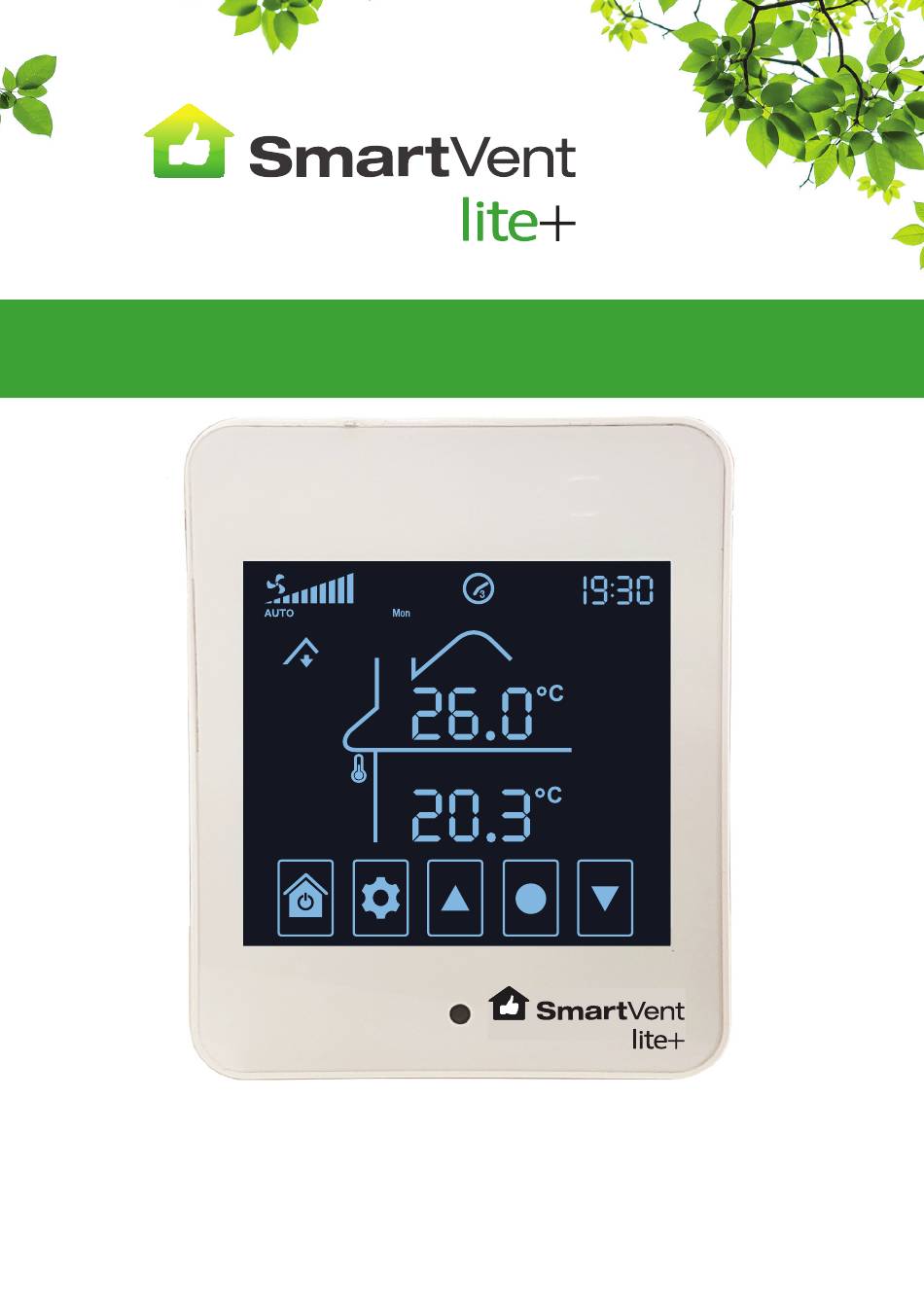

- Page 1 HOME VENTILATION SYSTEMS Firmware Version 3.4 User Manual Your guide to a healthier home...
- Page 2 Warning - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Children should be supervised to ensure that they do not play with the appliance.
-
Page 3: Table Of Contents
SmartVent Lite+ System Firmware Version 3.4 Contents Home Screen Icons ........................4 Button Functions ......................... 4 Screen Highlights ........................5 Modes Auto Operation and Temperature Setting ................. 5 Manual Operation and System Fan Speed Setting ..............5 Boost ............................ 6 Recycle .......................... -
Page 4: Home Screen Icons
Home Screen Icons System Fan Speed Ventilation Mode Air Source Indicator Recycle ON Temperature Sensing ON Dew Control Mode ON Dew Point Temperature Home and Power Settings Select Down Fresh Air Temperature 1) Ventilation mode selections are AUTO or MAN (manual) Fresh Air Relative Humidity 2) The SET icon will appear when the temperature is being changed and the Current Room Temperature or... -
Page 5: Modes
Auto Operation and Temperature (TEMP) Setting Your SmartVent Lite+ system can choose at what speed to draw air depending on the indoor and outdoor air temperatures, when in AUTO. If the system is in either BOOST or RECYCLE modes, the fan will, instead, operate at the speeds set for those particular modes. -
Page 6: Boost
VENTILATION mode and the roof cavity temperature exceeds the maximum roof cavity temperature (default = 30ºC) setting, or goes below the minimum roof cavity temperature (default = 5ºC) setting, your SmartVent system will limit the amount of air entering your home. -
Page 7: Relative Humidity
Relative Humidity The current Relative Humidity percentages in the roof cavity and the room can be viewed at any time. - On the Home Screen, press UP , or DOWN , for 3 seconds to display the Relative Humidity percentages in both the roof cavity and the room - The display will automatically return to the Home Screen after 3 seconds 3 secs... -
Page 8: System Time-Date Settings
System Time-Date Settings ystem Time-Date Settings must be entered before system functions, such as scheduled start times, can be set. - On the Home Screen, press SETTINGS for 3 seconds to enter Time-Date Settings and follow the guide below to complete NOTE: Settings shown are examples only - Press HOME at any stage to exit and enter Scheduler Settings... -
Page 9: System Operating Settings
System Operating Settings Scheduler Settings Setting the Scheduler is only necessary if you wish to control whether the system is OFF or ON during each of the four periods available in a 24 hours period. A period start time is also the previous period end time. - On the Home Screen, press SETTINGS for 3 seconds then press HOME to enter Scheduler Settings and... -
Page 10: Period Off/On Settings
System Operating Settings Period OFF/ON Schedule Set VENTILATION mode to AUTO operation (see page 5). Fan speed will adjust automatically based on the Dew Point and then indoor/outdoor air temperatures. If system is in either BOOST or RECYCLE modes, the fan will operate at speeds set for those modes. - On the Home Screen, press SETTINGS to enter Period OFF/ON Schedule and follow the guide below to complete the fan OFF/ON settings for each of the four periods available in a 24 hour period. -
Page 11: Period Schedule Log
Advanced Settings Advanced Setting Selection Advance Settings enable you to change your SmartVent Lite+ system settings at any time to ensure you gain maximum benefit of comfortable living conditions in a healthy home. Access to Advanced Settings is disabled when RENTAL mode is ON. -
Page 12: Advanced Settings Menu
Advanced Setting Menu SETTING DESCRIPTION RANGE DEFAULT NOTE Hardware Version Firmware Version Temperature - Room -10°C - 10°C -2.5°C Temperature - Roof Cavity -10°C - 10°C 0°C Screen Brightness - Maximum 0 - 100% Screen Brightness - Minimum 0 - 100% Boost Time 0 min –... -
Page 13: Troubleshooting
If there are multiple faults the error codes will cycle to the next code periodically. Contact SmartVent for assistance if error codes not listed above appear or the actions above do not clear the errors. -
Page 14: Technical Specifications
Technical Specifications TOUCH SCREEN CONTROLLER V3.4 Temperature Range 5-35ºC adjustable Display Resolution 0.1ºC Operating Voltage/Frequency 220-240V AC, 50Hz Switching Voltage 240V AC Max Switching Current 3A max resistive load Sensing Element Thermistor Operating Temperature 0 to 40ºC Operating Humidity 5-90% non condensing Live Output Isolation Relay Output Control... - Page 16 Contact: 0800 140 150 enquiry@smartvent.co.nz Distributed by Simx Limited PO Box 14347, Panmure, Auckland, New Zealand. Technical Support (09) 259 1662 | e: sales@simx.co.nz | w: www.simx.co.nz PUB1637 2011...
