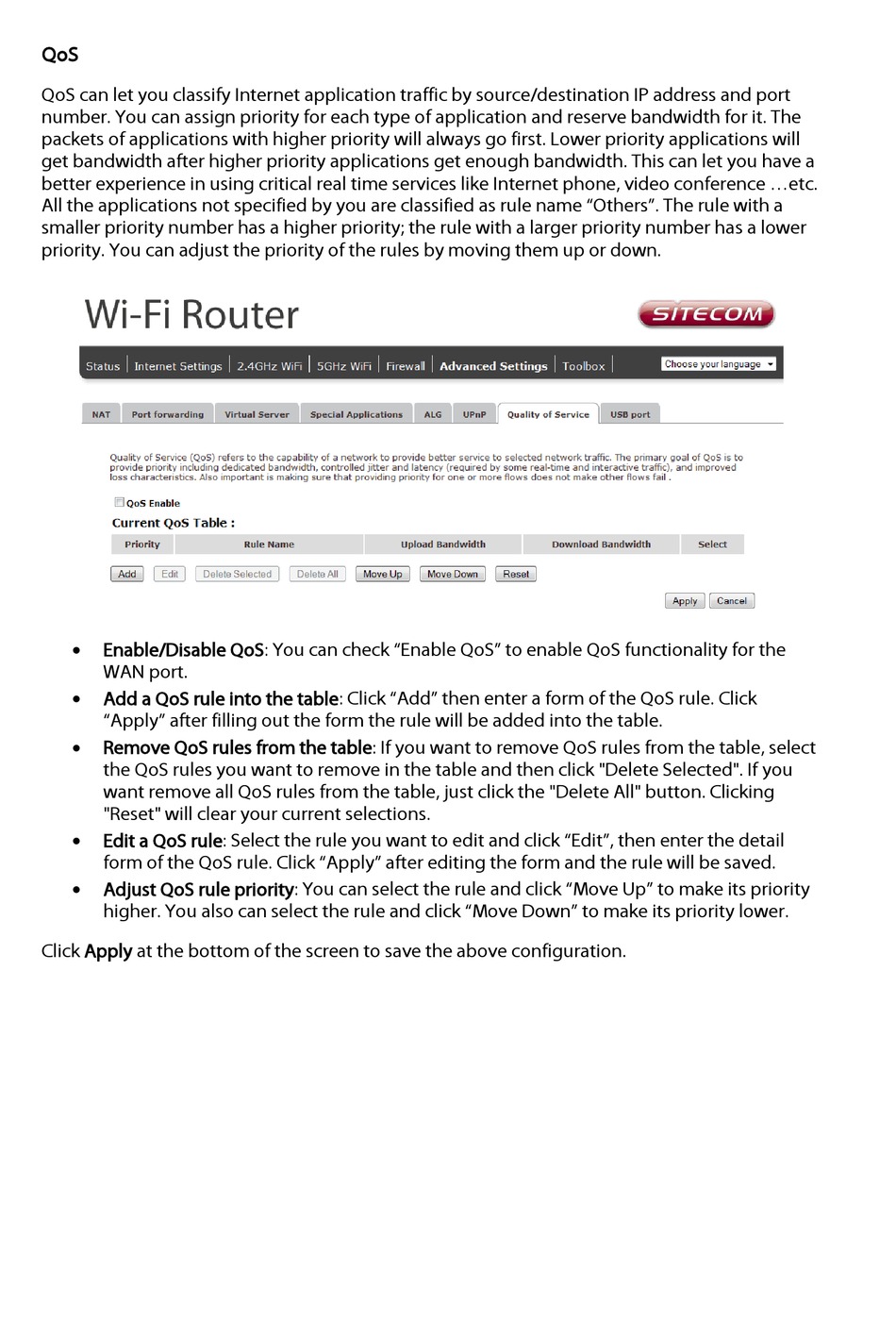

QoS
QoS can let you classify Internet application traffic by source/destination IP address and port
number. You can assign priority for each type of application and reserve bandwidth for it. The
packets of applications with higher priority will always go first. Lower priority applications will
get bandwidth after higher priority applications get enough bandwidth. This can let you have a
better experience in using critical real time services like Internet phone, video conference ...etc.
All the applications not specified by you are classified as rule name "Others". The rule with a
smaller priority number has a higher priority; the rule with a larger priority number has a lower
priority. You can adjust the priority of the rules by moving them up or down.

Enable/Disable QoS: You can check "Enable QoS" to enable QoS functionality for the
WAN port.

Add a QoS rule into the table: Click "Add" then enter a form of the QoS rule. Click
"Apply" after filling out the form the rule will be added into the table.

Remove QoS rules from the table: If you want to remove QoS rules from the table, select
the QoS rules you want to remove in the table and then click "Delete Selected". If you
want remove all QoS rules from the table, just click the "Delete All" button. Clicking
"Reset" will clear your current selections.

Edit a QoS rule: Select the rule you want to edit and click "Edit", then enter the detail
form of the QoS rule. Click "Apply" after editing the form and the rule will be saved.

Adjust QoS rule priority: You can select the rule and click "Move Up" to make its priority
higher. You also can select the rule and click "Move Down" to make its priority lower.
Click Apply at the bottom of the screen to save the above configuration.
