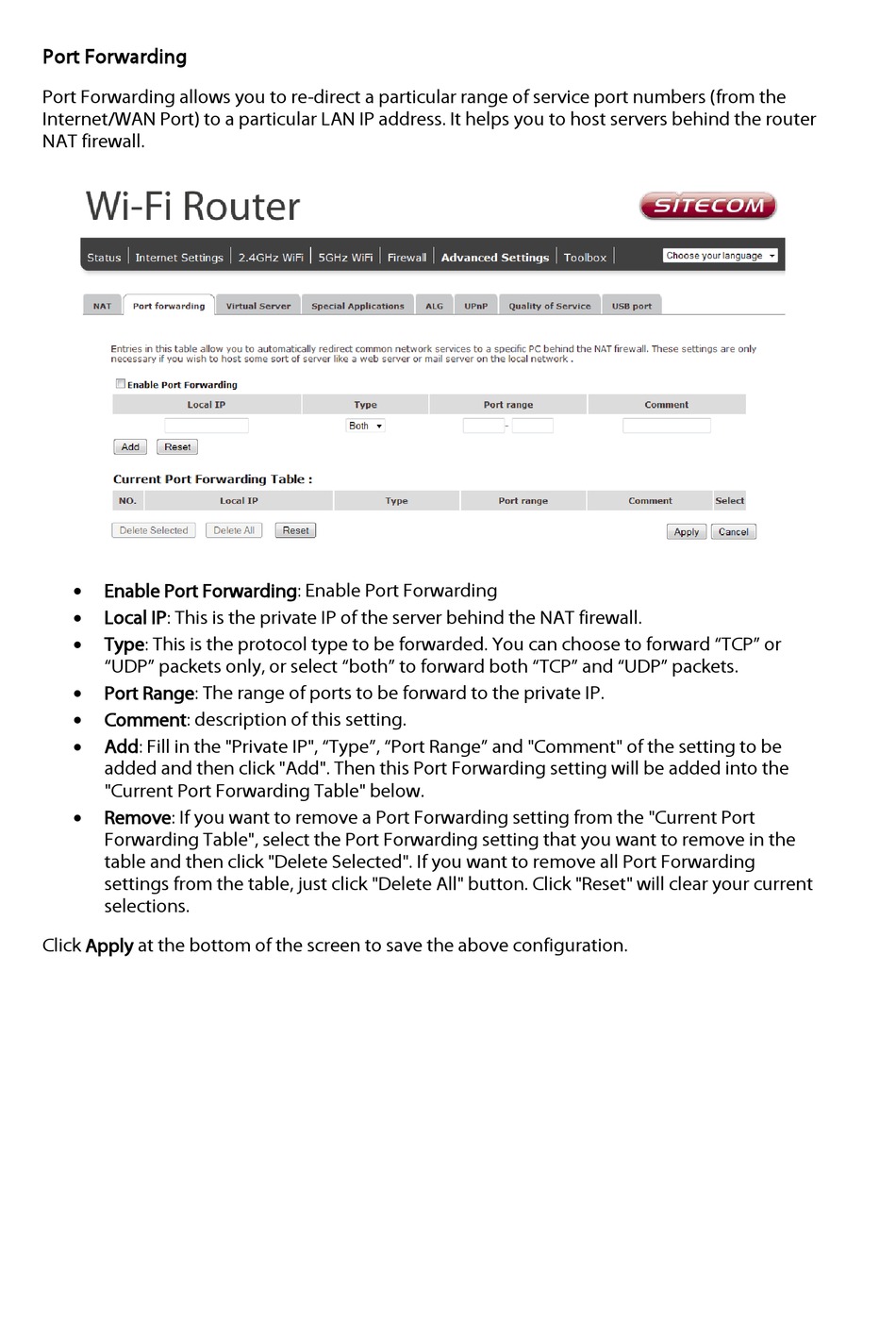

Sitecom WLR-8200 User Manual page 36

Port Forwarding
Port Forwarding allows you to re-direct a particular range of service port numbers (from the
Internet/WAN Port) to a particular LAN IP address. It helps you to host servers behind the router
NAT firewall.

Enable Port Forwarding: Enable Port Forwarding

Local IP: This is the private IP of the server behind the NAT firewall.

Type: This is the protocol type to be forwarded. You can choose to forward "TCP" or
"UDP" packets only, or select "both" to forward both "TCP" and "UDP" packets.

Port Range: The range of ports to be forward to the private IP.

Comment: description of this setting.

Add: Fill in the "Private IP", "Type", "Port Range" and "Comment" of the setting to be
added and then click "Add". Then this Port Forwarding setting will be added into the
"Current Port Forwarding Table" below.

Remove: If you want to remove a Port Forwarding setting from the "Current Port
Forwarding Table", select the Port Forwarding setting that you want to remove in the
table and then click "Delete Selected". If you want to remove all Port Forwarding
settings from the table, just click "Delete All" button. Click "Reset" will clear your current
selections.
Click Apply at the bottom of the screen to save the above configuration.
