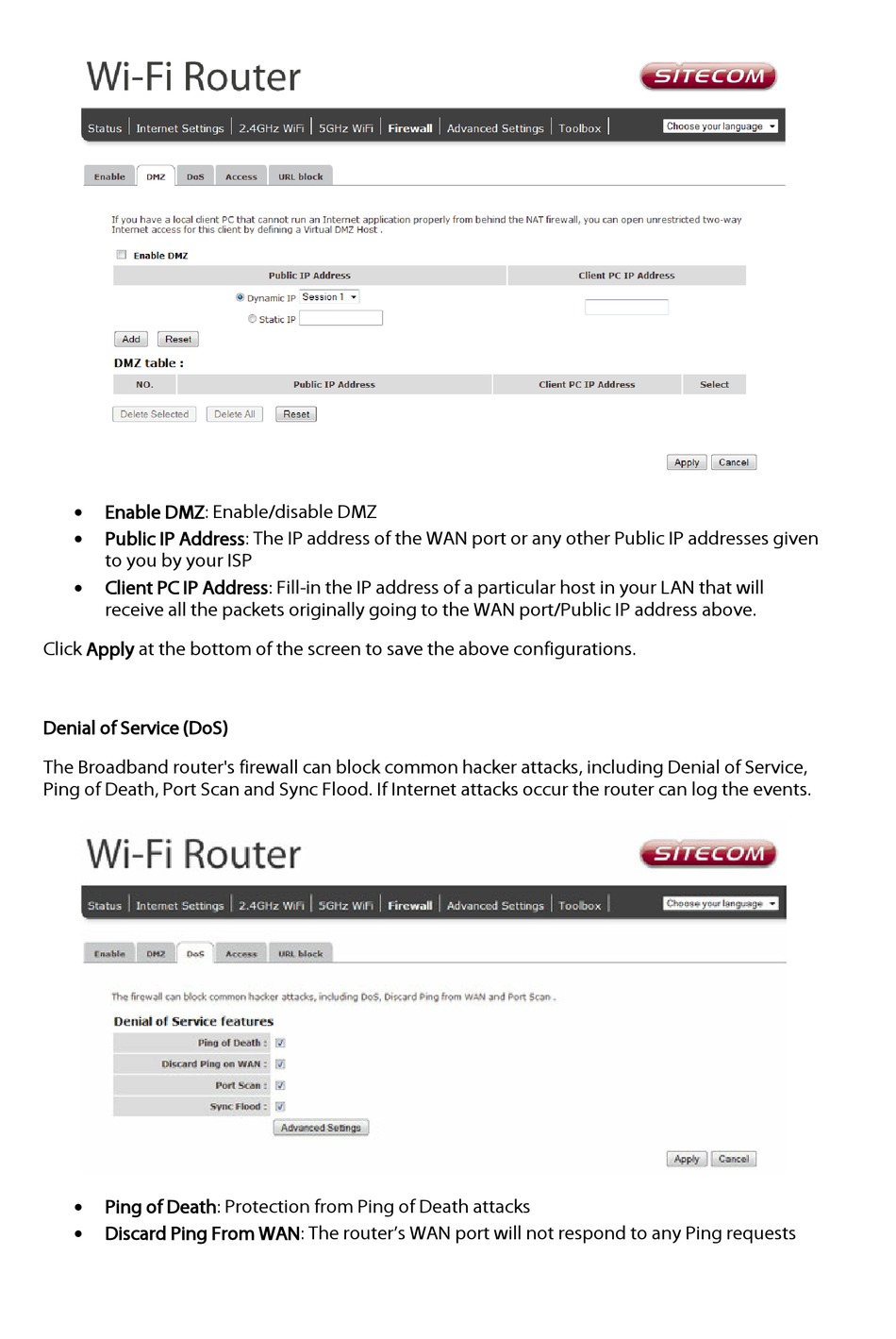

Sitecom WLR-8200 User Manual page 32


Enable DMZ: Enable/disable DMZ

Public IP Address: The IP address of the WAN port or any other Public IP addresses given
to you by your ISP

Client PC IP Address: Fill-in the IP address of a particular host in your LAN that will
receive all the packets originally going to the WAN port/Public IP address above.
Click Apply at the bottom of the screen to save the above configurations.
Denial of Service (DoS)
The Broadband router's firewall can block common hacker attacks, including Denial of Service,
Ping of Death, Port Scan and Sync Flood. If Internet attacks occur the router can log the events.

Ping of Death: Protection from Ping of Death attacks

Discard Ping From WAN: The router's WAN port will not respond to any Ping requests
