Summary of Contents for Frico Panther S 20

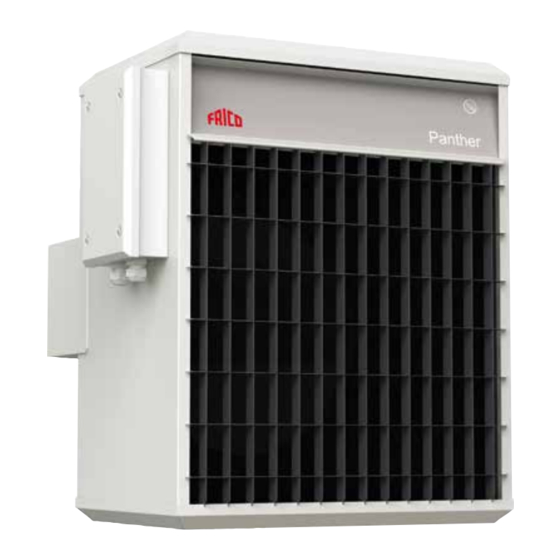

- Page 1 Original instructions Panther S 20/30 kW ..11 ..13...
- Page 2 Regulation also does not apply to installations in vehicles, offshore or outdoors. Many of Frico's products can be used as both local space heaters (as defined in (EU) 2015/1188) and for technical heating purposes. It is up to the installer responsible for the installation to assess whether the Ecodesign Regulation is applicable or not.
- Page 3 Panther S 20/30 Bracket / Console Wall / Mur Ceiling / Plafond 30° min 300 min 300 min 1000 Fig. 1b: Minimum distance wall 7 ,5° 15° Fig. 2 min 1800 Fig. 3 Fig. 1a: Minimum distance ceiling...
- Page 4 Panther S 20/30 Controls / Régulation SIRe SIReFCY SIReFAY SIReRTX 70x33x23 mm SIReFCY/SIReFAY SIReUR SIReUR 114x70x50 mm SIReCJ4 SIReCJ6 SIReCC603 SIReCC605 SIReCC610 10 m SIReRTX SIReCJ4/SIReCJ6 SIReCC615 15 m SIReCC640 40 m SIReCC403 SIReCC405 10 m SIReCC410 SIReCC415 SIReCC Controls for installations not covered by the Ecodesign Regulation (EU) 2015/1188 Régulation pour les installations non couvertes par la réglementation relative à...
-
Page 5: Caractéristiques Techniques
Panther S 20/30 Technical specifications / Caractéristiques techniques ∆t* Type Output Airflow Sound Motor Voltage Amperage HxWxD Weight steps level* [kW] [m³/h] [dB(A)] [°C] [mm] [kg] SE20S 0/10/20 1900/2600 42/60 31/23 400V3N~ 29,5 576x478x545 SE30S 0/10/20/30 1900/2600 42/60 47/34 400V3N~... - Page 6 Panther S 20/30 Internal wiring diagram Panther S 20 SE20S °C 6,3A 6,3A L1 L2 L3 N 1 2 3 4 5 6 7 8 9 10 11 12 400V 3N~...
- Page 7 Panther S 20/30 Internal wiring diagram Panther S 30 SE30S °C 6,3A 6,3A L1 L2 L3 N 1 2 3 4 5 6 7 8 9 10 11 12 400V 3N~...
- Page 8 Panther S 20/30 SIReFC ALARM OUT (BMS) (potential free contact, max 3A, 230V) EXTERNAL ON/OFF, 5-30V AC/DC EXTERNAL RPM 0-10V DC IN EXTERNAL ALARM IN (potential free contact) EXTERNAL SETBACK TEMP. ON/OFF (potential free contact)
- Page 9 Panther S 20/30 SIReFA BMS INDICATION OUT (potential free contact max 3A, 230V) ALARM OUT (BMS) (potential free contact, max 3A, 230V) EXTERNAL ON/OFF, 5-30V AC/DC EXTERNAL HEAT 0-10V DC IN EXTERNAL RPM 0-10V DC IN EXTERNAL ALARM IN (potential free contact) EXTERNAL SETBACK TEMP.
- Page 10 Panther S 20/30 Controls for installations not covered by the Ecodesign Regulation (EU) 2015/1188 Régulation pour les installations non couvertes par la réglementation relative à l'écoconception (UE) 2015/1188 SIReUB1 SIReUB1 SIReRTX SE06-15S Unit 1 SIReB1/B2/B1EC (optional) 230V~ ROOM Pot. Unit ID...
- Page 11 Control Application area The control system is preinstalled in the fan Panther S 20–30 is a range of powerful and heater with an integrated control card. The quiet fan heaters for stationary use. They control system is supplied pre-programmed...
- Page 12 Panther S 20/30 mixed with general household waste but against overheating in the motor. delivered to a designated collection point for 2. Temperature limiter in the unit. environmental recycling. Please contact local If the overheating limiter has been triggered authority for further details of your nearest due to overheating (motor or unit), reset as designated collection point.
- Page 13 Main offi ce Frico AB Tel: +46 31 336 86 00 Box 102 SE-433 22 Partille mailbox@frico.se Sweden www.frico.se For latest updated information and information about your local contact: www.frico.se...
