Technical Support and E-Warranty Certificate www.vevor.com/support

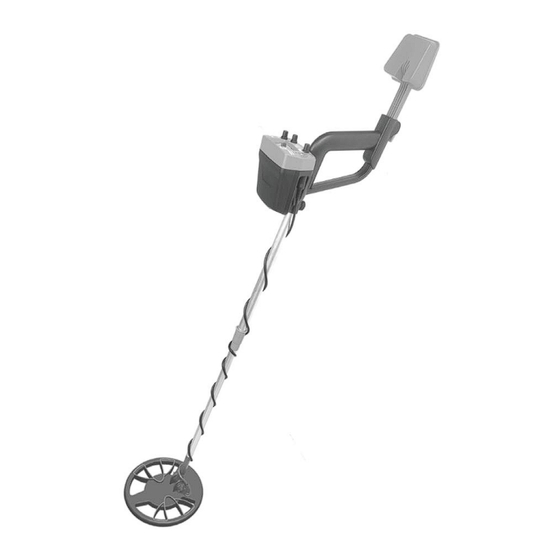

METAL DETECTOR
MODEL:TS156A
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS156A and is the answer not in the manual?

Questions and answers

Related Manuals for VEVOR TS156A

Summary of Contents for VEVOR TS156A

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support METAL DETECTOR MODEL:TS156A We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.

  • Page 3: Metal Detector

    CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
  • Page 4 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. This product is subject to the provision of European Directive 2012/19/EC.
  • Page 5 STRUCTURE / ASSEMBLY INSTRUCTION Overall Structure: - 3 -...
  • Page 6 Upper Part Structure: Tip: You can slide the battery cover downwards to remove it. Tip: After you gently pull up the end of the arm cuff lock by 90°, you can adjust the height of the arm cuff. After you finish the adjustment, pull down the end of the arm cuff lock to lock the arm cuff.

  • Page 7: Assembly Drawing

    Assembly Drawing - 5 -...
  • Page 8 Note: 1. See the above figure, the fixing ring is placed around the lower stem, and its flat side faces the upper stem. 2. The two protrusions on the inner surface of the threaded ring must fit into the two holes near the lower end of the upper stem. 3.

  • Page 9: Power/Volume Knob

    Counterclockwise turn this ALL METALS/DISC knob to the "ALL METALS" position. The knob clicks and the detector stays in the ALL METALS detection mode. When this knob is in the "ALL METALS" position, clockwise turn it and, after it clicks, the detector is in the DISCRIMINATION ( DISC ) mode. 4.
  • Page 10 Place the metal detector on a wooden or plastic table with the search coil roughly perpendicular to the table surface ( see Figure 6 ). Make sure the table is far away from TVs, computers, or any device that can cause electromagnetic interference. Note: To avoid interference, remove any watches, rings, or other metal objects on your fingers and hands.
  • Page 11 The ALL METALS mode allows the detector to achieve the maximum detection depth possible. Note: During test, the metal sample which you are using must be in motion; otherwise the detector will not respond to this metal sample. Testing the detector in the DISCRIMINATION mode Note: The Figure 7 on the right shows the knob positions...
  • Page 12 1. To adjust the settings to prevent the metal detector from detecting iron metals, set both the VOLUME knob and SENS knob at midpoint ( or a higher setting ). 2. Then set the ALL METALS/DISC knob to about " 12 o'clock ". See Figure 8. 3.
  • Page 13 5. To prevent the zinc penny from being detected, set the ALL METALS/DISC knob to about " 5 o'clock " ( see Figure 10 ). By now, only the 25-cent silver quarter should be detected. Note: The discrimination position of aluminum is similar to that of silver. So both metals will be detected at the same time.
  • Page 14 Detecting metallic object with the detector After you finish all the tests mentioned above and have set the detector to meet your need, you can start to detect metallic objects. Turn on the detector, and set it in the ALL METALS mode. Adjust the SENS knob to a desired sensitivity setting, and be far away from any external interference source.

  • Page 15: Battery Replacement

    in soil, soil moisture content, etc ) can affect metal detection/identification in DISCRIMINATION mode, the results of metal identification/discrimination are not guaranteed to be correct. 2. During detection, the search coil must be in motion. If the search coil is still, the detector can not detect metal normally.
  • Page 16 NOTE 1. To preserve battery life, turn off the detector when not in use. 2. If the detector can not operate normally, a possible cause is that the batteries are exhausted. 3. Protect the plug of the search coil cable from damp; otherwise the detector may lose its detecting ability.

  • Page 17: Technical Specification

    TECHNICAL SPECIFICATION Operating Current: About 40mA Battery: 1.5V battery, AA or equivalent, 6 pieces DECLARATION 1. This manual is subject to change without notice. 2. Our company will not take the other responsibilities for any loss. 3. The contents of this manual can not be used as the reason to use the detector for any special application.
  • Page 18 Address：Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to USA: VEVOR STORE INC, 9448 RINCHMOND PL #E RANCHO CUCAMONGA, California, 91730 United States of America SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Made In China - 16 -...
