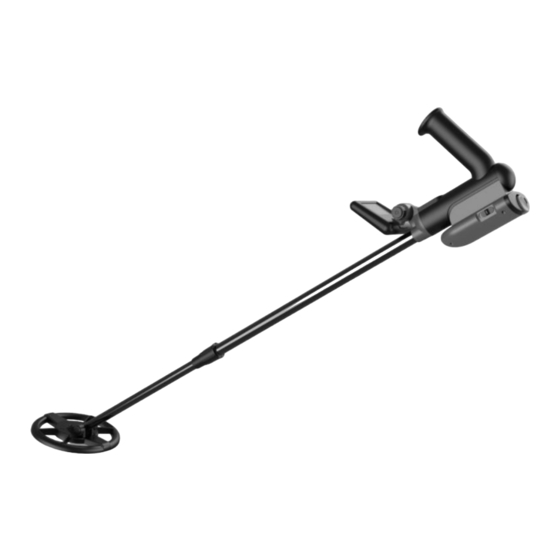

METAL DETECTOR
MODEL:TS26
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Related Manuals for VEVOR TS26
Summary of Contents for VEVOR TS26
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support METAL DETECTOR MODEL:TS26 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
-
Page 3: Metal Detector
CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product. - Page 4 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. This product is subject to the provision of European Directive 2012/19/EC.
- Page 5 STRUCTURE / ASSEMBLY INSTRUCTION - 3 -...
- Page 6 - 4 -...
- Page 7 Assembly Drawing - 5 -...
- Page 8 Note: 1. See the above figure, the fixing ring is placed around the lower stem, and its flat side faces the upper stem. 2. The two protrusions on the inner surface of the threaded ring must fit into the two holes near the lower end of the upper stem. 3.
-
Page 9: Display Instruction
DISPLAY INSTRUCTION OPERATING INSTRUCTION Preparation prior to metal detection Before beginning an outside search, test the detector with the following metal samples: •An iron nail •A five-cent coin ( nickel ) •A one-cent penny ( zinc coin, after 1982 ) •A 25-cent silver quarter - 7 -... - Page 10 Place the metal detector on a wooden or plastic table with the search coil roughly perpendicular to the table surface ( see Figure 6 ). Make sure the table is far away from TVs, computers, or any device that can cause electromagnetic interference. Note: To avoid interference, remove any watches, rings, or other metal objects on your fingers and hands.
- Page 11 Testing the detector in the All METALS mode Counterclockwise turn the ALL METALS/DISC knob until it clicks. Now the detector is in the ALL METALS mode. Refer to Figure 6, respectively pass the metal samples ( the iron nail and 3 coins ) across the search coil at a distance of 5cm to 8cm.
- Page 12 Testing the detector in the DISCRIMINATION mode Note: The Figure 9 on the right shows the knob positions for some often encountered metals. If the ALL METALS/DISC knob is in one of these positions, the corresponding metal will be ignored during scanning.
- Page 13 1. To prevent the detector from detecting iron metals, set the ALL METALS/DISC knob to about " 12 o'clock ". See Figure 10. 2. As a test, sweep the iron nail sample across the search coil at a distance of about 5cm to 7.5cm, the detector will not beep and the stand-by display ( see Figure 7 ) will remain on the monitor screen, but the other metal samples ( the three coins ) will cause the detector to beep and the monitor screen to show the...
- Page 14 4. To prevent the zinc penny from being detected, set the ALL METALS/DISC knob to about " 5 o'clock " ( see Figure 12 ). By now, only the 25-cent silver quarter should be detected. Note: The discrimination position of aluminum is similar to that of silver. So both metals will be detected at the same time.
- Page 15 DETECTING METALLIC OBJECT WITH THE DETECTOR After you finish all the tests mentioned above, you can start to detect metallic objects. Turn on the detector, and set it in the ALL METALS mode. And be far away from any external interference source. During detection, keep the search coil height approximately 3cm to 5cm above the ground and parallel to the ground at all times for best detection results, walk slowly as you scan the search coil slowly in a straight line from side to side.
-
Page 16: Battery Replacement
Note: 1. Because many factors ( degree of oxidation of metallic object, metal impurities in soil, soil moisture content, etc. ) can affect metal detection/identification in DISCRIMINATION mode, the results of metal identification/discrimination are not guaranteed to be correct. 2. During detection, the search coil must be in motion. If the search coil is still, the detector can not detect metal normally. - Page 17 NOTE 1. To preserve battery life, set the power switch to OFF position to turn off the detector when the detector is not in use. 2. If the detector can not operate normally, a possible cause is that the battery is exhausted.
-
Page 18: Technical Specification
WARNING Any metal detector may discover underground power lines, explosives or other items which when struck could cause personal injury. When searching for metals, observe these precautions: 1. Do not search in an area where you believe there may be shallowly buried underground electric lines or pipes. - Page 19 Address：Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to USA: VEVOR STORE INC, 9448 RINCHMOND PL #E RANCHO CUCAMONGA, California, 91730 United States of America SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Made In China - 17 -...
