9.

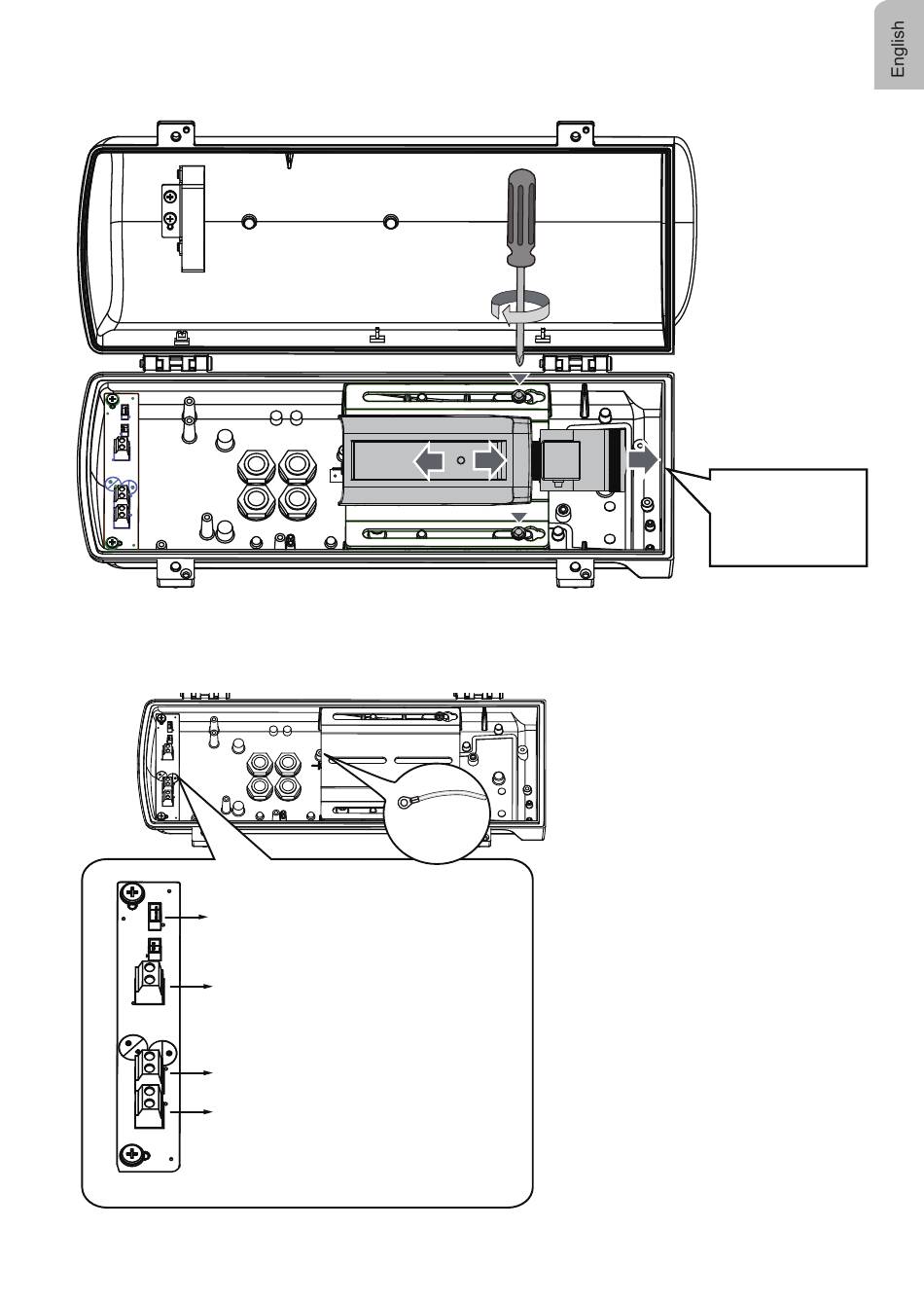

Adjust the camera's position so that the lens module can flush align with the tempered
glass. Secure the camera using the screws and washers to the bottom of the housing.
10.
Connect 24V power source to the power input terminal. Connect power wires from
the DC 12V output to the camera. Connect the 24V power output to drive the external IRs.
Not used for this model
DC 12V OUT -
AC 24V OUT -
AC 24V IN -
Ground
to camera
to external IR
external power
source
9
Lens flush
w/ edge of
enclosure
