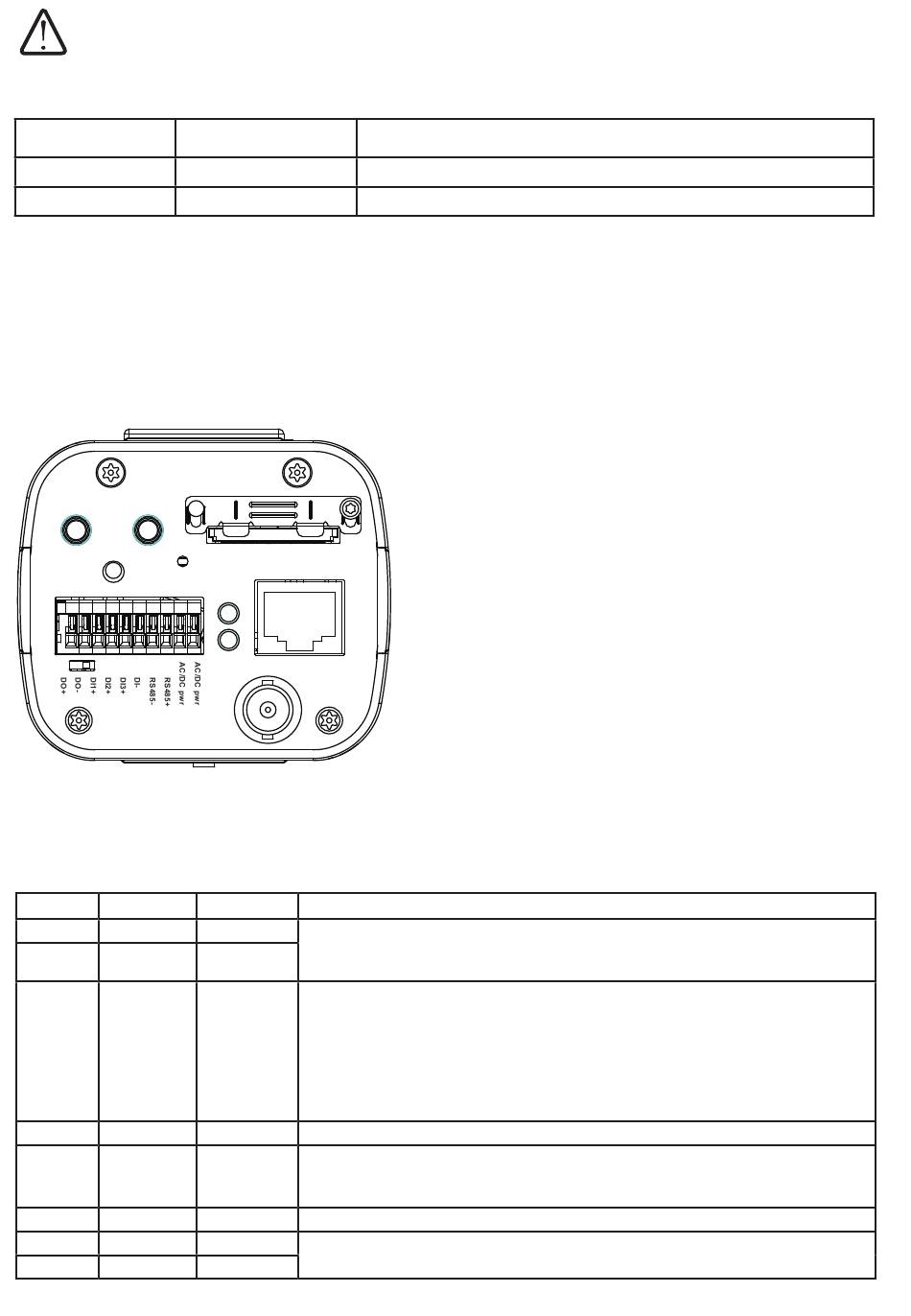

Vivotek IP816A-LPC-v2 Installation Manual page 10

You should prepare a power adaptor of the sufficient capacity for supplying 24V input.
Below are the requirements:
Total consumption Power adaptor
LPC Highway 80W
LPC Street 48W
11.
Connect the Ethernet cable to the camera's RJ45 socket.
12.
Also pass the combo cable of the IR illuminator through a waterproof connector.
13.
Connect the day/night signal lines from the IR unit to the DI/DO connectors on the
camera's terminal block.
The day/night mode DI connection enables the synchronization of IR light and the
automated day/night switching mechanism on the camera.
Cable Pinouts (IR Illuminator)
Name Color
V+ Red
V- Black
DI+ Green
DI- Yellow
DO+ Purple
DO- Blue
RS485+ Orange
RS485- Brown
7A
5A
Gauge Description
(20AWG) Power input
12~24V DC±10%
(20AWG)
24V AC±10% (50~60Hz), (14.5VDC current controlled)
(26AWG) LED ON/OFF control
* Dry contact
Logic level 1(Open) = LED off
Logic level 0(Close to GND) = LED on
* Wet contact
Logic level 1: 4V~40 V = LED off
Logic level 0: 0.8V MAX = LED on
(26AWG) Ground
(26AWG) Light sensor status output
1. Open = Day
2. Short = Night (20 lux for IR ON)
(26AWG) Ground
(26AWG) RS485 interface control
(26AWG)
10
