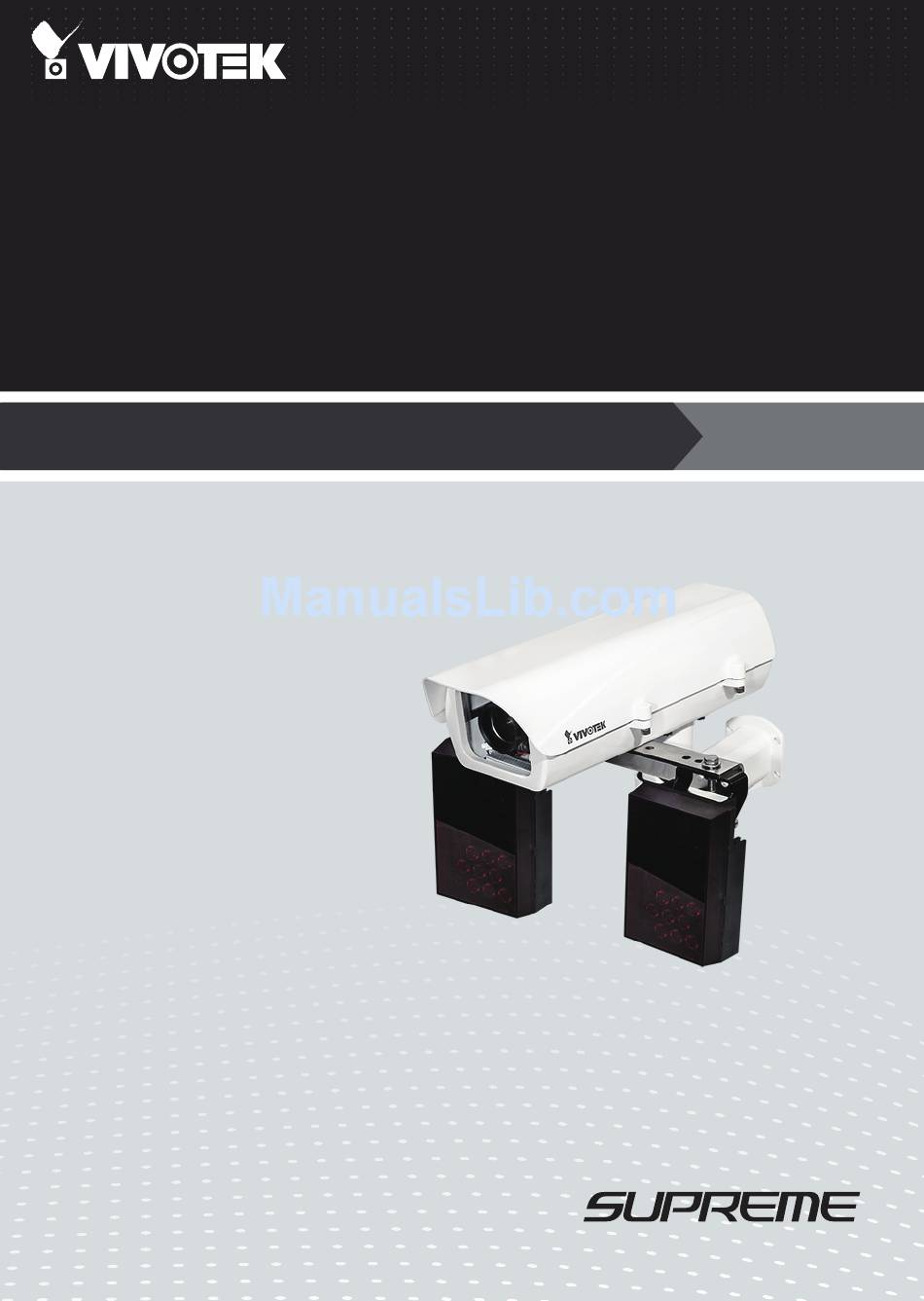

- Page 1 IP816A-LPC License Plate Capturing Solution Quick Installation Guide 2MP • WDR Pro • Remote back Focus • Snapshot Focus Ordering part no.: Rev. 1.1 180000600G - IP816A-LPC(Street) Document part no.: 625030101G...
-
Page 2: Specifications
1. Read and follow Instructions: All operating and user instructions should be read and followed before the unit is to be operated. 2. Electrical Connections: Only a qualified electrician is allowed to make electrical connections. Specifications Model Number IP816A-LPC enclosure Power Input 24VAC (+/-10%) Rating Current 3.5 A Heater Control 15°C (ON) / 25°C (OFF) -
Page 3: Mounting Configuration & Dimensions
Mounting Configuration & Dimensions Swivel Positions and Directions 462.7 Component Description Circulation Heater Heater for the dual-heater, Waterproof cable -40ºC model gland Power Supply Unit... -
Page 4: Installation Suggestions
Installation Suggestions If you plan to install this camera enclosure into a tropical, sea coastal, or an environment where salt water or corrosive industrial waste water/moist are present, please seal each stainless steel screws and fittings with a silicon grease compounds. This will help prevent electrolysis to occur and extend the life span of the camera and housing. - Page 5 Secure both IR light units to the included iron bracket in the orientation shown below. To the front of enclosure Secure the IR light bracket to the bottom of th enclosure. Secure one screw only at this stage of installation.
- Page 6 Adjust the IR lights' shooting direction and tighten up the mount screws. You may need to adjust the shooting angles later. Pass the IR light units' signal wires through the waterproof connectors on the front.
- Page 7 Loosen the retention hex screws of the enclosure. To access the screws, you can push the IR bracket to the side.
- Page 8 Check the inside of the enclosure to make sure the I/O wires can reach the power supply unit inside. An approximate of 25cm cable length is required. Install and tighten up the waterproof connectors.
- Page 9 Prepare the AC24V power wires and a CAT5e Ethernet cable. Pass them through the waterproof connectors. You may need to remove the RJ45 connector, and use a crimping tool to connect the Ethernet wires to an RJ45 connector inside the enclosure. Use an Ethernet cable of the width of 5 ~ 6.5mm.
- Page 10 When done, tighten up the waterproof connectors. Assemble the camera components, e.g., the CS ring and lens module. Align the buffer pad with the mounting hole at the bottom of the camera (the label side). Place the mounting plate on top of the buffer pad and then secure it to the camera. You may need adjust its position so that the lens module can flush align with the tempered glass.
- Page 11 Secure the camera to the enclosure by securing screws through the keyhole slots. Attach the AC24V power wires and power inputs from the IR light units to the terminal connector. Connect the Brown and Orange (26AWG) wires from both IR units to the terminal.
- Page 12 Connect the power inputs from another IR light unit to the same terminal connector.
- Page 13 Listed below is the color scheme for wires coming fom the IR light units. Description Color Gauge IR status DO- Orange (26AWG) IR status DO+ Brown (26AWG) LED ON/OFF mode DO- Black (26AWG) LED ON/OFF mode DO+ (26AWG) Input(V-): 24V AC/DC or 12V DC Orange (20AWG) Input(V+): 24V AC/DC or 12V DC...
- Page 14 Having the wiring done inside the enclosure, you can install the enclosure bracket to a preferred location at your installation site. Drill mounting holes and a cable routing hole (if preferred) on a wall. Install the bracket. Lift the whole enclosure up to the installation position, and pass the 24V power wire and the Ethernet cables through the bracket.
- Page 15 Mount the enclosure on to the installed bracket, and secure the connection by tightening the 4 socket screws. Due to the weight of the enclosure (5.5kg), it is best to have two men mounting the enclosure. Adjust zoom and focus and open a web session with the camera to tune for the best image.
- Page 16 Close the top cover of the enclosure, tighten the screws,and secure another screw to the IR bracket.
- Page 17 Firmware configurable options: Open a web session with the camera. Make sure that external IR is turned on in the night mode, and that the IR cut filter option is synchronized with the digital input you connected (default is DI1). Use the Media >...
- Page 18 In the Configuration > Media > Image settings page, select an application scenario, LPC street or LPC parking lot. Related parameters, such as shutter time, will be automatically change for the scenario. If preferred, e.g., shooting fast moving vehicles, select the 60fps frame rate.
- Page 19 In the night mode, check if the input signals are correctly detected. You may simulate the night mode by blocking the IR unit's light sensor. Change the triggering parameters when necessary. If your target area is a stretched out field of view, such as shooting a part of a highway, finding the best focus can be a problem.
- Page 20 Operation Procedure: 1. Press the Snapshot Recording button, e.g., when a car is passing the field of view. A short, 2.5 seconds of video recording will be available (including 1 second of pre-recording and another second of post-recording). 2. The recording takes place on Stream 1 with a focusing result calculated from the full of the current field of view.
