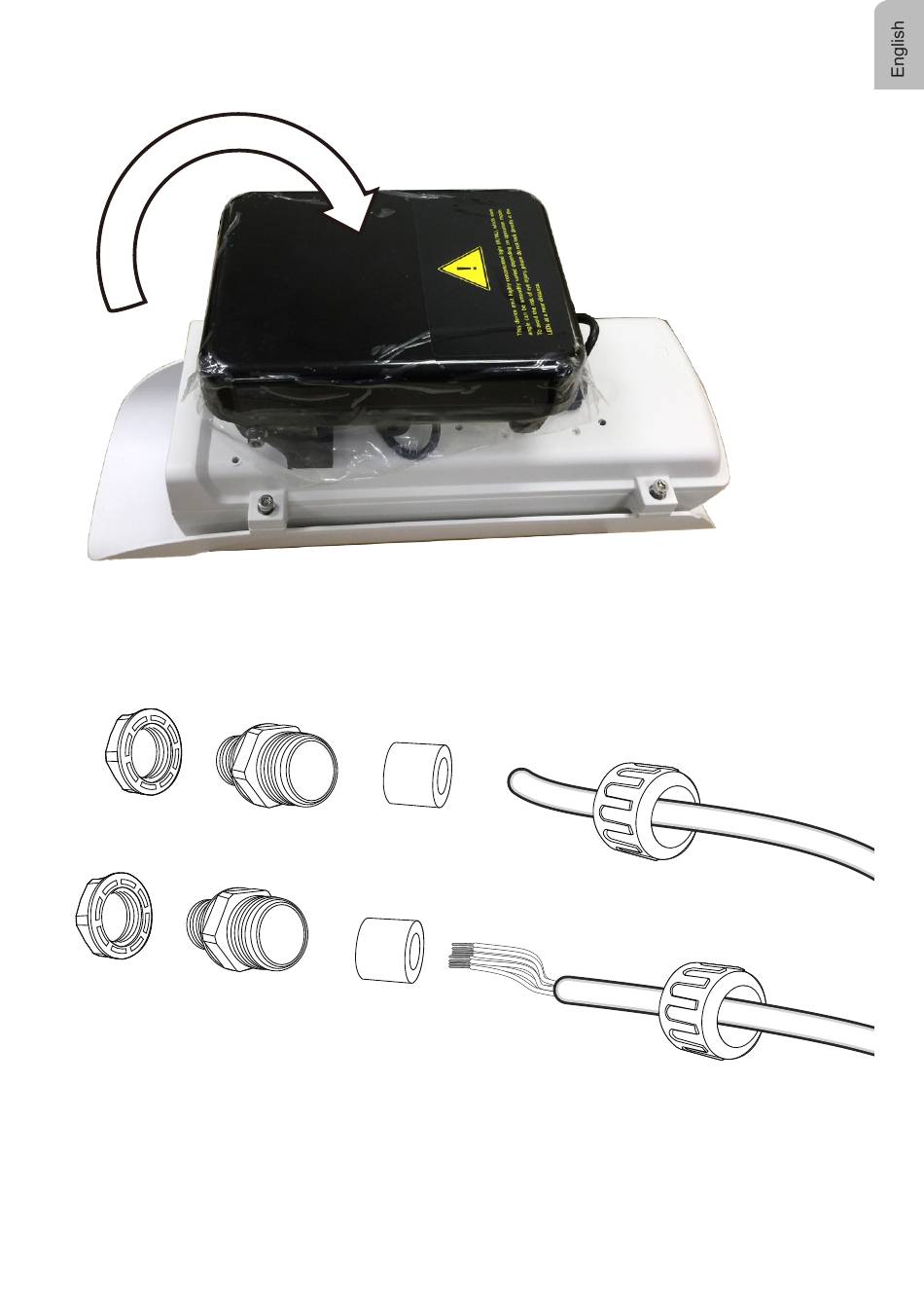

You can turn the IR illuminator so that its flat side is parallel with the housing, and that
you can turn the assembly over and work on the inside of the housing.
6.
Prepare power wires, a ground wire, and a CAT5e Ethernet cable. Pass them through
the M16 waterproof connectors under the housing.
Ethernet cable Ø4 ~ 6.5mm
Power wires & DI/DO wires,
a combo cable from IR illuminator
7
