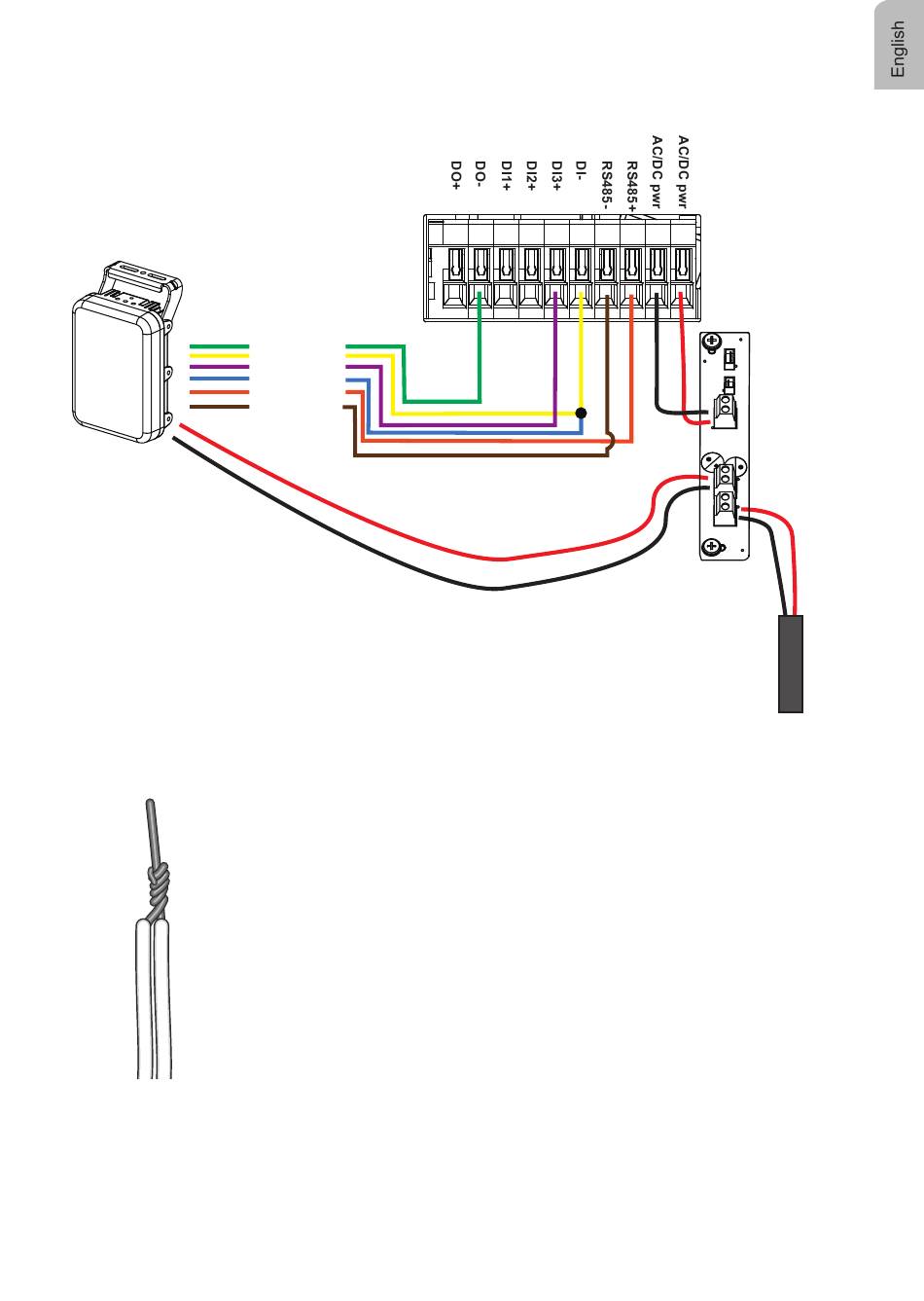

A sample connection diagram consisting of CaMate's IR illuminators and the IP816A
camera is shown below. Please refer to your camera's documentation if your camera
comes with different pinouts.
AWG26
AWG20
14.
You can connect the ground wires together and connect them to the DI- ground pin
on the terminal. Use a small flat blade screwdriver to press the lever on the terminal block.
DI-
DO-
DI+:
Green
DI-:
Yellow
DO+:
Purple
DO-:
Blue
RS485+:
Orange
RS485-:
Brown
AC24V
11
DC 12V
AC24V
input
