About the user manuals
Product documentation is composed of the following documents.
• Installation Guide (accessory): Provides information about "Precautions", "Precautions for
installation" and the installation method.
• Basic Information (this document): Provides information about "Precautions for use" and "Detail
specifications".
• Operating Instructions (in the following website): Explains how to perform the settings and
how to operate this camera.
https://i-pro.com/global/en/surveillance/documentation_database
"<Control No.: C****>" used in these documents should be used to search for information on our
support website (https://i-pro.com/global/en/surveillance/training_support/support/technical_
information) and will guide you to the right information.
• SDXC/ SDHC/ SD memory card is described as SD memory card.
• The external appearance and other parts shown in this manual may differ
from the actual product within the scope that will not interfere with normal
use due to improvement of the product.
Basic Information

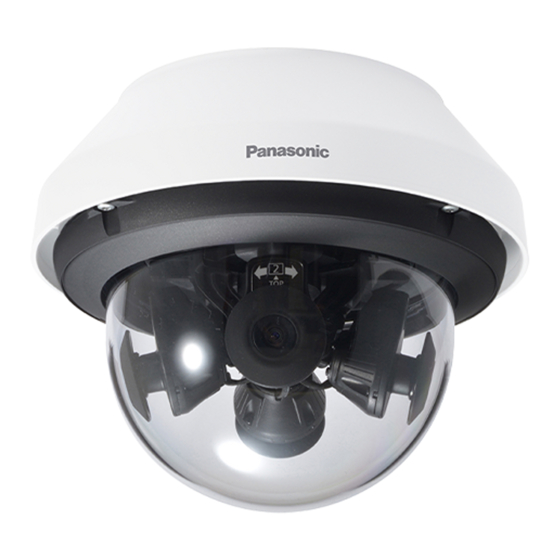

Network Camera
WV-X8571N
Model No.
WV-S8531N
WV-X8571N
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for i-PRO WV-X8571N
Summary of Contents for i-PRO WV-X8571N
- Page 1 “<Control No.: C****>” used in these documents should be used to search for information on our support website (https://i-pro.com/global/en/surveillance/training_support/support/technical_ information) and will guide you to the right information. • SDXC/ SDHC/ SD memory card is described as SD memory card.
-
Page 2: Table Of Contents
Contents Limitation of liability ........................3 Disclaimer of warranty ........................3 About notations ..........................4 System requirements for a PC ...................... 4 Network security ........................... 5 Precautions for use ........................6 Troubleshooting ..........................9 Detail specifications ........................11... -
Page 3: Limitation Of Liability
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 4: About Notations
The following notations are used when describing the functions limited for specified models. The functions without the notations are supported by all models. The functions with this notation are available when using the model WV-X8571N. X8571 The functions with this notation are available when using the model WV-S8531N. -
Page 5: Network Security
Network security As you will use this unit connected to a network, your attention is called to the following security risks. A Leakage or theft of information through this unit B Use of this unit for illegal operations by persons with malicious intent C Interference with or stoppage of this unit by persons with malicious intent It is your responsibility to take precautions such as those described below to protect yourself against the above network security risks. -
Page 6: Precautions For Use
Precautions for use When the product is accessible from the Periodically images on the screen appear to Internet be distorted To prevent unauthorized access, note the following. When the camera is installed in a location where it is subject to small vibrations (for example, when •... - Page 7 We shall not be liable for content Cleaning of the dome cover compensation, losses of recorded or • When cleaning the front panel, hose or spray edited content and any direct or indirect fresh water that is not containing lubricant consequent damages caused by failure to agent or silicon substances and wash away record or edit due to faults with this unit or...
- Page 8 AVC Patent Portfolio License THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/...
-
Page 9: Troubleshooting
Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using a PoE+ device for power supply... - Page 10 Reference Symptom Cause/solution pages • Check the following. • Grounding of the camera, a switching hub or periph- eral devices are not done. • The camera is used near an electrical power line. • The camera is used near a device which produces Audio input contains Installation strong magnetic field or radio waves (such as near a...
-
Page 11: Detail Specifications
When using attachment plate only: Approx. 2.8 kg {6.18 lbs} X8571 Approx. 2.7 kg {5.96 lbs.} S8531 Finish: Main body: Aluminum die cast, i-PRO white Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Dome cover: Polycarbonate resin (with ClearSight coating), Clear Others : Tamper-resistant enclosure... - Page 12 *1 Refer to our support website <Control No.: C0106> for further information about Power source and Power consumption information. *2 When used with DC 12 V power source, some functions to be added on update may sometimes be unavailable. *3 Only when installation work is properly performed according to the Installation Guide and appropriate waterproof treatment is performed.
- Page 13 Camera • Image sensor: X8571 Approx. 1/1.8 type CMOS image sensor S8531 Approx. 1/2.8 type CMOS image sensor Effective pixels: X8571 Approx. 8.4 megapixels S8531 Approx. 2.1 megapixels Scanning area: X8571 7.68 mm (H)×4.32 mm (V) {5/16 inches (H) × 5/32 inches (V)} S8531 5.57 mm (H)×3.13 mm (V) {7/32 inches (H) ×...
- Page 14 Maximum shutter: [15 fps mode] / [30 fps mode] X8571 S8531 Max. 1/10000 s, Max. 1/4000 s, Max. 1/2000 s, Max. 1/1000 s, Max. 1/500 s, Max. 1/250 s, Max. 1/120 s, Max. 1/100 s, Max. 2/120 s, Max. 2/100 s, Max. 3/120 s, Max. 1/30 s, Max. 2/30 s, Max. 4/30 s, Max.
- Page 15 Lens • Zoom ratio: X8571 Optical zoom 1.0x Extra optical zoom max 3.0x (1.0x – 3.0x when resolution is 1280x720) S8531 Optical zoom 2.5x (Motorized zoom / Motorized focus) Extra optical zoom max 7.5x (2.5x – 7.5x when resolution is 640x360) Digital (electronic) zoom: Choose from 3 levels of x1, x2, x4 Focal length:...
- Page 16 • Network 10BASE-T/ 100BASE-TX/ 1000BASE-T * , RJ45 connector Network: Resolution * [16:9 mode*] *[4:3 mode] is not supported. X8571 H.265/ H.264 3840×2160/ 2560×1440/ 1920×1080/ 1280×720/ 640×360/ 320×180 JPEG (MJPEG) S8531 1920×1080/ 1280×720/ 640×360/ 320×180 Image compression method: H.265/ H.264 Transmission priority: Constant bit rate/ VBR/ Frame rate/ Best effort Frame rate: X8571...
- Page 17 Image compression method: JPEG (MJPEG) Image quality: 0 SUPER FINE/ 1 FINE/ 2/ 3/ 4/ 5 NORMAL/ 6/ 7/ 8/ 9 LOW (10 steps: 0-9) Transmission type: Pull (Refresh interval)/ Push (MJPEG) Refresh interval: X8571 [15 fps mode] 0.1 fps/ 0.2 fps/ 0.33 fps/ 0.5 fps/ 1 fps [12.5 fps mode] 0.08 fps/ 0.17 fps/ 0.28 fps/ 0.42 fps/ 1 fps S8531...
- Page 18 Browser * Internet Explorer 11 (32-bit) Microsoft Edge Firefox Google Chrome Maximum concurrent 24* (Number of sessions that can connect to cameras at the same time) access number: * Depends on network conditions Compatible SDXC/SDHC/SD SD speed class 6 or higher memory card * SDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB...
- Page 19 Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB i-PRO Co., Ltd. Amsterdam, Netherlands Fukuoka, Japan i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, https://www.i-pro.com/ Cambridgeshire CB23 6DP © i-PRO Co., Ltd. 2022 N0321-1042 PGQP3024YA...
