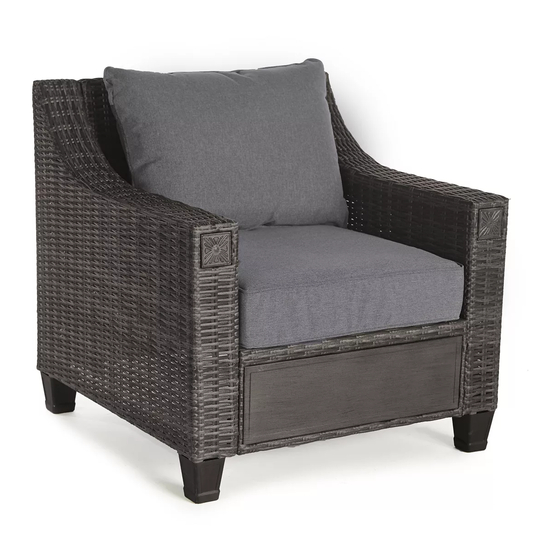

- Page 1 ASSEMBLY INSTRUCTION ITEM#: H21GK018VD SKU#: 810554587 S A N D P O I N T E C H A I R 1 (877) 800 – 6021 Need help? We are here for you! • Toll Free service@hcipatio.com • Email Address...
- Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: To Ensure Alignment & Easy Assembly, Secure All Bolts & Washers In Place Before Fully Tightening Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product...
- Page 3 PARTS LIST PART PART MATERIAL CODE PART Q’TY MATERIAL CODE PART Q’TY H21GK018VD-BG LS-M6-50 BACK ASSEMBLY BOLT M6*50 H21GK018VD-ZG PTLS-M8-100 BOLT M8*100 SEAT ASSEMBLY H21GK018VD-ZSB DP-d6.5-D13 WASHER d6.5*D13*1.0 LEFT ARM H21GK018VD-YSB LM-M6 RIGHT ARM JAM NUT M6*1.0 H21GK018VD-BM H21GK018VD-JD BACK CUSHION...
- Page 4 STEP 1 PARTS REQUIRED: 1, 2, 7, 9, & 10 Keep the bolts loose. STEP 2 PARTS REQUIRED: 1, 3, 4, 7, 9, & 10 Keep the bolts loose. Note: The labels marked “L” and “R” on the arms (#3 and #4) should coincide with Step 2 to ensure proper assembly.
- Page 5 STEP 3 PARTS REQUIRED: 2, 3, 4, 6, 9, & 10 Tighten all bolts by using the supplied Hex key. STEP 4 PARTS REQUIRED: 3, 4, 5, & 8 Tighten all bolts by using the supplied Hex key. PAGE 4 OF 5...
- Page 6 STEP 5 PARTS REQUIRED: 11 & 12 Warranty • One–year limited warranty. • Proof of purchase (dated register receipt) is required for warranty claims. • It remains the customer’s responsibility for freight and packing charges to and from the service center. STOP! Missing A Part? No Need To Go Back To The Store The store where you made your purchase does not stock parts for this item.
