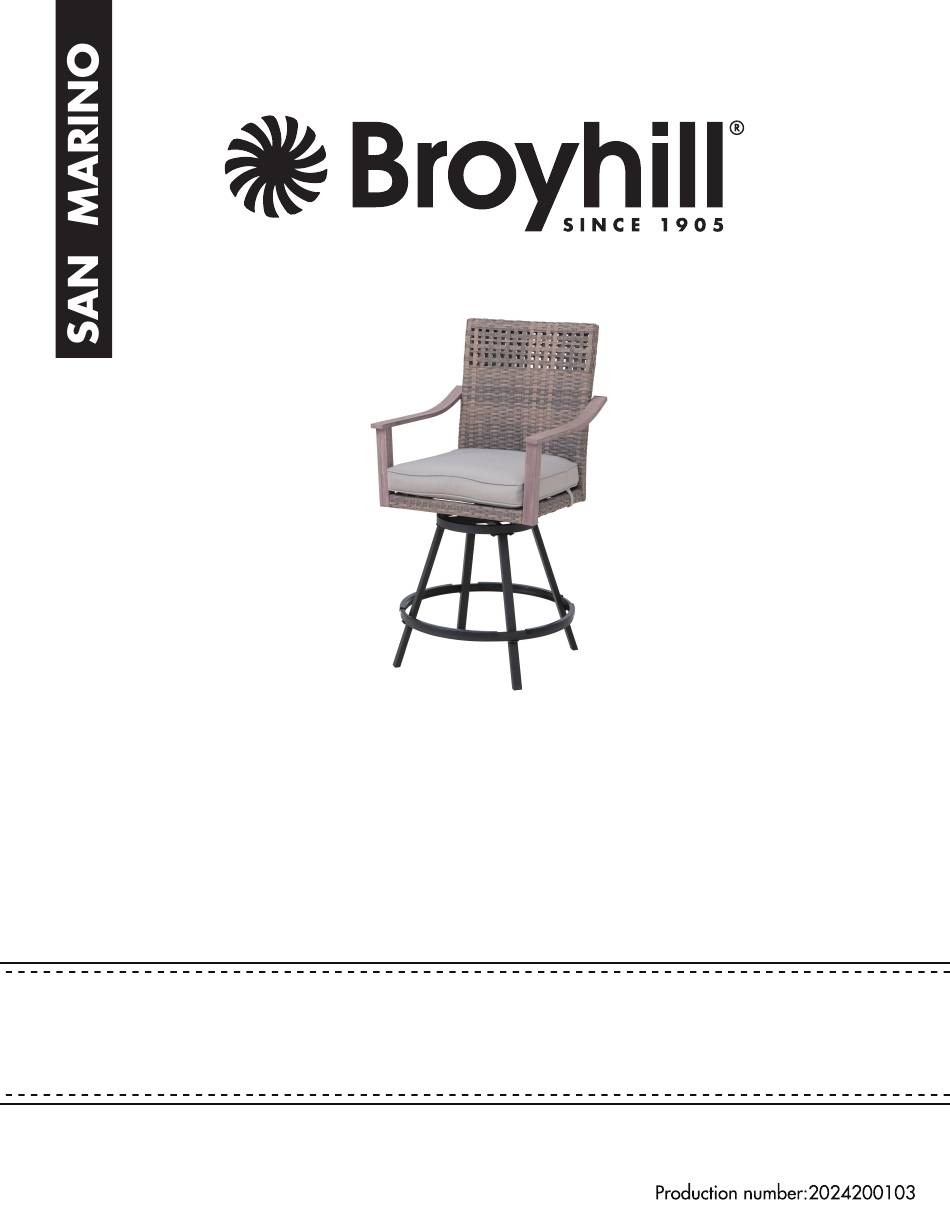

- Page 1 ASSEMBLY INSTRUCTIONS ITEM#: A222043710 SKU#: 810667034 SAN MARINO DINING CHAIR 6PK Need help? We are here for you! 1(866)578-6569 24/7 • Toll Free...
-
Page 2: Warranty
GENERAL BEST PRACTICES FOR ASSEMBLY: • Please read and understand this entire manual before attempting to assemble or install the product. • Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. -
Page 3: Exploded Drawing
EXPLODED DRAWING... -
Page 4: Parts List
PARTS LIST Label Part Number Description Part Image Counter Height P00150017601 Chair Back Counter Height P00140040801 Chair Left Arm Counter Height P00140040901 Chair Right Arm Counter Height P00160031101 Chair Seat Board P00510040801 Turnplate Counter Height P00540074201 Chair Leg Footrest Cover P00500086201 Counter Height P00180023801... -
Page 5: Hardware List
HARDWARE LIST Label Part Number Description Qty Add Part Image H010030030 Bolt M6*15 H010030034 Bolt M6*30 Flat washer H050010025 Spring H050020017 Washer M6 H040050029 Nut M6 Allen Key H090030002 H090010017 Wrench M6... -
Page 6: Helpful Hints
HELPFUL HINTS • Separating parts before starting • Tools needed and not included Provided in hardware pack Provided in hardware pack Provided How many people needed for the installation 06/12... - Page 7 STEP 1 Assemble the Chair Back (A) to Seat Board (D) with Bolt (H2) and Flat Washer (H3), tighten all the bolts to 80% degree with Allen Key (HW1)
- Page 8 STEP 2 Assemble the Arm (B&C) to Seat Board (D) with Bolt (H2) and Flat Washer (H3), Assemble the Arm (B&C) to Chair Back (A) with Bolt (H1) and Flat Washer (H3), tighten all the Bolts to 80% degree with Allen Key(HW1).
- Page 9 STEP 3 Assemble the Chair Leg(F) to Turnplate (E) with Bolt (H1) and Flat Washer (H3), tighten all the bolts to 80% degree with Allen Key(HW1).
- Page 10 STEP 4 Assemble the Footrest Cover(G) to Chair Leg(F) with Bolt (H1) and Flat Washer (H3), tighten all the bolts to 80% degree with Allen Key(HW1).
- Page 11 STEP 5 Assemble the Seat Board (D) to Turnplate (E) with Bolt (H2),Nut(H5),Spring Washer(H4) and Flat Washer (H3), tighten all the bolts to 100% degree with Allen Key(HW1). tighten all the Nuts to 100% degree with Wrench (HW2).
- Page 12 STEP 6 Put the Cushion (J) on Seat Board (D), tighten the fabric band on both side.
