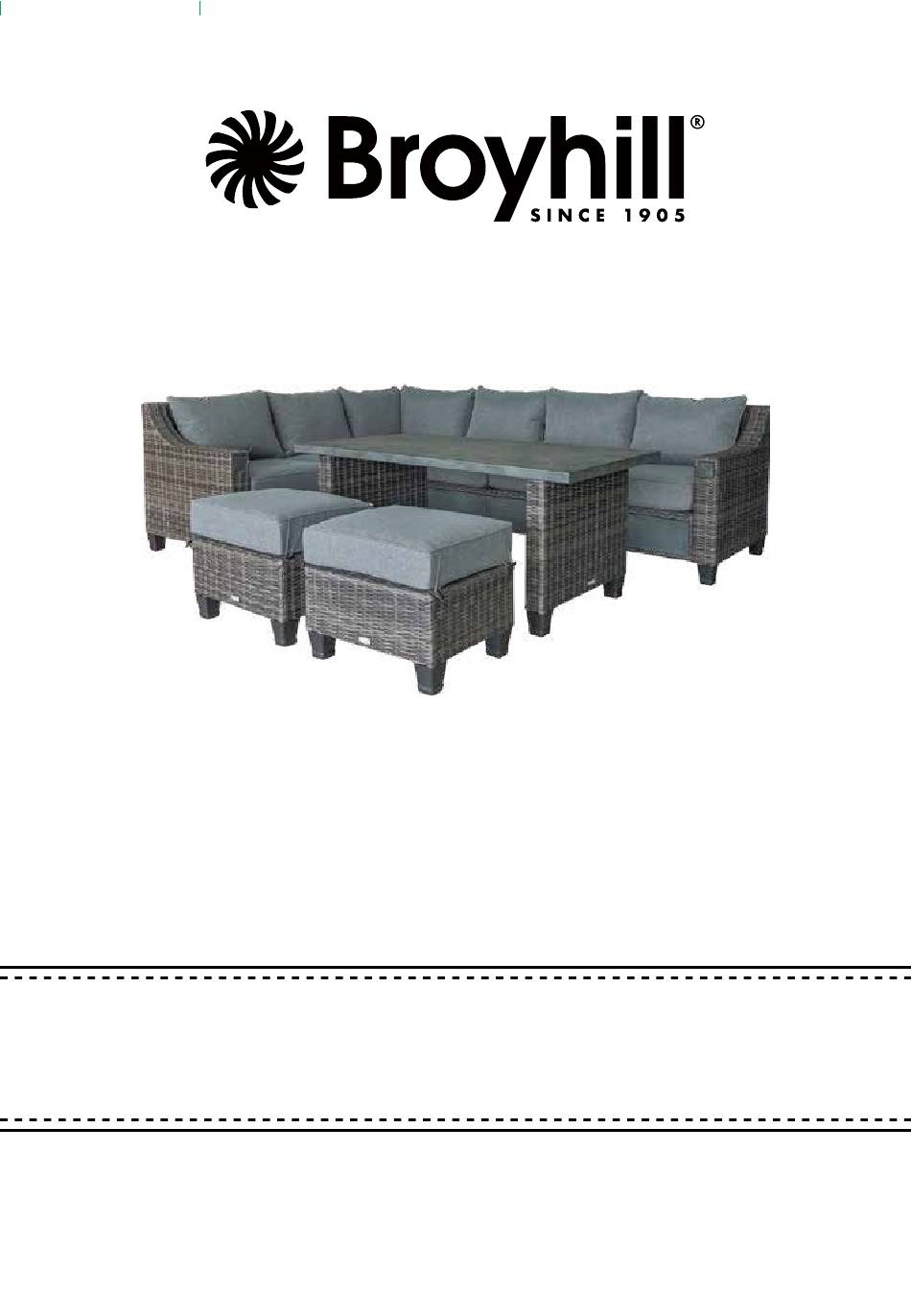

- Page 1 ASSEMBLY INSTRUCTION ITEM#: H21GS155VS SKU#: 810544444 S A N D P O I N T E 5 P C S E C T I O N A L S E T 1 (877) 800 – 6021 Need help? We are here for you! •...
-
Page 2: Maintenance
GENERAL BEST PRACTICES FOR ASSEMBLY: To Ensure Alignment & Easy Assembly, Secure All Bolts & Washers In Place Before Fully Tightening Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product... -
Page 3: Parts List
H21GK018VZ PARTS LIST PART MATERIAL CODE PART Q’TY LS-M6-15 BOLT M6*15 H21GK018VZ-BG LS-M6-50 BACK ASSEMBLY BOLT M6*50 H21GK018VZ-ZG PTLS-M8-100 SEAT ASSEMBLY BOLT M8*100 H21GK018VZ-ZSB DP-d6.5-D13 WASHER d6.5*D13*1.0 LEFT ARM LM-M6 H21GK018VZ-ZZG JAM NUT M6*1.0 H21GK018VZ-BM H21GK018VZ-JZG BACK CUSHION SUPPORT H21GK018VZ-ZM H21GK018VZ-JD LEG CAP SEAT CUSHION... - Page 4 STEP 1 PARTS REQUIRED: 1, 2, 8, 10, & 11 Keep the bolts loose. STEP 2 PARTS REQUIRED: 1, 2, 3, 8, 10, & 11 Tighten all bolts by using the supplied Hex key. PAGE 3 OF 12...
- Page 5 STEP 3 PARTS REQUIRED: 1, 2, 4, 7, & 10 Tighten all bolts by using the supplied Hex key. STEP 4 PARTS REQUIRED: 1, 2, 5, 7, & 10 Tighten all bolts by using the supplied Hex key. PAGE 4 OF 12...
- Page 6 STEP 5 PARTS REQUIRED: 1, 2, 3, 6, & 9 Tighten all bolts by using the supplied Hex key. STEP 6 PARTS REQUIRED: 12 & 13 PAGE 5 OF 12...
- Page 7 H21GK018VN PARTS LIST PART PART MATERIAL CODE PART Q’TY MATERIAL CODE PART Q’TY H21GK018VN-YJ DP-d6.5-D13 WASHER d6.5*D13*1.0 CHAIR ASSEMBLY H21GK018VN-ZBM H21GK018VN-JZG LEFT BACK CUSHION H21GK018VN-YBM H21GK018VN-JD RIGHT BACK CUSHION LEG CAP LS-M6-15 H21GK018VN-BM BACK CUSHION BOLT M6*15 H21GK018VN-ZM PTLS-M8-100 BOLT M8*100 SEAT CUSHION STEP 1 PARTS REQUIRED: 1, 2, 3, 4, 5, &...
- Page 8 STEP 2 PARTS REQUIRED: 7, 8, 9, & 10 PAGE 7 OF 12...
- Page 9 H21GT759MD PARTS LIST PART MATERIAL CODE PART Q’TY H21GT759MD-JD PLASTIC LEG CAP H21GT759MD-ZM LS-M6-15 TABLE TOP BOLT M6*15 H21GT759MD-JA PTLS-M8-100 LEG A BOLT M8*100 H21GT759MD-JB DP-d6.5-D13 LEG B WASHER d6.5*D13*1.0 STEP 1 PARTS REQUIRED: 2, 3, 4, & 6 Tighten all bolts by using the supplied Hex key. &...
- Page 10 STEP 2 PARTS REQUIRED: 1 ,2, 3, 5 & 7 Tighten all bolts by using the supplied Hex key. STEP 3 PAGE 9 OF 12...
- Page 11 H21GX903VO PARTS LIST PART PART MATERIAL CODE PART Q’TY MATERIAL CODE PART Q’TY H21GX903VO-JK H21GX903VO-JD SEAT ASSEMBLY PLASTIC LEG CAP PTLS-M8-100 H21GX903VO-MD BOLT M8*100 CUSHION STEP 1 PARTS REQUIRED: 1, 2, & 3 Tighten all bolts by using the supplied Hex key. PAGE 10 OF 12...
- Page 12 STEP 2 PARTS REQUIRED: 4 Warranty • One–year limited warranty. • Proof of purchase (dated register receipt) is required for warranty claims. • It remains the customer’s responsibility for freight and packing charges to and from the service center. Securing Clips Please use the clips to connect and secure each section together.
- Page 13 STOP! Missing A Part? No Need To Go Back To The Store The store where you made your purchase does not stock parts for this item. If you need parts, whether they are missing or damaged, Call Toll Free: TEL: 1-877-800-6021 Call us between 9:00 AM and 4:30 PM Eastern Time Monday through Friday For further assistance, please visit us at service@hcipatio.com PAGE 12 OF 12...
