Summary of Contents for Broyhill YORKTOWN H21GK036VF-1

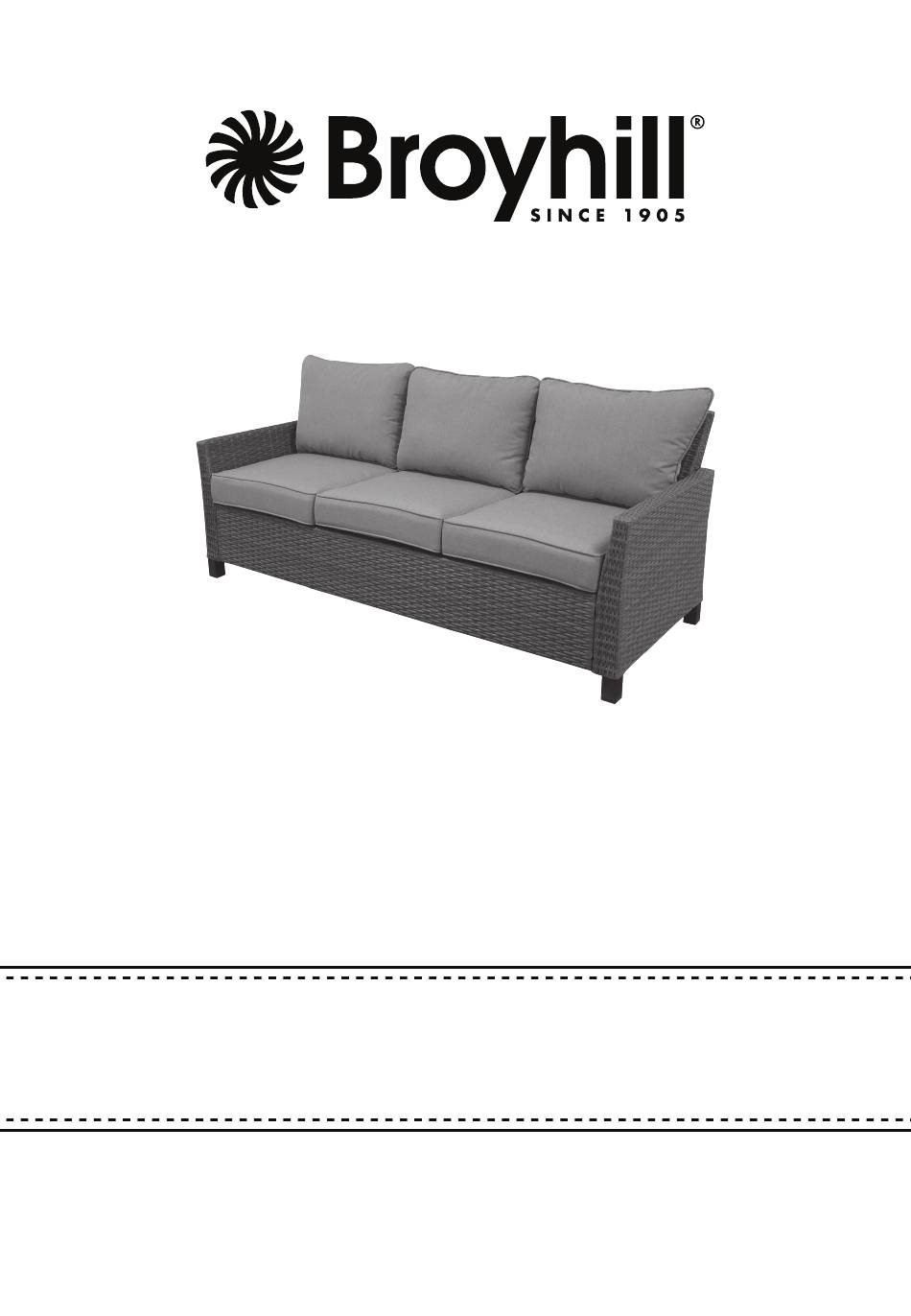

Page 1

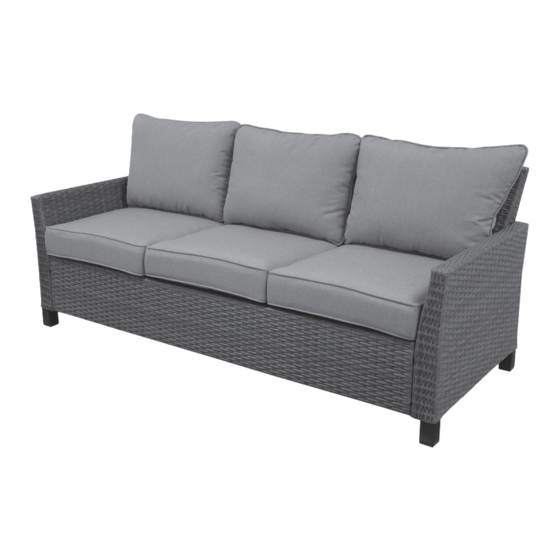

ASSEMBLY INSTRUCTION ITEM#: H21GK036VF-1 SKU#: 810589124 Y O R K T O W N S O FA 1 (877) 800 – 6021 Need help? We are here for you! • Toll Free service@hcipatio.com • Email Address...
Page 2
GENERAL BEST PRACTICES FOR ASSEMBLY: To Ensure Alignment & Easy Assembly, Secure All Bolts & Washers In Place Before Fully Tightening Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product...
Page 3
PARTS LIST PART MATERIAL CODE PART Q’TY LS-M6-15 BOLT M6*15 HKVS943Z-BG LS-M6-50 BACK ASSEMBLY BOLT M6*50 HKVS943Z-ZG DP-d6.5-D13 SEAT ASSEMBLY WASHER d6.5*D13*1.0 HKVS943Z-SB LM-M6 JAM NUT M6*1.0 HKVS943Z-ZZG HKVS943Z-BMA BACK CUSHION A HKVS943Z-BMB HKVS943Z-JZG BACK CUSHION B SUPPORT HKVS943Z-ZM LS-M6-35 SEAT CUSHION BOLT M6*35 Tools...
Page 4
STEP 2 PARTS REQUIRED: 1, 3, 6, & 9 Keep the bolts loose. STEP 3 PARTS REQUIRED: 1, 2, 8, 9, & 10 Tighten all bolts by using the supplied Hex key. PAGE 3 OF 5...
Page 5
STEP 4 PARTS REQUIRED: 2, 4, 7, & 9 Tighten all bolts by using the supplied Hex key. STEP 5 PARTS REQUIRED: 1, 2, 5, 7, & 9 Tighten all bolts by using the supplied Hex key. PAGE 4 OF 5...
Page 6
STEP 6 PARTS REQUIRED: 11, 12, & 13 Warranty • One–year limited warranty. • Proof of purchase (dated register receipt) is required for warranty claims. • It remains the customer’s responsibility for freight and packing charges to and from the service center. STOP! Missing A Part? No Need To Go Back To The Store The store where you made your purchase does not stock parts for this item.
