Ryobi ELDM65 Quick Start Manual

ELDM65
65 FT. LASER DISTANCE
MEASURER
SAFETY RULES
WARNING:
To reduce the risk of injury, the user must read
and understand the operator's manual before
using this product.
WARNING:
Use of controls or adjustments or per-
formance of procedures other than those
specified herein may result in hazardous
radiation exposure.
WARNING:
The use of an optical instrument with this product
will increase eye hazard.
The laser guide radiation used in this laser distance
measurer is Class II with < 5mW and 630-660 nm
wavelengths. These lasers do not normally present
an optical hazard although staring at the beam may
cause flash blindness.
 Avoid direct eye exposure when using the
laser and do not project the laser beam
directly into the eyes of others. Serious eye
injury could result.
 Do not remove or deface any product labels.
Removing product labels increases the risk of
exposure to laser radiation.
 Do not place the laser distance measurer in a
position that may cause anyone to stare into
the laser beam intentionally or unintention-
ally. Serious eye injury could result.
 Do not operate the laser distance measurer
around children or allow children to operate
the tool. Serious eye injury could result.
 Always turn the laser distance measurer off
when not in use. Leaving the tool on increases
the risk of someone inadvertently staring into
the laser beam.
 Do not operate the laser distance measurer
in combustible areas such as in the presence
of flammable liquids, gasses or dust.
 Always ensure the laser beam is aimed at a
surface without reflective properties. Shiny
reflective materials are not suitable for laser
use.
 Do not disassemble the laser distance
measurer. There are no user serviceable parts
inside.
 Handle the laser distance measurer with
care. Treat it as you would any other optical
device such as a camera or binoculars.
 Avoid exposing the laser distance measurer to
shock, continuous vibration or extreme hot or
cold temperatures. Damage to the tool and/or
serious injury to the user could result.
 Do not mix old and new batteries.
1. INSTALLING BATTERIES 2. USING THE MEASURER
3
Remove battery
cover.Two AAA
batteries are pre-
installed. Remove
pull tab to activate
the batteries.
3 Replace cover.
3
2. USING THE MEASURER
3. CHANGING UNIT MEASURMENT
(continued)
Press the
home
button
for 2
seconds
to shut
off.
2s
TTI CONSUMER POWER TOOLS, INC.
P.O. Box 1288, Anderson, SC 29622 • Phone 1-800-525-2579
États-Unis, Téléphone 1-800-525-2579 • USA, Teléfono 1-800-525-2579
www.ryobitools.com
2s
2s
 Do not mix alkaline, standard or recharge-
able batteries.
 Save these instructions. Refer to them
frequently and use them to instruct others who
may use this laser level. If you loan someone
this laser distance measurer, loan them these
instructions also.
The following signal words and meanings are
intended to explain the levels of risk associated
with the product.
SYMBOL NAME
Indicates a potential
Safety Alert
personal injury hazard.
To reduce the risk
of injury, user must
Read
read and understand
Operator's
operator's manual
Manual
before using this
product.
Laser Laser radiation - avoid
Exposure direct eye exposure.
Power on, no
calibration is
needed.
0.000 FT (default)
0.000 IN
00' 00" 1/32
00" 1/16
0.000 M
To change
the unit of
measure,
0.000 FT (default)
0.000 IN hold the
00' 00" 1/32
home but-
00" 1/16
0.000 M ton for 5
seconds.

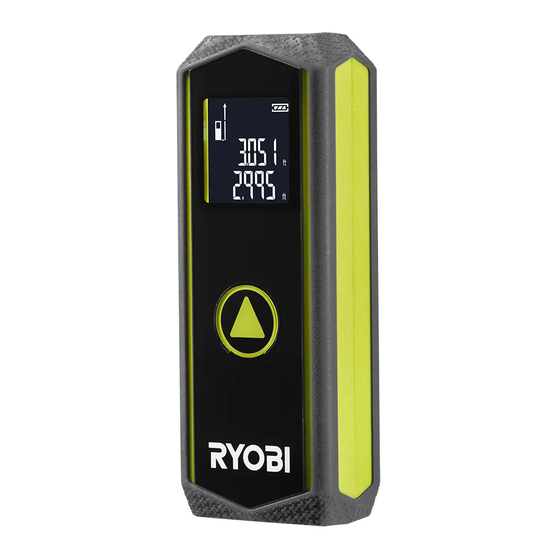

ELDM65
A
B
EXPLANATION
F
G
H
I
A - LCD screen (écran ACL, pantalla
LCD)
B - Home button (bouton maison,
botón de hogar)
C - Laser (laser, láser)
D - Receiving lens (lentille de
réception, lente receptora)
E - Battery cover (couvercle du pile,
tapa de la batería)
F - Laser indicator (indicateur de
laser, indicador de láser)
G - Measurement from rear (mesure
3 3
depuis l'arrière, medición desde
la parte trasera)
0.000 FT (default)
0.000 IN
Press the home button
00' 00" 1/32
00" 1/16
to take the measure-
0.000 M
ment. Distance is
measured from the back
of the unit.
AVOID EXPOSURE: Laser radiation is emitted from this aperture.
DANGER
AVOID EXPOSURE: Laser radiation
DANGER! LASER RADIATION: AVOID DIRECT EYE EXPOSURE.
is emitted from this aperture.
LASER RADIATION: AVOID DIRECT EYE EXPOSURE
Maximum output <1 mW Wavelength: 650nm Class II laser product
Maximum output <1 mW Wavelength: 650nm Class II laser product
Press the
home
button
to cycle
2s 2s
through
the units.
This product has a Three-year Limited Warranty.
For warranty details, go to www.ryobitools.com.
C
D
E
J
L
K
H - Previous measurement
(mesure précédente, medición
anterior)
I - Current measurement (mesure
actuelle, medida actual)
J - Battery indicator (indicateur de
pile, indicador de batería)
K - Unit of measure (unité de
mesure, unidad de medida)
L - AAA batteries (piles AAA,
baterías AAA)
Press home
button to lock in
measurement.
Only the last
measurement is
saved.
Press the
home
button for
2 seconds
to the
last unit
measure
and shut
off.
999000209
1-23-23 (REV:01)
