Ryobi Phone Works ES5001 Quick Start Manual

There you can find How-To Videos, Operator's Manuals and
Download Ryobi
WARNING:
This Quick Start Guide is not a substitute for reading the operator's manual included
with the app. To reduce the risk of injury, user must read and understand operator's
manual before using this product.

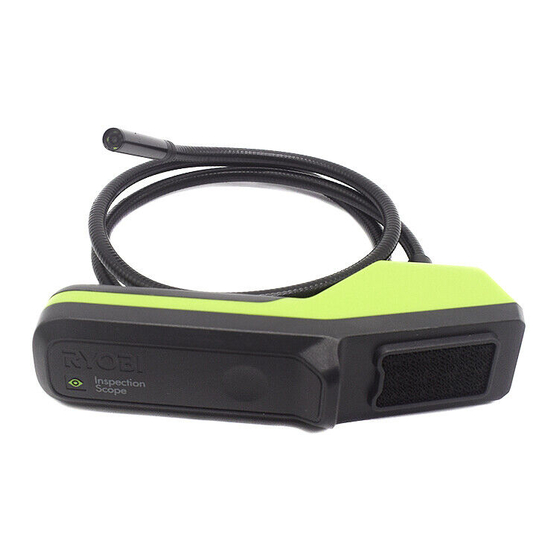

ES5001 Inspection Scope
ACTIVATING DEVICE
1. Select the Inspection Scope device icon and choose Activate Device.
2. Select your current Ryobi Nation login credentials, or if new user, Create
Account.
3. Enter the 14-digit serial number and purchase date.
GETTING STARTED
1. Remove red tab in the battery compartment to activate the batteries.
2. Press and hold the power button on top of the scope until it starts flashing
green.
3. On your phone, go into your wireless settings and ensure that wireless is turned
on.
4. When the light on the top of the scope turns solid green, the wireless network
PhoneWorksScope should appear on your phone.
5. Select PhoneWorksScope wireless network.
6. Line up the notches of the clip and the device. With your thumbs, firmly push in
the center of the clip until you hear a click.
7. Make sure the clip is securely attached to the device before proceeding.
8. Attach the clip to your phone or use up to 10 feet away.
9. Select the Inspection Scope icon on the app's home screen.
NOTE: In order for the app to work properly, select Ok when asked for access
to the microphone, camera and location. These settings can be changed in
your phone's dedicated settings.
10. The full Operator's Manual is available in Settings.
Thank you for purchasing Ryobi
If you need assistance DO NOT RETURN TO THE STORE
TM
TM
Before getting started, please visit
www.ryobitools.com/phoneworks
the most current list of compatible phones.
Phone Works
™
Please contact us at 1-877-578-6736
App from the App Store or Google Play Store
™
Phone Works
™
995000209
2-10-17 (REV:01)
™
