Ryobi EWT0003 WallTech Specification

EWT0003
WallTech™
RYOBI TECHNOLOGIES INC.
1428 Pearman Dairy Road
Anderson, SC 29625
www.ryobitools.com
Telephone: 1-800-525-2579

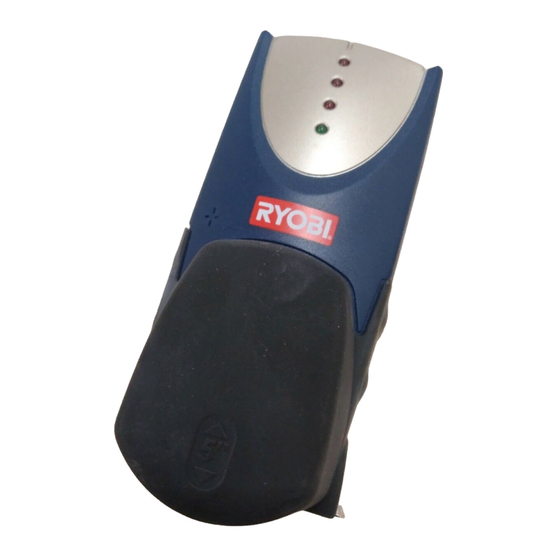

The Ryobi WallTech™ locates wood and metal studs
in walls, floors and ceilings. It features a sleek, high-
impact case.
Use Ryobi WallTech™ in normal mode for depths
up to 1-1/2 in. (38 mm) with ± 1/2 in. (12 mm) center
accuracy.
WARRANTY
This product is a consumable item. Therefore it is
warranted against defective parts and labor only and
not misuse or deterioration of the product through
normal wear and tear for a period of 2 years from
date of purchase.
WARNING: To avoid risk of electric shock,
ALWAYS turn power off when working near electric
wires. Avoid nailing, cutting or drilling in walls where
electrical or plumbing may be present. Do not permit
children to use this device. It is not a toy.
983000-345
8-03
EWT0003
WallTech™

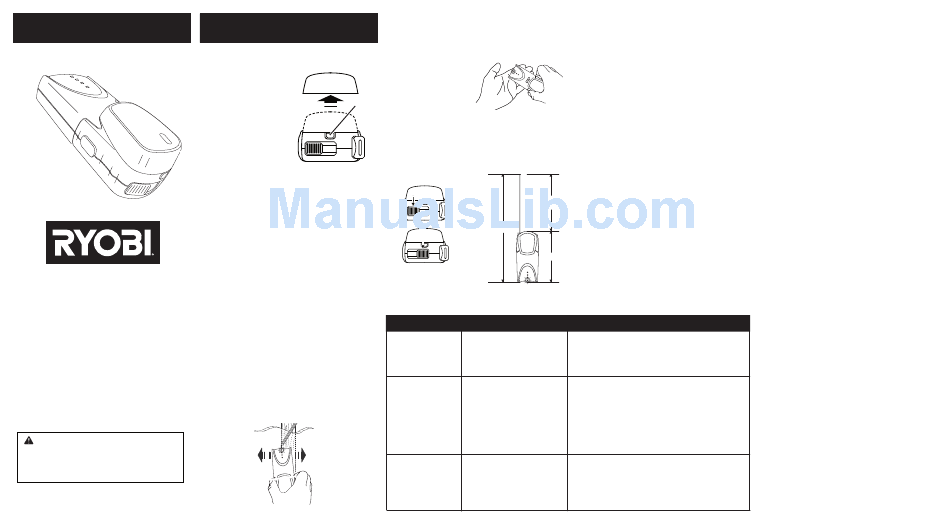

INSTALLING THE BATTERY
• Press Release Button with
Battery
thumb and lift front cover off
Compartment
to expose battery
Cover
compartment.
Release
• Connect a 9-V battery onto
Button
connector.
• Reinsert back.
Reminder:
• When the bottom green
LED blinks repeatedly, this
indicates low battery level,
replace with a new battery.
If the tool is to be stored for an
extended time, remove battery to
prevent battery deterioration.
CALIBRATION AND SCANNING
WallTech™
• With turned off, position the unit flat
against the wall.
• Press On/Off button on the side of unit and hold in
still position for approximately 4 seconds until beep
sound stops. This indicates successful calibration.
• To start scanning, continue to hold the On/Off button
and slowly slide unit horizontally across the wall,
right or left. As you begin to approach a stud, the
LED's will light successively, from bottom to top.
• When the top red LED is lit, a continuous beep is
generated. This indicates the edge of the stud. Mark
this spot.
• Continue scanning beyond the marked spot until the
LED's go out. Slide unit in reverse direction to locate
the other edge of stud.
• Mark this second spot. Middle of stud is centered
between the two marks.
NOTE: Because of the powerful scanning capability
of this tool, be sure to mark the two edges of the
stud. The two marks may indicate wider than actual
stud width, but center of stud will be between the
two marks.
VERIFYING IF THE UNIT WORKS
• Turn WallTech™ on in the
air. If the LEDs light when
you bring your hand up to
the back, then the unit is
working properly.
ADDITIONAL FEATURE
• The Ryobi WallTech™
includes an 8 ft. tape
measure with tape lock.
FREE
5"
10"
LOCK
5"
• When measuring from
bottom of unit, add 5 in. to
length measured.
Situations Possible Causes
• No studs in that area.
No indications.
• You accidently calibrated
over a stud.
• Thickness of dry wall over
scan depth
• You accidently calibrated
Lights start
over a stud.
blinking and unit
• Scan began on dense part
beeps repeatedly
of wall or over stud.
• Unit not flat against wall.
• Unit was rocked or lifted
during scan.
• Detect other objects
besides studs.
Indications in too
• Electrical wiring and metal/
many places.
plastic pipes may be near
or touching back surface of
wall
WORKING WITH DIFFERENT
MATERIALS
The WallTech™ is designed for use on dry interior
walls only. Three primary factors can affect sensing
depth: Thickness, density and moisture content.
The WallTech™ is not designed to use on materials
with inconsistent density such as:
Ceramic floor tile
Carpeting and padding
Wallpaper with metallic fibers
Freshly painted walls, not completely dry
Lath and plaster
OPERATING NOTES
Depending on the proximity of electrical wiring or
pipes to the wall surface, the WallTech™ may detect
them in the same manner as studs. Caution should
always be used when nailing, cutting or drilling in
walls, floors and ceilings that may contain these items.
To avoid plumbing, electrical, etc., remember that
studs or joists are normally spaced 16" (406 mm) or
24" (610 mm) apart and are 1-1/2" (38 mm) in width.
Anything closer together or a different width may not
be a stud, joist or firebreak. Always turn off the power
when working near electrical wires.
Solutions
• Move several inches to the left or right and start
again.
• Move several inches to the left or right and start
calibration process again.
• On rough surfaces, place piece of cardboard on
wall, scanning through it to help slide unit more
smoothly.
• Always hold WallTech™ parallel to stud or joist and
move across it.
• Because studs are normally spaced 16 in. (406mm)
or 24 in. (610mm) apart and are 1-1/2 in. (38mm)
wide, beware of anything closer together or of a
different width.
85-109-S01
