In compliance with the ADA (American Disabilities Act) there must be clear floor space of at least
30 by 48 inches and be served by an accessible route for at least one of each type of exercise
equipment. If the clear space is enclosed on three sides (e.g., by walls or the equipment itself), the
clear space must be 36 by 48 inches.
All other machines must have a clear floor space of 23" for all access point on the machine, unless
shown in the Owner's Manual.
The dimensions stated in the assembly instructions of this manual include the maximum foot print (in
use) dimensions.
Area is not in the vicinity of high humidity, such as in the vicinity of a steam room, sauna, indoor
•
pool or outdoors. This unit is designed to function normally in an environment with a relative
humidity range of 30% to 75%.
Exposure to extensive water vapor, chlorine and/or bromine could adversely affect the electronics as
well as other parts of the unit.
Area maintains an ambient temperature range of 50° F (10° C) to 104° F (40° C) degrees.
•

Tools Required

• 7/32" Allen wrench
• 1/8" Allen wrench
• Medium weight automotive engine oil
• Torque wrench
• 3/4" Wrench

Assembly Procedure

Two people will be required for this procedure.
Read and understand all instructions thoroughly before assembling this unit. Check all items
carefully. If there is damage, see the Customer Service section of this manual for proper procedure to
return, replace, or reorder parts.

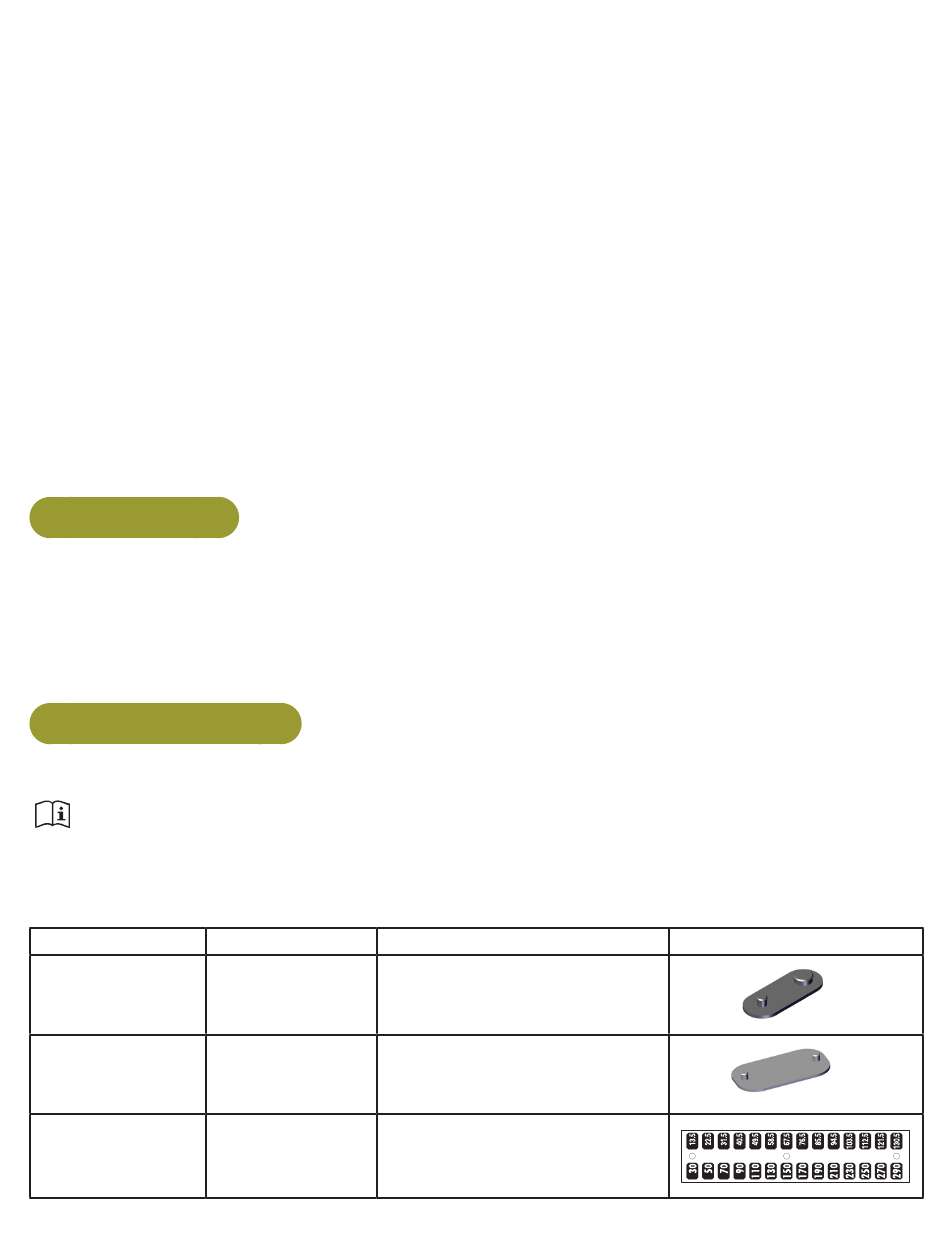

Verify parts list shown below
Qty
4
1
1
Cybex Owner's Manual
Part Number
12090-322
12000-345
12000-560
Description
Foot Pad
Foot Pad
Decal, Weight Plate
(30-290)
9
Diagram
NOTES:
1. RIGHT HAND SIDE - 40 POINT HELVETICA BOLD.
HORIZONTAL SCALE 80%.
MATERIAL: EXCEPT AS NOTED
TRACKING -50.
DIMENSIONS REMOVE ALL BURRS
IN INCHES BREAK SHARP EDGES
.005/.010 R
2. LEFT HAND SIDE - 48 POI NT FUTURA CONDENSED BOLD. THIS NOTE REFERS TO ALL PLASTIC PARTS GENERAL
AND ASSEMBLIES CONTAINING PLASTICS. TOLERANCES: SURFACE FINISH
RAW MATERIAL AND COMPONENTS ON INDICATED PER
2 DECIMALS ± .03
SUB-ASSEMBLIES AND ASSEMBLIES MUST ANSI B46.1-1985
3 DECIMALS ± .015
COMPLY WITH EUROPEAN DIRECTIVE
RoHS 2002/95/EC. ANGLES ± 1° REMOVE CARBURIZATION
AND SCALE FROM LASER
FEATURES SHOWN AND PLASMA CUT EDGES
FINISH:
PERPENDICULAR OR
GENERAL 125
PARALLEL SHALL BE
SO WITHIN ± 1° MACHINING
OWATONNA
TITLE:
DECAL, WT PLATE (30 - 290)
DWG. BY DATE TECH. PUBS. APPR. DATE
REL 9/14/05 BB 9/16/05
CHECKED BY DATE MFG. APPR. DATE
SIZE SCALE SHEET DWG. NO. REV.
B 1:1 2 2 12000-560
OF
