Move to machine to the desired location
1. Remove the four shipping cones using a 3/4" socket or wrench.
2. Attach foot pads to each foot of frame.
Securely anchor machine to the floor
Cybex strongly recommends to maximize stability, equipment must be secured to a solid level
surface.
WARNING: Anchoring equipment:
Cybex is not responsible for the actual anchoring of equipment. Consult with a
•
professional contractor.
Use fasteners having a minimum of 500 lbs. tensile capacity (3/8'' grade 2 bolts or
•
better).
If legs/frame does not contact surface, DO NOT pull down with anchors. Shim
•
any leg or frame not in contact with surface using flat washers.
Install weight plates
1. Install individual weight plates one at at time.

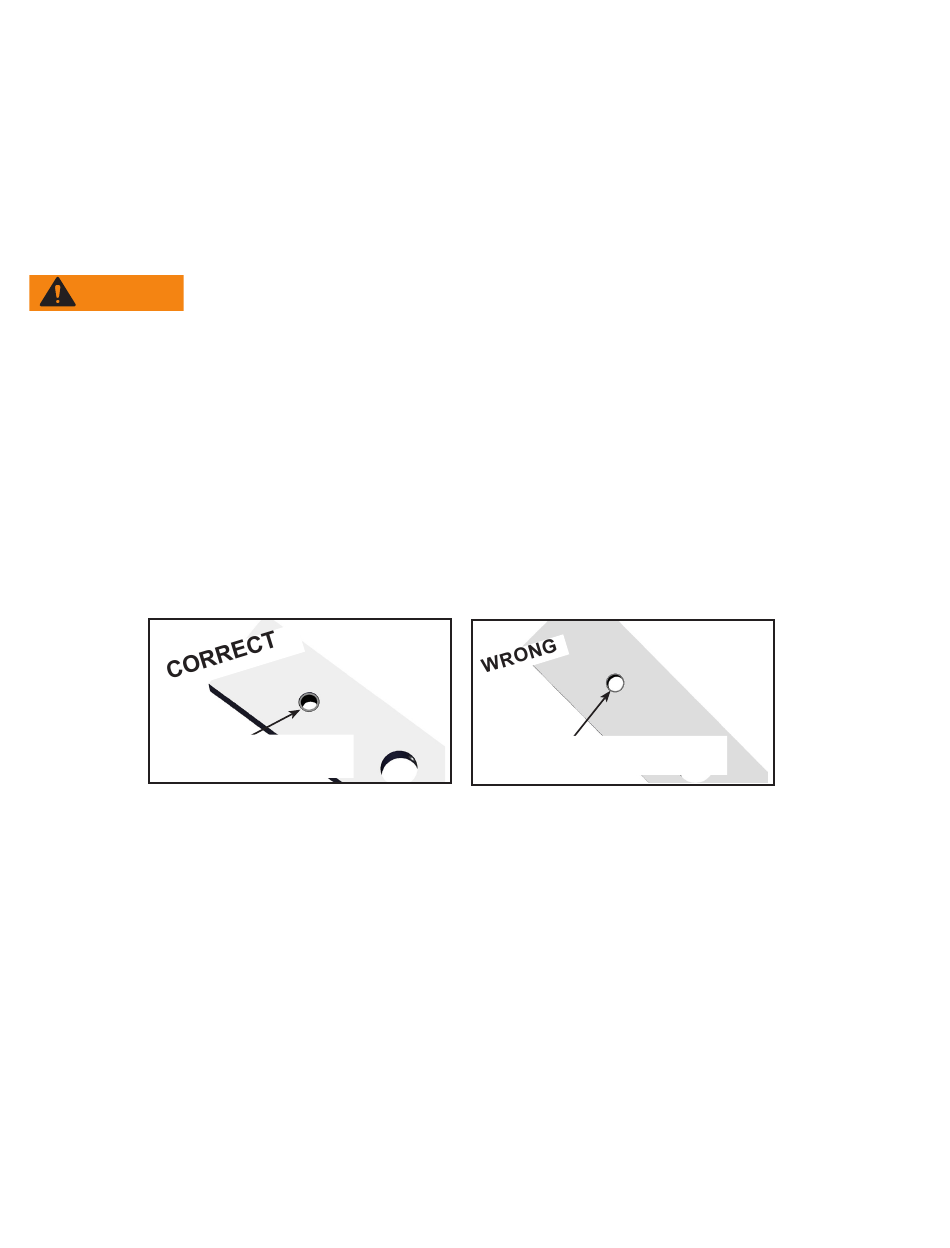

2. Position each weight plate so wide edges of bushings face upward and narrow edges of
bushings face downward.
Wide bushing
edge faces upward
3. Install lifting post.
4. Place springs and guide rod caps on guide rods.
5. Compress guide rod caps and align guide rod caps with weight frame holes and secure in
place.
6. Guide rod caps must snap or lock into weight frame holes.
Belt routing
1. Verify belt is routed through top of pulley bracket and then route end of belt down to the top
weight.
2. Lift top weight and verify that the position of the belt clamp (on the top weight) is aligned
properly with the top pulley bracket.
Cybex Owner's Manual
The narrow bushing edge
must face downward.
