This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also
contains information that will enable you to obtain replacement parts or accessory items when needed. Keep
it with your other important papers.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This wood burning fireplace complies with UL127
CAN/ULC-S610-M87 standard as a FACTORY
BUILT FIREPLACE.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to
ANSI Z21.60 or Z21.84 standards or for use with a vent-free gas log heater approved to ANSI Z21.11.2 standard .
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before
installation to determine the need to obtain a permit.
These models meet the EPA Wood Burning Fireplace Program Phase 2 emission level. NOTE: To ensure proper
fireplace operation, the catalyst should be replaced at a minimum of 3 years and a maximum of 5 years.
This installation manual will enable you to obtain a safe, efficient and dependable installation of your fireplace
system. Please read and understand these instructions before beginning your installation.
Do not alter or modify the fireplace or its components under any circumstances. Any modification or alteration of
the fireplace system, including but not limited to the fireplace, chimney components and accessories, may void the
warranty, listings and approvals of this system and could result in an unsafe and potentially dangerous installation.
IMPORTANT! TO ASSURE PROPER ALIGNMENT OF GLASS DOORS: INSTALL THIS FIREPLACE IN A SQUARE
AND PLUMB CONDITION, USING SHIMS AS NECESSARY AT SIDES AND/OR BOTTOM.
Installation and Operation Instructions

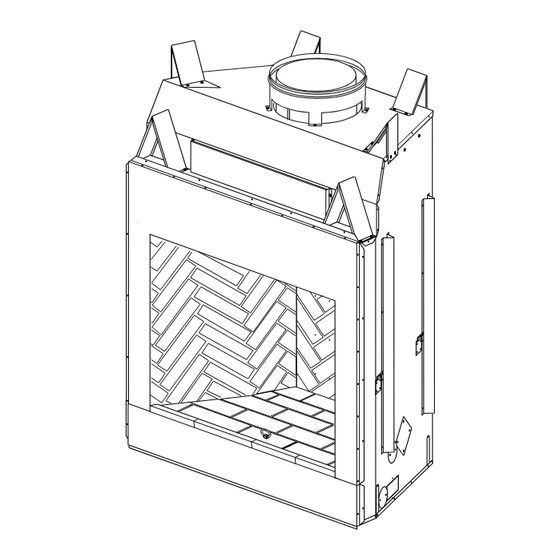

Superior® Indoor/Outdoor Wood Burning
Fireplace with Catalyst
PFS
Models
®
C
US
REPORT NO. F09-095
SAVE THIS BOOK
Installateur : Laissez cette notice avec l'appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
Ce foyer au bois est conforme aux UL 127 CAN/ULC-
S610-M87 norme comme une USINE CONSTRUITE
CHEMINÉE.
POUR LE CANADA: L'autorité compétente (comme le
service municipal du bâtiment, les pompiers, etc.) doit
être contacté avant l'installation afin de déterminer la
nécessité d'obtenir un permis.
WRE6842RS
WRE6842RH
WRE6850RS
WRE6850RH
WRE6842IS
WRE6842IH
WRE6850IS
WRE6850IH
Advertisement
Table of Contents
Related Manuals for IHP Superior WRE6842RS
Summary of Contents for IHP Superior WRE6842RS
- Page 1 Installation and Operation Instructions Superior® Indoor/Outdoor Wood Burning Fireplace with Catalyst Models ® P127011-01 WRE6842RS WRE6842IS P/N 127011-01 Rev. B 10/2015 REPORT NO. F09-095 WRE6842RH WRE6842IH WRE6850RS WRE6850IS WRE6850RH WRE6850IH SAVE THIS BOOK This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains information that will enable you to obtain replacement parts or accessory items when needed.
-
Page 2: Table Of Contents
• Never leave children unattended when a fire is fire hazard. burning in the fireplace. • The IHP warranty will be voided by and IHP disclaims any re- sponsibility for the following actions. WARNING: Use solid wood or processed solid fuel a. - Page 3 SAFETY Continued Overfiring of a fireplace is a condition where excessive WARNING: BURNING IMPROPER FUEL (I.E. CHAR- temperatures are reached, beyond the design capabilities COAL) CAN RESULT IN CARBON MONOXIDE POISON- of the appliance. The damage that occurs from overfiring ING, WHICH MAY LEAD TO DEATH! is not covered under the manufacturer’s limited warranty.
-
Page 4: Specifications
SPECIFICATIONS Continued 42" MODEL " " " " 23" " (Ref.) 29" " " " 42" HEARTH " 5/8" OUTSIDE 11" ACCESS 58" 67" 61" GAS LINE 49" ACCESS 30" " " 7" " " 42" " 1" 13" " 17"... - Page 5 SPECIFICATIONS Continued 50" MODEL " 24" " " 23" " (Ref.) " " " " " 50" HEARTH OUTSIDE 11" ACCESS 67" GAS LINE 58" 49" ACCESS 61" 30" " " 7" " 1" " 50" " 59" 13" 17" Figure 2 - 50"...
-
Page 6: Fireplace Installation
FIREPLACE INSTALLATION SELECTING LOCATION 5. Before securing fireplace to prepared framing, ember protector (provided) must be placed between hearth extension (not sup- To determine the safest and most efficient location for the fireplace, plied) and under bottom front edge of fireplace to protect against you must take into consideration the following guidelines: glowing embers falling through. - Page 7 FIREPLACE INSTALLATION Continued HEARTH EXTENSION MANTELS A hearth extension projecting a minimum of 20" in front of and a A mantel may be installed if desired (see Figure 6). Woodwork such minimum of 12" beyond each side of fireplace opening is required as wood trims, mantels or any other combustible material projecting to protect combustible floor construction in front of fireplace.
-
Page 8: Venting Installation
The outer pipe section can then be installed over 5 the flue pipe section with the hemmed The IHP chimney system consists of 12", 18", 24", 36" and 48" snap- end up. Press down on each pipe section until the lances securely lock, double-wall pipe segments, planned for maximum adaptability engage the hem on the fireplace starter. - Page 9 VENTING INSTALLATION Continued USING ELBOW OFFSETS (30E-12DM) OFFSET RISE CHIMNEY LENGTH 12" 18" 24" 36" 48" 1. To achieve desired offset, you may install combinations of 12", " " ELBOW SET ONLY 18", 24", 36" and 48" length of double wall pipe (see offset chart "...
- Page 10 VENTING INSTALLATION Continued Return Return Elbow Elbow Return Offset Offset Elbow Elbow Elbow 6' Max. 6' Max. Ceiling Support Pipe Return 12S-12DM Return 6' Max. Elbow Elbow 6' Max. Offset Offset Elbow 6' Max. Elbow 6' Max. Offset Elbow Figure 11 - Typical Offset Terminations FIRESTOP SPACERS (FS-10) Firestop spacers are required at each point where the chimney Screws or Staples...
- Page 11 VENTING INSTALLATION Continued PENETRATING ROOF FLASHING INSTALLATION (V6F-10DM OR V12F-10DM) To maintain a 2" clearance to the pipe on a roof with a pitch, a rect- Determine the flashing to be used with the roof opening chart. Slide angular opening must be cut. flashing over pipe until base is flat against roof.
- Page 12 VENTING INSTALLATION Continued Terminations/Spark Arrestor 10 FOOT RULE The fireplace system must be terminated with the listed round top or All flue gas outlet chimney terminations must extend a minimum of chase terminations. In any case, refer to the installation instructions 3 feet in height above the highest point where it passes through the supplied with the termination.
-
Page 13: Firebrick Wall Installation
FIREBRICK WALL INSTALLATION 2. Install the left and right firebrick walls. There is a bracket with WARNING 2 tabs on the bottom of each firebrick wall. Angle the wall into the fireplace opening and into the slots on the side of the hearth LIFTING HAZARD (Figure 21), then tilt the top of the panel toward the firebox sur- round. - Page 14 FIREBRICK WALL INSTALLATION Continued 4. Install the rear firebrick wall last. Place the wall face side down INSTALLING SCREEN on the hearth with the bottom of the wall toward the rear of the 1. Slide round end of screen rod into rings at top of screen. Attach one firebox and the top toward the front of the fireplace.
-
Page 15: Optional Gas Line Installation
OPTIONAL GAS LINE INSTALLATION Side Gas line hook up should be done by your supplier or a qualified Outside of Firebrick service person. Fireplace Finished Note: Before you proceed, make sure your gas supply is turned off. Incoming Side Use only a 1/2" black iron pipe and appropriate fittings. 1/2"... -
Page 16: Purefire Hood Installation
PUREFIRE HOOD INSTALLATION AIR DEFLECTOR AND GLASS DOOR INSTALLATION Continued The PureFire hood supplied with this fireplace is packaged in a separate box and placed in the firebox during shipping. Top Door Remove hood from box. Locate brackets (quantity 2) and screws Frame (quantity 4) for hood installation in the hardware bag. -
Page 17: Operation And Maintenance Guidelines
AIR DEFLECTOR AND GLASS DOOR INSTALLATION OPERATION AND MAINTENANCE GUIDELINES Continued Continued WARNING: Fireplaces equipped with glass doors Spring Fold Door Clip and Slide should be operated only with doors fully opened or Top Pins doors fully closed. Doors, if left partly open, may draw Insert Pin Into Track gas and flame out of the fireplace opening creating... -
Page 18: Purefire Emissions Control System
Call in a safe place if needed for permits or building inspection. Prior to your IHP distributor or dealer for replacement parts. beginning installation, contact your local building official to determine the need to obtain a permit. -
Page 19: Technical Service
PureFire Emissions Control System are limited to the terms set forth below. REPLACEMENT PARTS IHP warrants to the consumer who purchases a new solid See Pages 20 TO 23 for a complete replacement parts list. Use only fuel burning fireplace containing a PureFire Emissions parts supplied from the manufacturer. -
Page 20: Parts
PARTS MODELS 42", AND 50" MODEL CATALOG NO. WRE6842RS F0421 WRE6842IS F0422 WRE6842RH F0423 WRE6842IH F0424 WRE6850RS F0425 WRE6850IS F0426 WRE6850RH F0427 WRE6850IH F0428 16/17 Superiorfireplaces.US.com 127011-01B... - Page 21 This list contains replaceable parts used in your firebox. When ordering parts, follow the instructions listed under Replacement Parts on page 19 of this manual. WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved by IHP. Use of non-approved parts can result in poor performance and safety hazards.
- Page 22 PARTS MODEL CATALOG NO. WRE6842RS F0421 WRE6842IS F0422 WRE6842RH F0423 WRE6842IH F0424 WRE6850RS F0425 WRE6850IS F0426 WRE6850RH F0427 WRE6850IH F0428 Superiorfireplaces.US.com 127011-01B...
- Page 23 This list contains replaceable parts used in your firebox. When ordering parts, follow the instructions listed under Replacement Parts on page 19 of this manual. WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved by IHP. Use of non-approved parts can result in poor performance and safety hazards.
-
Page 24: Accessories
ACCESSORIES BI-FOLD GLASS DOORS CAT NO. MODEL DESCRIPTION F1014 BDMO42E Glass door, 42" ebony F1015 BDMO42G Glass door, 42" pewter F1016 BDMO42C Glass door, 42" oiled bronze F1020 BDMO50E Glass door, 50" ebony F1021 BDMO50G Glass door, 50" pewter F1022 BDMO50C Glass door, 50"... - Page 25 ACCESSORIES Continued EMBER PROTECTOR J6906 Ember Protector EP36 ROOF FLASHING F0942 V6F-10DM Roof flashing 0 to 6/12 pitch F0943 V12F-10DM Roof flashing 6/12 to 12/12 pitch SQUARE CHASE-TOP TERMINATION F0948 STL-12D Square top termination with slip section Square top termination with slip section (pre-painted F0949 STL-12DMP black)
-
Page 26: Important Notices
AND CEILING/ROOF MUST BE MAINTAINED. locally fabricated shroud may be F0953 12-12HT 12" Section Double Wall Pipe used with IHP Shroud Leg Spacer WARNING: DO NOT INSTALL IN SLEEPING F0954 18-12HT 18" Section Double Wall Pipe Kit (SLK) in accordance with ROOM OF MOBILE HOMES. -
Page 27: Warranty
In order for any claim under this warranty to be valid, you must contact the IHP dealer/distributor from which you purchased the product. If you cannot locate the dealer/ distributor, then you must notify IHP in writing. IHP must be notifi ed of the claimed defect in writing within 90 days of the date of failure. Notices should be directed to the IHP Warranty Department at 1508 Elm Hill Pike, Suite 108;... - Page 28 Dealer's Phone Number Keep receipt for warranty verification IHP reserves the right to make changes at any time, without notice, in design, materials, specifica- tions, prices and also to discontinue colors, styles and products. Consult your local distributor for fireplace code information.
