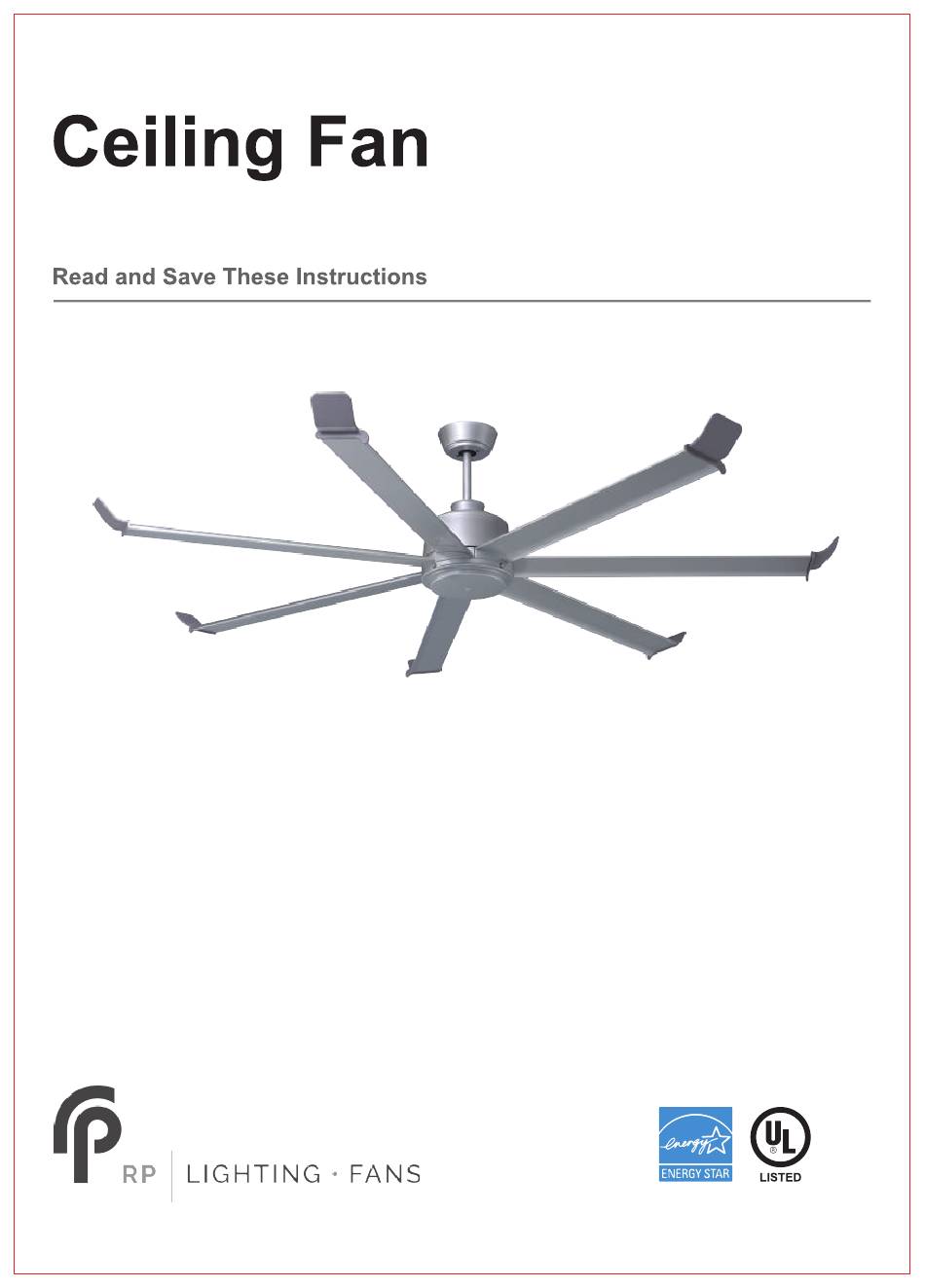

- Page 1 Installation Guide For Models: 1070W,1080W Net Weight Of 1070WFan: 30.5lbs (13.85kgs) Net Weight Of 1080WFan: 35.3lbs (16.05kgs)
-
Page 2: Table Of Contents
Table of Contents SAFETY RULES TOOLS AND MATERIALS REQUIRED PACKAGE CONTENTS MOUNTING OPTIONS HANGER BRACKET INSTALLATION FAN ASSEMBLY HANGING THE FAN MOTOR ASSEMBLY MAKING ELECTRICAL CONNECTIONS CANOPY ASSEMBLY ATTACHING THE FAN BLADES INSTALLING THE BOTTOM CAP INSTALLING THE LIGHT KIT (optional) 11.12 INSTALLING WALL CONTROL &... -
Page 3: Safety Rules
Safety Rules Do not use water or detergents when cleaning the fan or fan blades. A dry soft cloth or lightly dampened cloth will be suitable for most cleaning. OUTDOOR USE- Suitable for use in wet locations when installed in a GFCI protected branch circuit. lbs(32kgs) ft.(3M) -
Page 4: Tools And Materials Required
Tools & Materials Required Ladder Phillips Screwdriver Pliers Adjustable wrench Wire Strippers Package Contents Parts a. Blade x7 pieces b. Blade Holder c. Hanger Bracket d. Waterproof Cover e. Canopy f. 8” Downrod with Ball g. 24“ Downrod h. Motor Coupling Cover i. - Page 5 Unpacking Fan Parts Guide- Model Number 1070W, 1080W SPEED REVERSAL I O II FAN ON FAN & LIGHT ON *Fan blade bracket screws found that were pre-a�ached to the fan blade bracket.
-
Page 6: Mounting Options
Mounting Options Fig.1 Ceiling joists Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. Outlet box To reduce the risk of fire, electric shock, or personal Injury, mount to outlet box marked "acceptable for fan support of 70 lbs (32 kgs) "... -
Page 7: Hanger Bracket Installation
Hanger Bracket Installation Supply wires 120VAC 60Hz Outlet box Remember to turn off the power. Follow the steps below to hang your fan properly. NOTE: This ceiling fan is supplied with the hanging assemblies; the standard ceiling installation using the downrod with ball and hanger bracket mounting installation. -
Page 8: Hanging The Fan Motor Assembly
Place the coupling cover over the downrod assembly. Place canopy over downrod. Replace the hanging ball on downrod, Safety Cable insert the lock pin through downrod, and tighten the set screw in the hanging ball Cross Pin against downrod. WARNING: Failure to tighten set screw on set screw the hanging ball completely could result in Downrod... -
Page 9: Making Electrical Connections
Making Electrical Connections WARNING: Turn off circuit breakers to the INPUT VOLT. 120V current fixture from breaker panel and be sure the switch is turned off. BLACK(TO AC L) If you are unfamiliar with electrical wiring or if GREEN GROUND WHITE (TO AC N) the house wires are different colors than those DC Fan... -
Page 10: Canopy Assembly
Canopy Assembly After connecting the wires, place the DC fan driver in hanger bracket as shown, turn the leads upward and separate wire connections and put neatly inside of the outlet box. Waterproof Cover View after installation Locate the two screws on the underside of the hanger bracket. -
Page 11: Attaching The Fan Blades
Remove rubber motor stoppers from moter and waterproof stopper from the fitter plate before attaching the fan blade assembly. Insert the fan blade into blade holder and Blade Screws secure it with 3 blade screws and washers. with Washers Repeat this process for the remaining blades. -
Page 12: Installing The Light Kit (Optional)
Installing the Light Kit (optional) NOTE: Make sure power is off at the electrical panel box before attempting installation of the light kit. Remove the fan bottom cap by unscrewing 3 attachment screws (rubber washer + flat washer + screw) then remove a small plug from the center hole of the cap. -
Page 13: Installing Wall Control & Operation
Installing Wall Control NOTE: Make sure power is off at the electrical panel box and be sure the switch is turned OFF position before attempting installation of wall control. Remove the existing wall switch, making wires connection with provided wire nuts as shown in the diagram. - Page 14 Reverse Switch (Forward / Reverse) This button controls fan forward or reverse direction. NOTE:To operate the reverse function on this fan, press the “Reversal” button while the fan is running. Warm Weather (Forward) - A downward airflow creates a cooling effect, as shown in Fig.
-
Page 15: Troubleshooting
Troubleshooting WARNING: Failure to disconnect power supply prior to troubleshooting any wiring issues may result in serious injury. Problem Solutions - Check circuit fuses or breakers. Fan will not start. - Check line wire connections to the fan and switch wire connections in the switch housing. Fan sounds noisy. - Page 16 RP.08152023...
