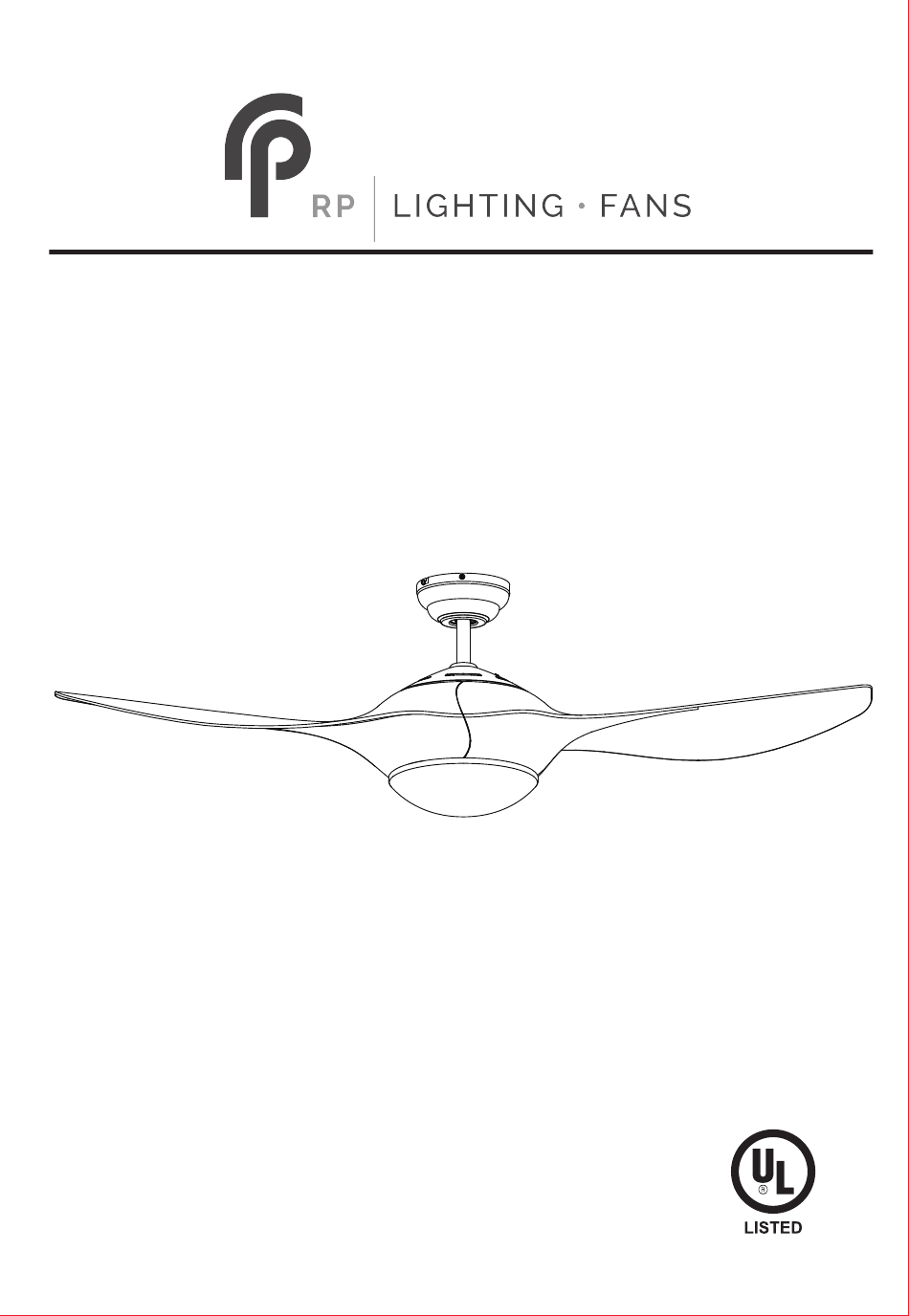

- Page 1 Ceiling Fan Owner's Manual Read and Save These Instructions MODEL: 1076 RP LIGHTING www.rplighting.com 4931 Paseo Del Norte NE Albuquerque, NM 87113 1-800.937.6925...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Tools and Materials Required..................Unpacking Your Fan ...................... Safety Rules........................Mounting Options......................Attaching the Fan Blades ....................Hanging the Fan......................Making Electrical Connections..................Finishing the Installation....................Install Led light kit ......................7 Operating Your Fan ..................... Care of Your Fan...................... -
Page 3: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Phillips Screwdriver Blade Screwdriver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Blade set Hanger bracket Canopy Downrod Coupling cover Fan motor assembly Led light kit Glass... -
Page 4: Safety Rules
3. SAFETY RULES To reduce the risk of electric shock, ensure To avoid personal injury or damage to the fan electricity has been turned off at the circuit and other items, be cautious when working breaker or fuse box before beginning. around or cleaning the fan. -
Page 5: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. -
Page 6: Attaching The Fan Blades
6 pcs screws on the upper bracket Step 1. Remove the 10 pcs screws on the blade bracket. (upper bracket and lower bracket). (Fig.5.1) Upper bracket Lower bracket Figure 5.1 4 pcs screws on the lower bracket Step 2. Align the installation holes A1 to A1, A2 to A2, A3 to A3;... -
Page 7: Hanging The Fan
6. HANGING THE FAN REMEMBER to turn off the power. Follow the steps below to hang your fan properly. NOTE: This ceiling fan is supplied with two types of hanging assemblies; the standard ceiling installation using the downrod with ball and socket mounting and the "close-to-ceiling"... -
Page 8: Making Electrical Connections
7. MAKE ELECTRICAL CONNECTIONS Remember to disconnect the power. Follow the steps below to connect the fan to your household wiring. Use the wire connecting nuts supplied with your fan. Secure the connectors with electrical tape. Make sure there are no loose strands or connections. -
Page 9: Finishing The Installation
8. FINISHING THE INSTALLATION Outlet box Screws Hanger Receiver bracket Canopy Coupling cover Reverse switch Figure 11 9. INSTALL THE LIGHT KIT Step 1. Connect the male plug on switch housing to female plug in LED light kit. Step 2. Remove the 3 screws on fitter plate and fix the LED light kit on using these screws. -
Page 10: Operating Your Fan
10. OPERATING YOUR FAN 1. 4-speed remote control, HI - High speed , MED- Med speed, LOW - Low speed, L.LOW - Lowest speed, OFF - Fan off. 2. Light on/off and dimmer function. Figure 13 Figure 14... -
Page 11: Care Of Your Fan
11. CARE OF YOUR FAN Here are some suggestions to help you maintain your fan 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2.
