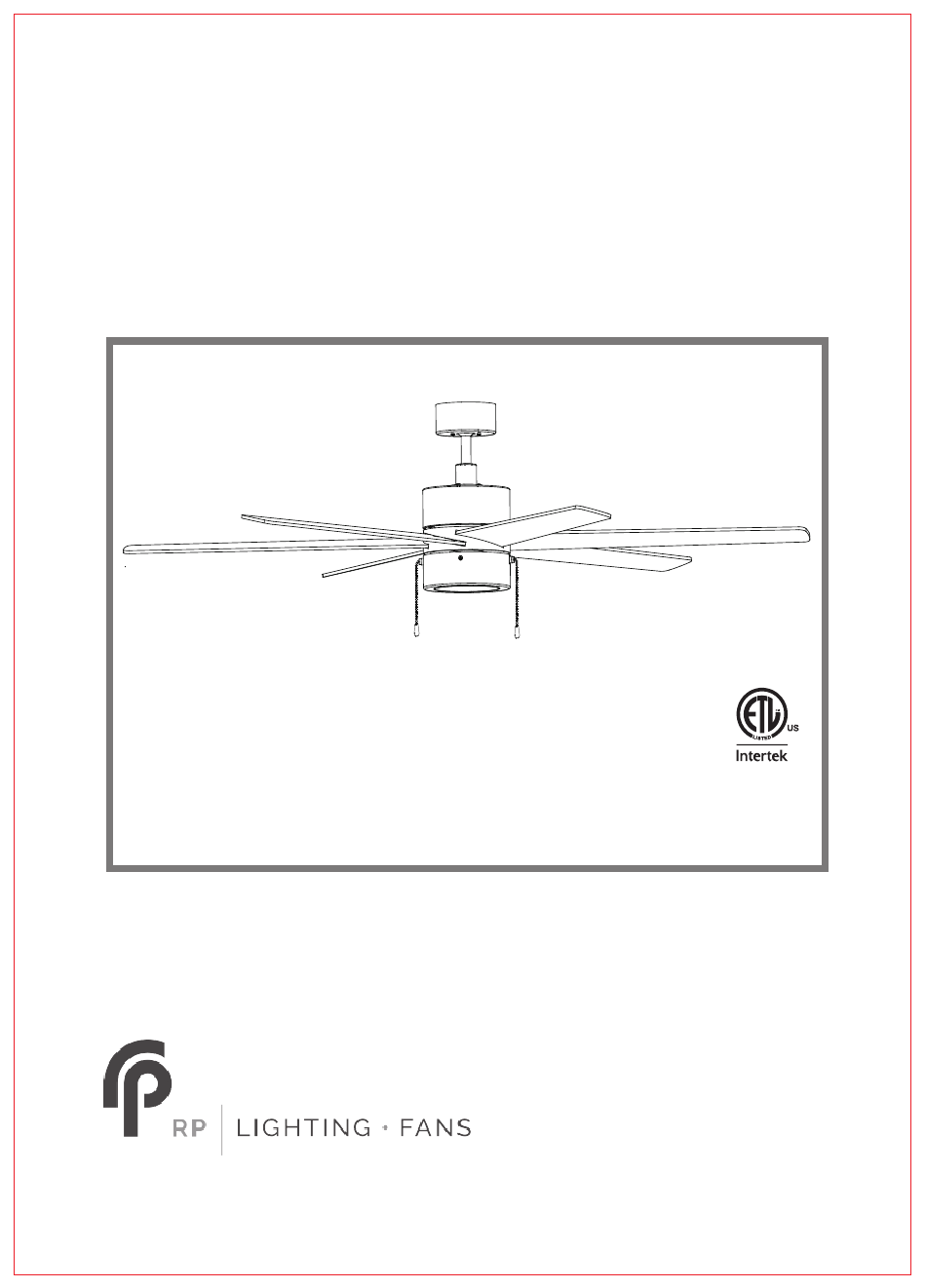

- Page 1 Ceiling Fan INSTALLATION MANUAL READ AND SAVE THESE INSTRUCTIONS Model No. 1060 net weight: 6.5 kgs(14.3 lbs) Model No. 1060LED net weight: 6.8 kgs(14.96 lbs) Models: 1060, 1060LED...
- Page 2 / UNPACKING FAN...
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS. Read all instructions and safety information carefully before installing your fan and save this manual. 2. All electrical connections must be in accordance with the National Electrical Code ANSI/NFPA70 and local electrical code. If you are unfamiliar with proper electrical wiring connections, contact and obtain the service of a qualified licensed electrician. - Page 4 Parts List Model No. 1060 8. Hardware bag included:...
- Page 5 Parts List Model No. 1060LED 8. Hardware bag included:...
- Page 8 WARNING: Carefully lift the fan motor assembly onto the mounting bracket that was attached to the outlet box. Turn the entire assembly until the check tab(stopper of bracket) dropped into the notch of the downrod ball and seats firmly. Note: The entire fan motor assembly should not rotate when seated properly.
- Page 9 NOTE: The wiring diagram includes the light kit wiring. The light and light switch wiring is omitted when no light kit is used with the fan.
- Page 11 Locate 2 screws on the underside of the mounting bracket. Attach canopy to the mounting bracket by placing screws into the keyhole slots. Rotate the canopy so that the mounting screws slide into the narrow ends of the keyhole slots. Tighten the screws firmly. Locate blade attachment screws and washers in the hardware pack.
- Page 13 chain(s) located in the switch housing. SUMMER WINTER DOWN DRAFT UPDRAFT Clockwise Rotation Counter Clockwise Rotation...
- Page 16 RP-12162021...
